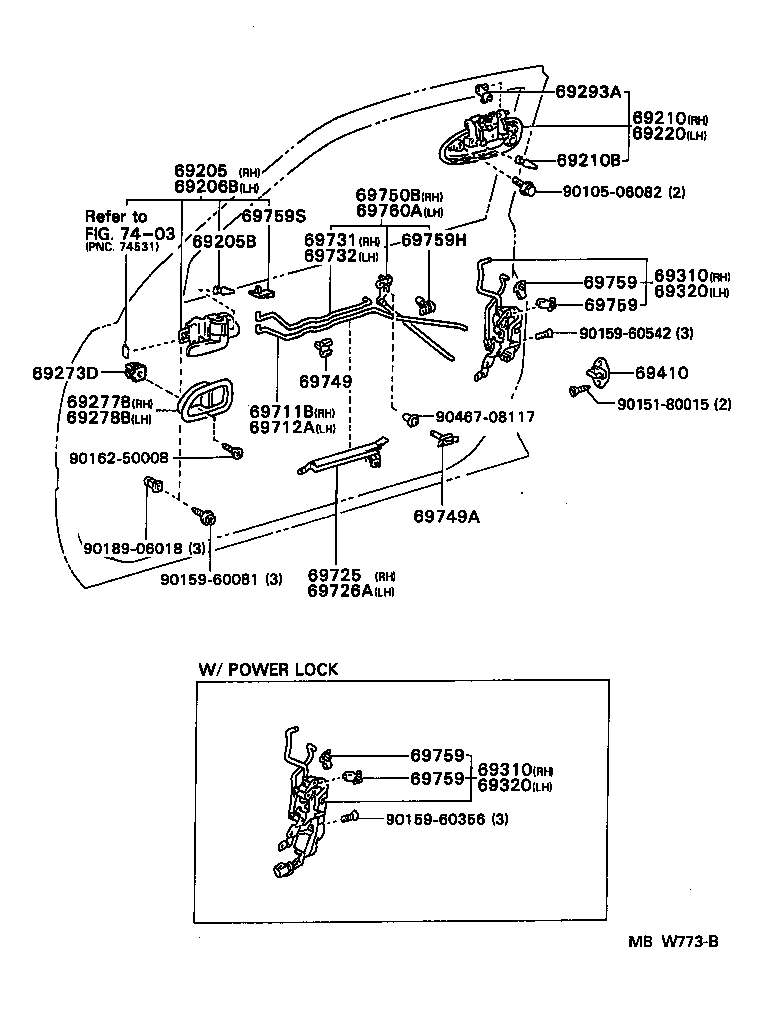

EE100L-AGMDSW (1992)
Toyota Corolla Hb/Lb
(9205- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12150J0 |
AE101,CE100,EE10#..3D..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 69205-12150B0 |
AE10#,CE100,EE10#..3D SHADOW GRAY,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AE10#,CE100,EE10#..3D |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12150B0 |
AE10#,CE100,EE10#..3D SHADOW GRAY,TRIM1# |
1 | ||
| 69206-12150J0 |
AE101,CE100,EE10#..3D..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12160 |
AE101,CE100,EE10# |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
AE10#,CE100,EE10# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12160 |
AE101,CE100,EE10# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-12080B0 |
AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI) SHDOW GRAY,TRIM1# |
1 | ||
| 69277-12080J0 |
AE101,CE100,EE10#..3D..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-12080J0 |
AE101,CE100,EE10#..3D..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 69278-12080B0 |
AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AE10#,CE100,EE10# RH |
1 | ||
| 69293-12040 |
AE10#,CE100,EE10# LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-12250 |
AE10#,CE100,EE10#..3D..LHD..(3FC,5F)..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69310-12480 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69030-12250 |
AE10#,CE100,EE10#..3D..LHD..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-12250 |
AE10#,CE100,EE10#..3D..LHD..(3FC,5F)..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69310-12480 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69030-12250 |
AE10#,CE100,EE10#..3D..LHD..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-12250 |
AE10#,CE100,EE10#..3D..LHD..(3FC,5F)..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69320-12490 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69040-12250 |
AE10#,CE100,EE10#..3D..LHD..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-12250 |
AE10#,CE100,EE10#..3D..LHD..(3FC,5F)..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69320-12490 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69040-12250 |
AE10#,CE100,EE10#..3D..LHD..(GTI,SI,XL,XLI) W(*EL) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE10#,CE100,EE10# |
2 | ||
| 69410-20070 |
AE10#,CE100,EE10# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12150 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12160 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-12010 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH | ||||
| 69726-12010 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-12050 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-12050 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12040 |
AE10#,CE100,EE10#..3D |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-12060 |
AE10#,CE100,EE10#..3D |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-12050 |
AE10#,CE100,EE10#..3D |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE10#,CE100,EE10#..3D YELLOW |
2 | ||
| 69759-24010 |
AE10#,CE100,EE10# NATURAL |
1 | ||
| 69759-24020 |
AE10#,CE100,EE10# BLUE |
1 | ||
| 69759-20050 |
AE10#,CE100,EE10#..3D BROWN |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE10#,CE100,EE10#..3D YELLOW |
2 | ||
| 69759-24010 |
AE10#,CE100,EE10# NATURAL |
1 | ||
| 69759-24020 |
AE10#,CE100,EE10# BLUE |
1 | ||
| 69759-20050 |
AE10#,CE100,EE10#..3D BROWN |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE10#,CE100,EE10#..3D YELLOW |
2 | ||
| 69759-24010 |
AE10#,CE100,EE10# NATURAL |
1 | ||
| 69759-24020 |
AE10#,CE100,EE10# BLUE |
1 | ||
| 69759-20050 |
AE10#,CE100,EE10#..3D BROWN |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE10#,CE100,EE10#..3D YELLOW |
2 | ||
| 69759-24010 |
AE10#,CE100,EE10# NATURAL |
1 | ||
| 69759-24020 |
AE10#,CE100,EE10# BLUE |
1 | ||
| 69759-20050 |
AE10#,CE100,EE10#..3D BROWN |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20090 |
AE10#,CE100,EE10#..3D LH |
1 | ||
| 69759-20080 |
AE10#,CE100,EE10#..3D RH |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20070 |
AE10#,CE100,EE10#..3D RH |
2 | ||
| 69759-20060 |
AE10#,CE100,EE10#..3D LH |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-12050 |
AE10#,CE100,EE10#..3D |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90151-80015 | ||||
| 90159-60081 | ||||
| 90159-60356 | ||||
| 90159-60542 | ||||
| 90162-50008 | ||||
| 90189-06018 | ||||
| 90467-08117 | ||||
| Linked diagrams | ||||
| 7403 | ||||
