EE100L-AGMDSW (1992)
Toyota Corolla Hb/Lb

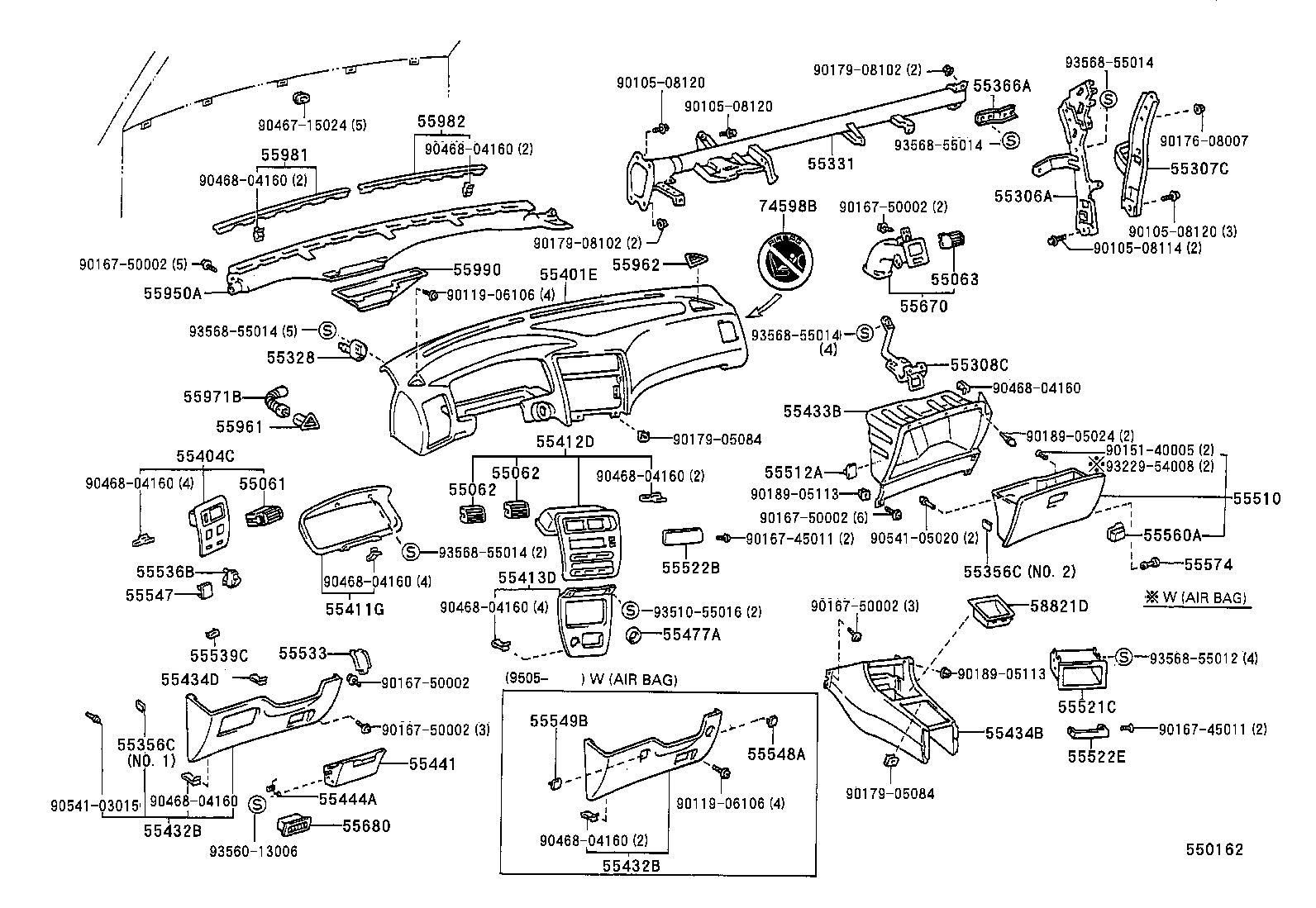

ILLUST NO. 1 OF 2(9205- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12170 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-12080 |
AE10#,CE100,EE10#..LHD |
2 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-12080 |
AE10#,CE100,EE10#..LHD |
2 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55061-12180B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55061-12180J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12220 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55306-12180 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12230 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12210 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12060 |
AE10#,CE100,EE10# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12260 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-12060 |
AE10#,CE100,EE10#..LHD NO.1 |
2 | ||
| 55356-12060 |
AE10#,CE100,EE10# NO.2 |
4 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-12060 |
AE10#,CE100,EE10#..LHD NO.1 |
2 | ||
| 55356-12060 |
AE10#,CE100,EE10# NO.2 |
4 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-12050 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-12340J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55401-12340B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12400B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12400J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-12600 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55404-12660 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55404-12640 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-12890 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12590 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-12430 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12360B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55432-12360J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12360B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55432-12360J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12120J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55433-12120B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12130B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55434-12130J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07073C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-12070J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55440-12070B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12040 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-12100 |
AE10#,CE100,EE10# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12340J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55550-12340B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
AE10#,CE100,EE10# 2 DIN BOX |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12120 |
AE10#,CE100,EE10# |
1 | ||
| 55522E - COVER, CUP HOLDER OPENING | ||||
| 55522-12110 |
AE10#,CE100,EE10# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-12130 |
AE101,CE100,EE10#..STD,XL,XLI |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-12010 |
AE101..HB..RHD;AE101..LHD..(SI,XLI);AE102,CE100,EE10#..GTI,STD,XL,XLI |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12110 |
AE10#,CE100,EE10# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-12020 |
AE10#,CE100,EE10# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1208004 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 55560-1208003 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE10#,CE100,EE10# |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12190J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55670-12190B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55670-12220B0 |
AE101..LB..LHD;AE102,CE100,EE10#..LHD;AE101..HB..LHD..5F..GLI;AE101..HB..LHD..(SI,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-12050P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55680-12050W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 55680-12050 |
AE10#,CE100,EE10# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12160 |
AE101,CE100,EE10#..LHD |
1 | ||
| 55950-12180 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12200J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55961-12200B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12180B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55962-12180J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-12110 |
AE10#,CE100,EE10# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-12070 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-12070 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-12020 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 58821D - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-12070J0 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 58821-12070B0 |
AE10#,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08114 | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90167-45011 | ||||
| 90167-50002 | ||||
| 90176-08007 | ||||
| 90179-05084 | ||||
| 90179-08102 | ||||
| 90189-05024 | ||||
| 90189-05113 | ||||
| 90467-15024 | ||||
| 90468-04160 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 93229-54008 | ||||
| 93510-55016 | ||||
| 93560-13006 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
