CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb
Production
Apr 1997
-
Oct 1999
Engine
2CE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )JPP

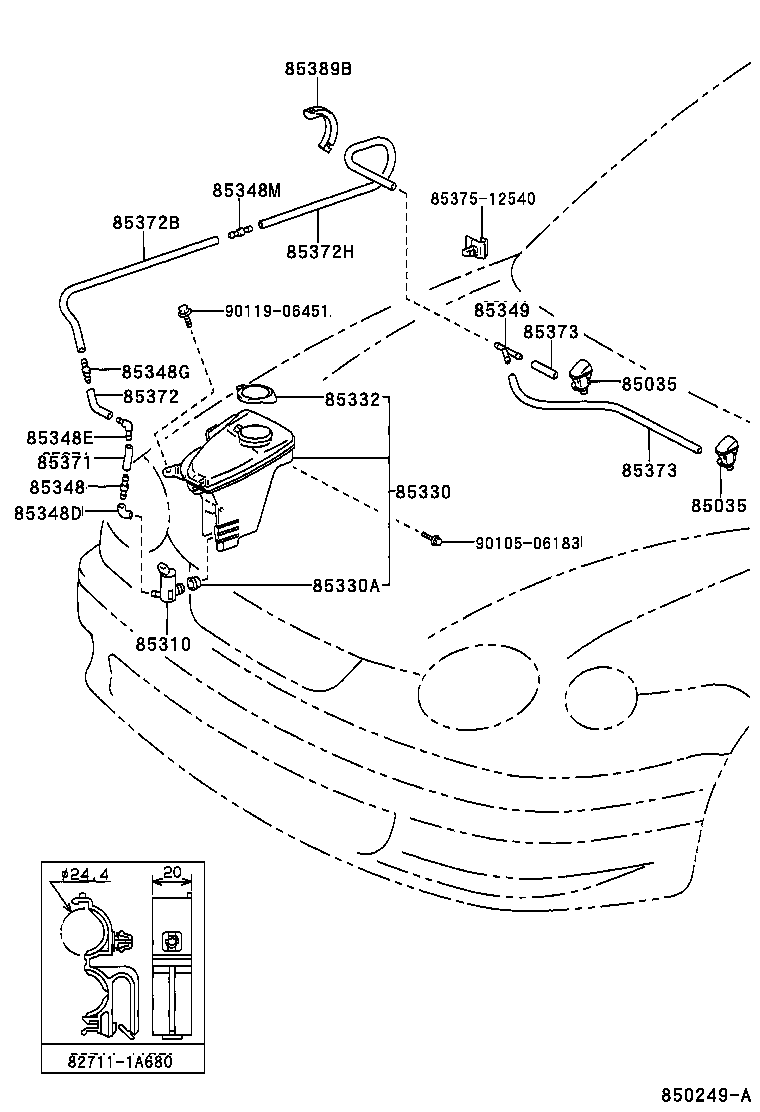

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
AE111,CE110,EE111..JPP |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
AE111,CE110,EE111..JPP |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-44010 |
AE111,CE110,EE111..JPP |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12221 |
AE111,CE110,EE111..JPP |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE111,CE110,EE111..JPP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-12221 |
AE111,CE110,EE111..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22480 |
AE111,CE110,EE111..JPP |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85336-12410 |
AE111,CE110,EE111..JPP |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85317-12410 |
AE111,CE110,EE111..JPP |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85319-12410 |
AE111,CE110,EE111..JPP |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85334-22470 |
AE111,CE110,EE111..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-14390 |
AE111,CE110,EE111..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
AE111,CE110,EE111..JPP *H,L=95 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33075 |
AE111,CE110,EE111..JPP *H,L=100 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33712 |
AE111,CE110,EE111..JPP *H,L=1120 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
AE111,CE110,EE111..JPP *H,L=650 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,CE110,EE111..JPP *H,L=40 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,CE110,EE111..JPP *H,L=40 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-12700 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 82711-1A680 | ||||
| 85375-12540 | ||||
| 90105-06183 | ||||
| 90119-06451 | ||||
