CE110R-ALMNEW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )AE111,CE110,EE111..RHD

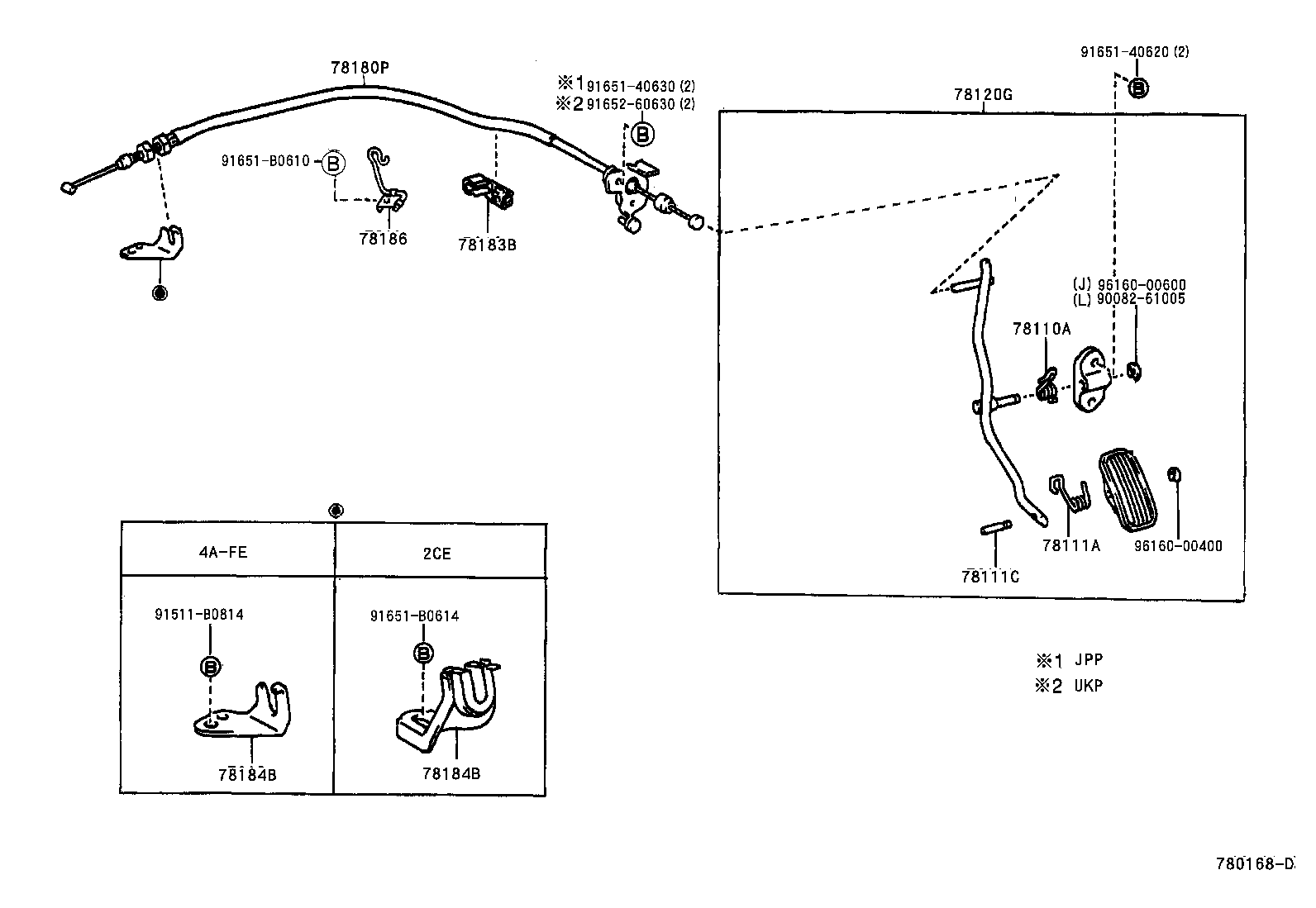

Click highlighted areas on diagram

diagram 78110A 78111A 78111C 78120G 78180P 78183B 78184B 78184B 78186 9008261005 91511B0814 9165140620 9165140630 91651B0610 91651B0614 9165260630 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

CE110..RHD;EE111..MTM

 1
90508-26036

CE110..RHD..TERRA;CE110..RHD..LB..LUNA;EE111..JPP..LB..5F..LUNA;EE111..LHD..HB..5F..LUNA;EE111..JPP..MTM..(G6,STD,TERRA)

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AE111,CE110,EE111..RHD

 1
90508-18050

AE111..JPP..RHD..LB;AE111..RHD..HB..(G6,TERRA);EE111..JPP..RHD..3FC..LUNA;CE110,EE111..JPP..RHD..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE111..JPP..RHD..LB;AE111..RHD..HB..(G6,TERRA);EE111..JPP..RHD..3FC..LUNA;CE110,EE111..JPP..RHD..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA

 1
90249-05001

AE111,CE110,EE111..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12150

CE110,EE111..JPP..RHD..LB..5F..LUNA;CE110,EE111..JPP..RHD..MTM..(G6,TERRA)

 1
78120-12150

CE110,EE111..RHD..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A610

CE110..RHD

 1
78180-1A610

CE110..RHD..TERRA;CE110..RHD..LB..LUNA

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12160

AE111..RHD..LB;AE111..RHD..HB..TERRA;EE111..RHD..3FC..LUNA;CE110,EE111..RHD..(G6,TERRA);CE110,EE111..RHD..LB..5F..LUNA

 1
78183-12160

AE111,CE110..JPP..RHD;EE111..JPP..RHD..(LUNA,TERRA)

 1
78183-12160

AE111,CE110,EE111..RHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12030

CE110

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12030

CE110

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78183-12180

CE110

TYPE C:REFER TO ILLUSTRATION

 1
78183-12180

CE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA

TYPE C:REFER TO ILLUSTRATION

 1
Common parts
90082-61005
91511-B0814
91651-40620
91651-40630
91651-B0610
91651-B0614
91652-60630
96160-00400
96160-00600
