CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb
ILLUST NO. 2 OF 2(9704- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1E370B1 |
AE111,CE110,EE111..RHD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74310-1E180B1 |
AE111,CE110,EE111..RHD W(*80,DRIVER & PASSENGER & CARD HOLDER & VANITY MIRROR),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74310-1E420B0 |
AE111,CE110,EE111..RHD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74310-1E370A1 |
AE111,CE110,EE111..RHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 74310-1E420A0 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 74310-1E420B0 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) MEDIUM CHARCOAL,TRIM10,12 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1A800A0 |
AE111,CE110,EE111 IVORY,TRIM0# |
1 | ||
| 74320-1A720A0 |
AE111,CE110,EE111 W(*80,DRIVER & PASSENGER & CARD HOLDER & VANITY MIRROR),IVORY,TRIM0# |
1 | ||
| 74320-1A720B1 |
AE111,CE110,EE111 W(*80,DRIVER & PASSENGER & CARD HOLDER & VANITY MIRROR),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74320-1A800B0 |
AE111,CE110,EE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74320-1A670A1 |
AE111,CE110,EE111..RHD..(LUNA,TERRA) W(VANITY MIRROR),IVORY,TRIM0# |
1 | ||
| 74320-1E090B0 |
AE111,CE110,EE111..RHD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74320-1A670B3 |
AE111,CE110,EE111..RHD W(VANITY MIRROR),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74320-1E090B0 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) MEDIUM CHARCOAL,TRIM10,12 |
1 | ||
| 74320-1E090A0 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12030B1 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..STD,TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1# |
2 | ||
| 74348-12030A0 |
AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0# |
2 | ||
| 74348-12030B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10,12 |
2 | ||
| 74348-12030B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(COAT HOOK),LT.GRAY,TRIM12 |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12030B1 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..STD,TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1# |
2 | ||
| 74348-12030A0 |
AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0# |
2 | ||
| 74348-12030B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10,12 |
2 | ||
| 74348-12030B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(COAT HOOK),LT.GRAY,TRIM12 |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12110B1 |
AE111,CE110,EE111 W(COAT HOOK),MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-22050B3 |
AE111,CE110,EE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-22050A2 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) IVORY,TRIM0# |
2 | ||
| 74610-12110A0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(COAT HOOK),IVORY,TRIM0# |
1 | ||
| 74610-22050B2 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) LT.GRAY,TRIM12 |
2 | ||
| 74610-12110B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(COAT HOOK),MD.CHARCOAL,TRIM10,12 |
1 | ||
| 74610-22050B3 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10,12 |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12110B1 |
AE111,CE110,EE111 W(COAT HOOK),MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-22050B3 |
AE111,CE110,EE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-22050A2 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) IVORY,TRIM0# |
2 | ||
| 74610-12110A0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(COAT HOOK),IVORY,TRIM0# |
1 | ||
| 74610-22050B2 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) LT.GRAY,TRIM12 |
2 | ||
| 74610-12110B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(COAT HOOK),MD.CHARCOAL,TRIM10,12 |
1 | ||
| 74610-22050B3 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10,12 |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-22050B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) LI.GRAY,TRIM12 |
6 | ||
| 74612-22050A3 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) IVORY,TRIM0# |
6 | ||
| 74612-22050B7 |
AE111,CE110,EE111 MD.CHARCOAL,TRIM1# |
6 | ||
| 74612-22050B7 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10,12 |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-22050B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) LI.GRAY,TRIM12 |
6 | ||
| 74612-22050A3 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) IVORY,TRIM0# |
6 | ||
| 74612-22050B7 |
AE111,CE110,EE111 MD.CHARCOAL,TRIM1# |
6 | ||
| 74612-22050B7 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10,12 |
6 | ||
| 74619A - CUSHION, ASSIST GRIP | ||||
| 74619-12020 |
AE111,CE110,EE111..JPP |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-33020B2 |
AE111,CE110,EE111 MD. CHACOAL,TRIM1# |
1 | ||
| 74631-33020B2 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD. CHACOAL,TRIM10,12 |
1 | ||
| 74631-33020B0 |
AE111,CE110,EE111..JPP..LUNA LT. GRAY,TRIM12 |
1 | ||
| 74631-33020B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) LT. GRAY,TRIM12 |
1 | ||
| 74631-33020A1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90080-15060 | ||||
| 90159-60503 | ||||
| 93530-45016 | ||||

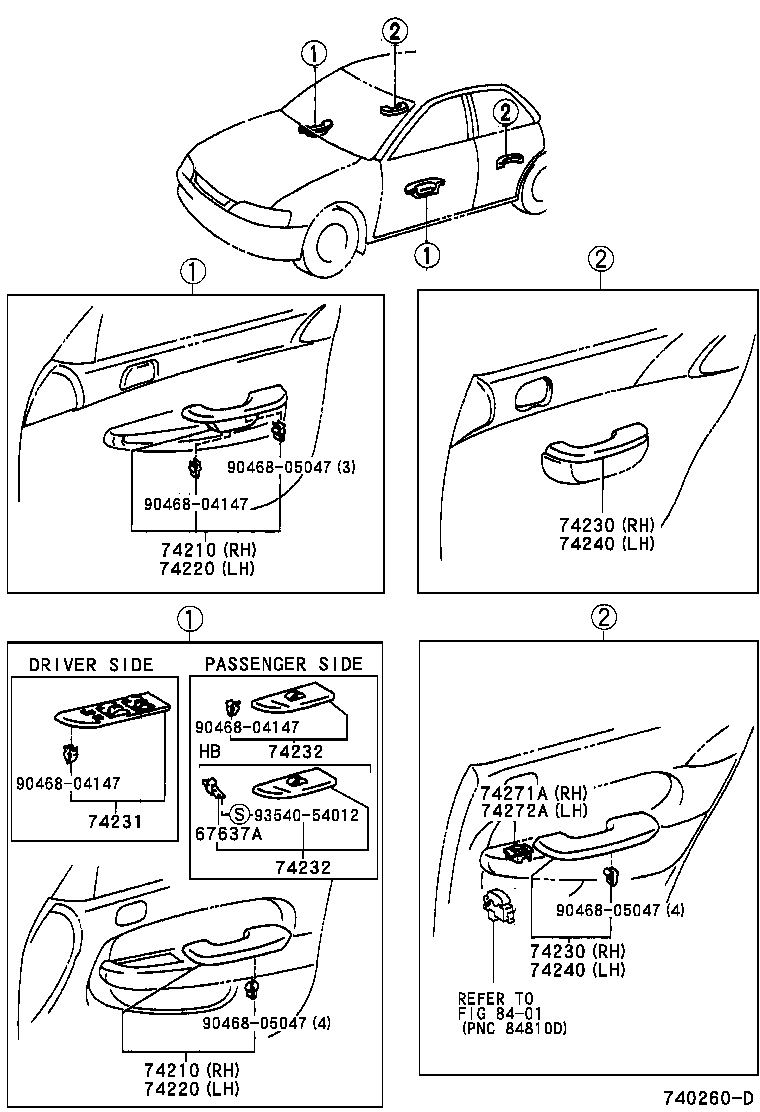

ILLUST NO. 1 OF 2(9704- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12180A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74210-12180B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM12 |
1 | ||
| 74210-12180B2 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM10 |
1 | ||
| 74210-12180B2 |
AE111,CE110,EE111..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM1# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12180A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74210-12180B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM12 |
1 | ||
| 74210-12180B2 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM10 |
1 | ||
| 74210-12180B2 |
AE111,CE110,EE111..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12160B2 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM10 |
1 | ||
| 74220-12160B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM12 |
1 | ||
| 74220-12160B2 |
AE111,CE110,EE111..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM1# |
1 | ||
| 74220-12160A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12160B2 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM10 |
1 | ||
| 74220-12160B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM12 |
1 | ||
| 74220-12160B2 |
AE111,CE110,EE111..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM1# |
1 | ||
| 74220-12160A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12180B2 |
AE111,CE110,EE111..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 74210-12230B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(MANUAL WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74210-12230A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW---FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74210-12180B2 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM10 |
1 | ||
| 74210-12180A0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 74210-12230B1 |
AE111,CE110,EE111..LB..(LUNA,TERRA) W(MANUAL WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 74210-12230B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10 |
1 | ||
| 74210-12180B0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12180B2 |
AE111,CE110,EE111..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 74210-12230B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(MANUAL WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74210-12230A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW---FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74210-12180B2 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM10 |
1 | ||
| 74210-12180A0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 74210-12230B1 |
AE111,CE110,EE111..LB..(LUNA,TERRA) W(MANUAL WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 74210-12230B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10 |
1 | ||
| 74210-12180B0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-12340B0 |
AE111,CE110,EE111..RHD..LB..LUNA W(POWER WINDOW---FRONT ONLY),GRAY,TRIM0# |
1 | ||
| 74231-12250B1 |
AE111,CE110,EE111..JPP..RHD..LB..(G6,LUNA) SHADOW GRAY,TRIM1# |
1 | ||
| 74231-12240B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74231-12350B0 |
AE111,CE110,EE111..RHD..LB..LUNA W(POWER WINDOW),GRAY,TRIM0# |
1 | ||
| 74231-12340J0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA W(POWER WINDOW---FRONT ONLY),BLUE,TRIM1# |
1 | ||
| 74231-12350J0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA WOOD GRAIN,W(POWER WINDOW),BLUE,TRIM1# |
1 | ||
| 74231-12340G0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0# |
1 | ||
| 74231-12350G0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA WOOD GRAIN,W(POWER WINDOW),GREEN,TRIM0# |
1 | ||
| 74231-12410B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA W(POWER WINDOW),LIGHT SILVER,TRIM1# |
1 | ||
| 74231-12420B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA LIGHT SILVER,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12260B0 |
AE111,CE110,EE111..RHD..LB..LUNA GRAY,TRIM0# |
1 | ||
| 74232-12120B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12260J0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA WOOD GRAIN,BLUE,TRIM1# |
1 | ||
| 74232-12260G0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA WOOD GRAIN,GREEN,TRIM0# |
1 | ||
| 74232-12320B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA LIGHT SILVER,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12260B0 |
AE111,CE110,EE111..RHD..LB..LUNA GRAY,TRIM0# |
1 | ||
| 74232-12120B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12260J0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA WOOD GRAIN,BLUE,TRIM1# |
1 | ||
| 74232-12260G0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA WOOD GRAIN,GREEN,TRIM0# |
1 | ||
| 74232-12320B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA LIGHT SILVER,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12160B2 |
AE111,CE110,EE111..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 74220-12160A0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 74220-12170A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW---FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74220-12170B0 |
AE111,CE110,EE111..JPP..LB W(MANUAL WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74220-12160B0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74220-12170B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(MANUAL WINDOW),MD.CHARCOAL,TRIM10 |
1 | ||
| 74220-12160B2 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM10 |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12160B2 |
AE111,CE110,EE111..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM1# |
1 | ||
| 74220-12160A0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 74220-12170A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(POWER WINDOW---FRONT ONLY),IVORY,TRIM0# |
1 | ||
| 74220-12170B0 |
AE111,CE110,EE111..JPP..LB W(MANUAL WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74220-12160B0 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),SHADOW GRAY,TRIM12 |
1 | ||
| 74220-12170B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) W(MANUAL WINDOW),MD.CHARCOAL,TRIM10 |
1 | ||
| 74220-12160B2 |
AE111,CE110,EE111..JPP..LB..LUNA W(POWER WINDOW),MD.CHARCOAL,TRIM10 |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 84656-12080E1 |
AE111,CE110..RHD..LB..LUNA WOOD GRAIN,BROWN,TRIM1# |
1 | ||
| 84656-32020B2 |
AE111,CE110,EE111..JPP..LB..LUNA MD.CHARCOAL,TRIM10 |
1 | ||
| 84656-32020A0 |
AE111,CE110,EE111..JPP..LB..LUNA IVORY,TRIM0# |
1 | ||
| 84656-32020B0 |
AE111,CE110,EE111..JPP..LB..LUNA SHADOW GRAY,TRIM12 |
1 | ||
| 84656-12080E2 |
AE111,CE110..JPP..RHD..LUNA WOOD GRAIN,BROWN,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 84656-12080E1 |
AE111,CE110..RHD..LB..LUNA WOOD GRAIN,BROWN,TRIM1# |
1 | ||
| 84656-32020B0 |
AE111,CE110,EE111..JPP..LB..LUNA SHADOW GRAY,TRIM12 |
1 | ||
| 84656-12080E2 |
AE111,CE110..JPP..RHD..LUNA WOOD GRAIN,BROWN,TRIM1# |
1 | ||
| 84656-32020B2 |
AE111,CE110,EE111..JPP..LB..LUNA MD.CHARCOAL,TRIM10 |
1 | ||
| 84656-32020A0 |
AE111,CE110,EE111..JPP..LB..LUNA IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
