CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb
ILLUST NO. 3 OF 3(9704-9910)

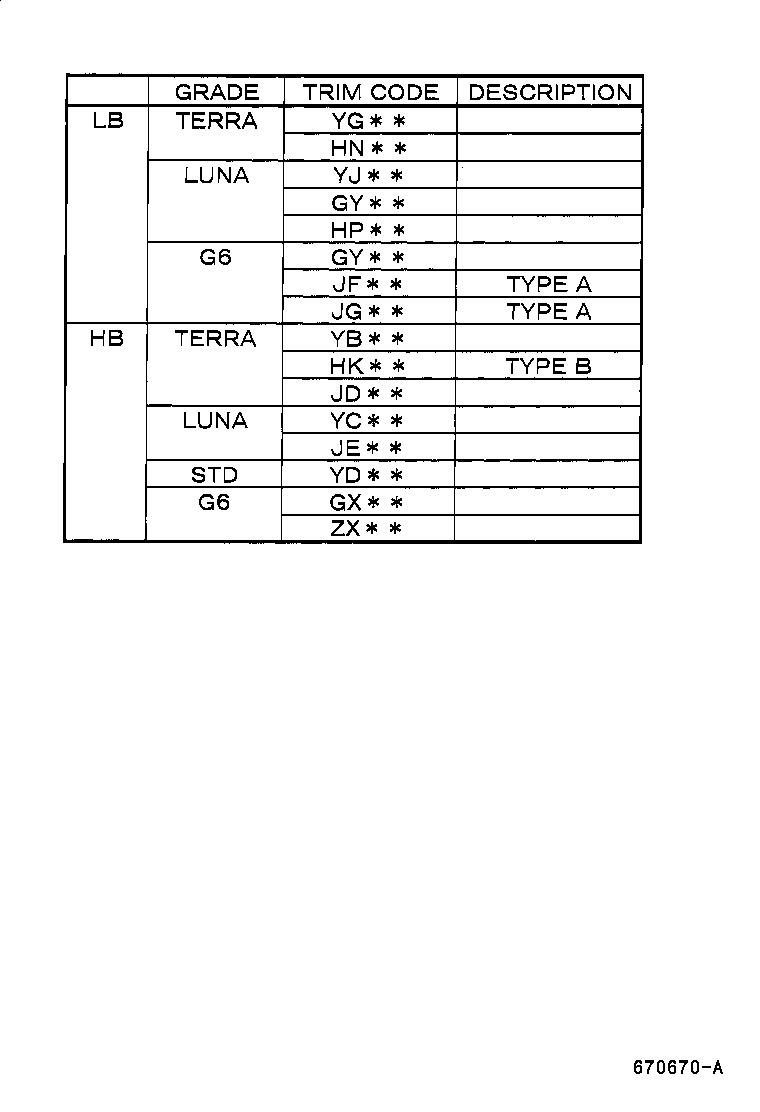

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|

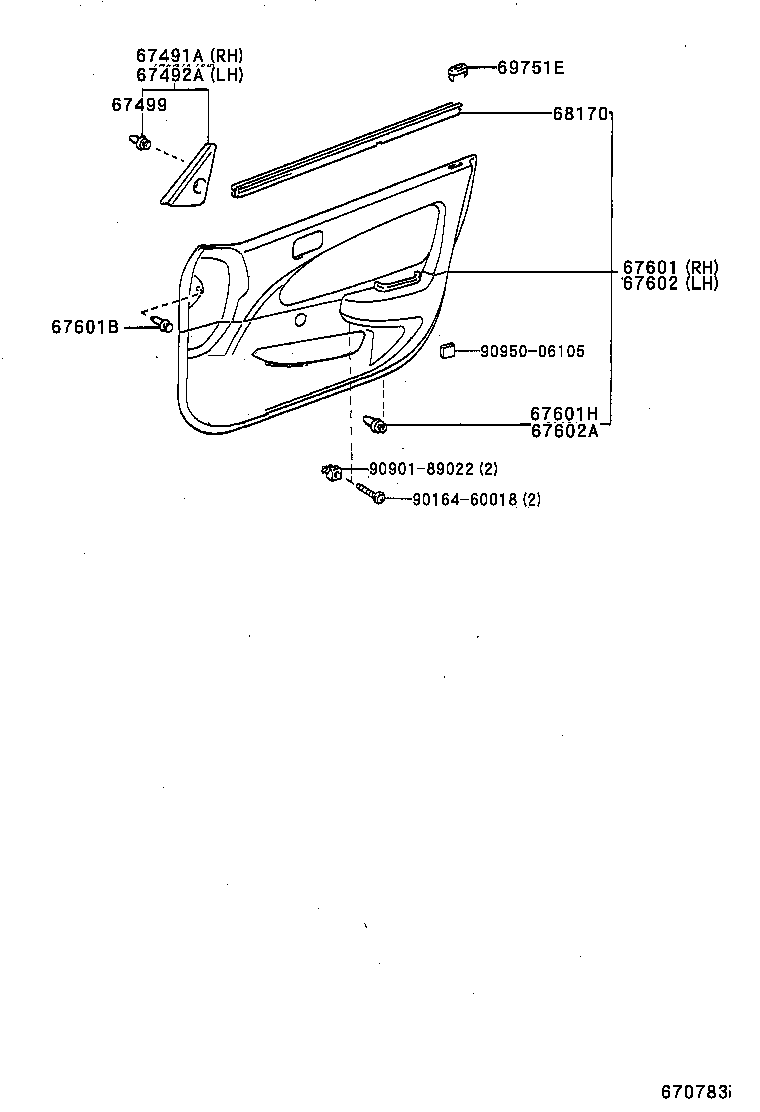

ILLUST NO. 1 OF 3(9704- )JPP..LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12400 |
AE111,CE110,EE111..JPP..LB..(G6,LUNA);AE111,CE110,EE111..JPP..LHD..LB..TERRA W(ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 67491-12430 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12400 |
AE111,CE110,EE111..JPP..LB..(G6,LUNA);AE111,CE110,EE111..JPP..LHD..LB..TERRA W(ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 67492-12430 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
AE111,CE110,EE111..JPP..LB |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1H750B2 |
AE111,CE110,EE111..RHD..LB..LUNA MD. CHARCOAL,TRIM1# |
1 | ||
| 67610-1K210B0 |
AE111,CE110,EE111..RHD..LB..LUNA MD.CHARCOAL.,TRIM1# |
1 | ||
| 67650-1H750A1 |
AE111,CE110,EE111..RHD..LB..LUNA IVORY,TRIM0# |
1 | ||
| 67610-1K210A0 |
AE111,CE110,EE111..RHD..LB..LUNA IVORY,TRIM0# |
1 | ||
| 67610-1K410B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-1K340B0 |
AE111,CE110,EE111..JPP..RHD..LB..(LUNA,TERRA) G6 GRADE PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1K410A1 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA IVORY,TRIM0# |
1 | ||
| 67610-1K410B4 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA SHADOW GRAY,TRIM12 |
1 | ||
| 67610-1K410B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA MD.CHARCOAL,TRIM10 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133C0 |
AE111,CE110,EE111..LB..(LUNA,TERRA) BLACK,TRIM0#,1# |
4 | ||
| 90467-06133A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) IVORY,TRIM0# |
4 | ||
| 90467-06133B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
4 | ||
| 90467-06133C0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) BLACK,TRIM0#,10,12 |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AE111,CE110,EE111..JPP..LB |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67050-12320B2 |
AE111,CE110,EE111..RHD..LB..LUNA MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12320A1 |
AE111,CE110,EE111..RHD..LB..LUNA IVORY,TRIM0# |
1 | ||
| 67660-12070B0 |
AE111,CE110,EE111..RHD..LB..LUNA MD.CHARCOAL.,TRIM1# |
1 | ||
| 67660-12070A0 |
AE111,CE110,EE111..RHD..LB..LUNA IVORY,TRIM0# |
1 | ||
| 67660-12020B0 |
AE111,CE110,EE111..JPP..RHD..LB..(LUNA,TERRA) G6 GRADE PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 67660-12170B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12170A1 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA IVORY,TRIM0# |
1 | ||
| 67660-12170B0 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA MD.CHARCOAL,TRIM10 |
1 | ||
| 67660-12170B4 |
AE111,CE110,EE111..JPP..RHD..LB..LUNA SHADOW GRAY,TRIM12 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111,CE110,EE111..JPP..LB |
6 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12190 |
AE111,CE110,EE111..JPP..LB LH |
1 | ||
| 68171-12270 |
AE111,CE110,EE111..JPP..LB RH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
2 | ||
| 69751-12070B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
2 | ||
| 69751-12070B1 |
AE111,CE110,EE111..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
2 | ||
| 69751-12070A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||

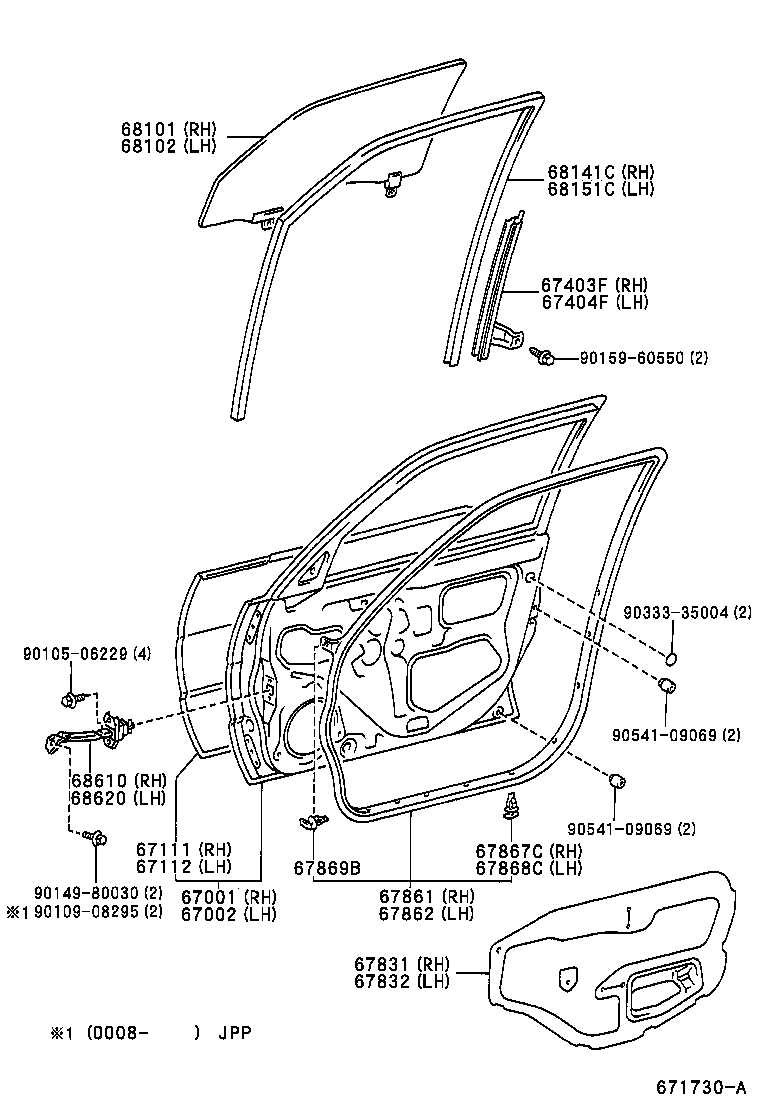

ILLUST NO. 2 OF 3(9704- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A560 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A540 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12600 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12590 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12210 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12210 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12550 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12350 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12880 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12840 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE111,CE110,EE111..JPP..LB |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE111,CE110,EE111..JPP..LB |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
AE111,CE110,EE111..JPP |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12820 |
AE111,CE110,EE111..JPP..LB *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12820 |
AE111,CE110,EE111..JPP..LB *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12470 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12180 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-02040 |
AE111,CE110,EE111..JPP..LB PLANT TMUK, LH |
1 | ||
| 68610-12150 |
AE111,CE110,EE111..JPP..LB RH |
1 | ||
| 68610-02040 |
AE111,CE110,EE111..JPP..LB PLANT TMUK, RH |
1 | ||
| 68620-12060 |
AE111,CE110,EE111..JPP..LB LH |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-12060 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| Common parts | ||||
| 90105-06229 | ||||
| 90109-08295 | ||||
| 90149-80030 | ||||
| 90159-60550 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
