Toyota Corolla hb/lb CE110 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55539A - COVER, SPARE SWITCH HOLE
55539-20020B4	AE111,CE110,EE111..LUNA,STD,TERRA MD.CHARCOAL,TRIM1#	04/1997 - 05/1998	1
55539-20020B4	AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1#	05/1998 - 08/1998	1
55539-20020A0	AE111,CE110,EE111..LUNA,TERRA IVORY,TRIM0#	04/1997 - 05/1998	1
55539-20020P0	AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
55539-20020B4	AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
55539-20020A0	AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0#	05/1998 - 10/1999	1
55539A - COVER, SPARE SWITCH HOLE
55539-20020B4	AE111,CE110,EE111..LUNA,STD,TERRA MD.CHARCOAL,TRIM1#	04/1997 - 05/1998	1
55539-20020B4	AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1#	05/1998 - 08/1998	1
55539-20020A0	AE111,CE110,EE111..LUNA,TERRA IVORY,TRIM0#	04/1997 - 05/1998	1
55539-20020P0	AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
55539-20020B4	AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
55539-20020A0	AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0#	05/1998 - 10/1999	1
55539K - COVER, SPARE SWITCH HOLE
55539-12120B2	AE111,CE110,EE111..LUNA,TERRA MD.CHARCOAL,TRIM1#	04/1997 - 05/1998	1
55539-12120A0	AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0#	05/1998 - 10/1999	1
55539-12120B2	AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
55539-12120A0	AE111,CE110,EE111..LUNA,TERRA IVORY,TRIM0#	04/1997 - 05/1998	1
55539-12120B0	AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
55539-12120B2	AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1#	05/1998 - 08/1998	1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12112P0	AE111..LB..5F;AE111..HB..5F..TERRA;CE110,EE111..5F..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..5F..LUNA SHADOW GRAY,TRIM0#	04/1997 - 08/1998	1
58808-12112B1	AE111..LB..5F;AE111..HB..5F..TERRA;CE110,EE111..5F..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..5F..LUNA DK.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58808-12112P0	AE111,CE110,EE111..JPP..5F..(LUNA,TERRA) SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58808-12112B1	AE111,CE110,EE111..JPP..5F..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10	08/1998 - 10/1999	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12220A0	AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA W(CONSOLE BOX DOOR),IVORY,TRIM0#	04/1997 - 10/1999	1
58901-12220B0	AE111,CE110,EE111..JPP..(LUNA,TERRA) W(CONSOLE BOX DOOR),SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58901-12220B1	AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58901-12220B1	AE111,CE110,EE111..JPP..(LUNA,TERRA) W(HEADLAMP CLEANER),MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12220A0	AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA W(CONSOLE BOX DOOR),IVORY,TRIM0#	04/1997 - 10/1999	1
58901-12220B0	AE111,CE110,EE111..JPP..(LUNA,TERRA) W(CONSOLE BOX DOOR),SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58901-12220B1	AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58901-12220B1	AE111,CE110,EE111..JPP..(LUNA,TERRA) W(HEADLAMP CLEANER),MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12160B1	AE111,CE110,EE111..LUNA,STD,TERRA MD.CHARCOAL,TRIM1#	04/1997 - 05/1998	1
58905-12160A0	AE111,CE110,EE111..LUNA,TERRA IVORY,TRIM0#	04/1997 - 05/1998	1
58905-12160A0	AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0#	05/1998 - 10/1999	1
58905-12160B1	AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58905-12160B1	AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1#	05/1998 - 08/1998	1
58905-12160B0	AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040	AE111,CE110,EE111	04/1997 - 05/1998	1
58908-32040	AE111,CE110,EE111..JPP	10/1998 - 10/1999	1
58908-32040	CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA	05/1998 - 10/1998	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12040	CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA	05/1998 - 10/1999	1
58964-12040	AE111,CE110,EE111	04/1997 - 05/1998	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12040	CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA	05/1998 - 10/1999	1
58965-12040	AE111,CE110,EE111	04/1997 - 05/1998	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12080	AE111,CE110,EE111..MTM	04/1997 - 05/1998	1
58995-12080	CE110..TERRA;AE111..JPP..LB..5F;AE111..HB..MTM..(G6,TERRA);CE110,EE111..JPP..LB..5F..LUNA;EE111..JPP..MTM..(G6,STD,TERRA);AE111,CE110,EE111..LHD..HB..5F..LUNA	05/1998 - 10/1999	1
Common parts
90080-46067
90119-08413
90119-08848
90467-10130
90541-03006
91626-G0820
93567-54512
93567-55014
93568-55016

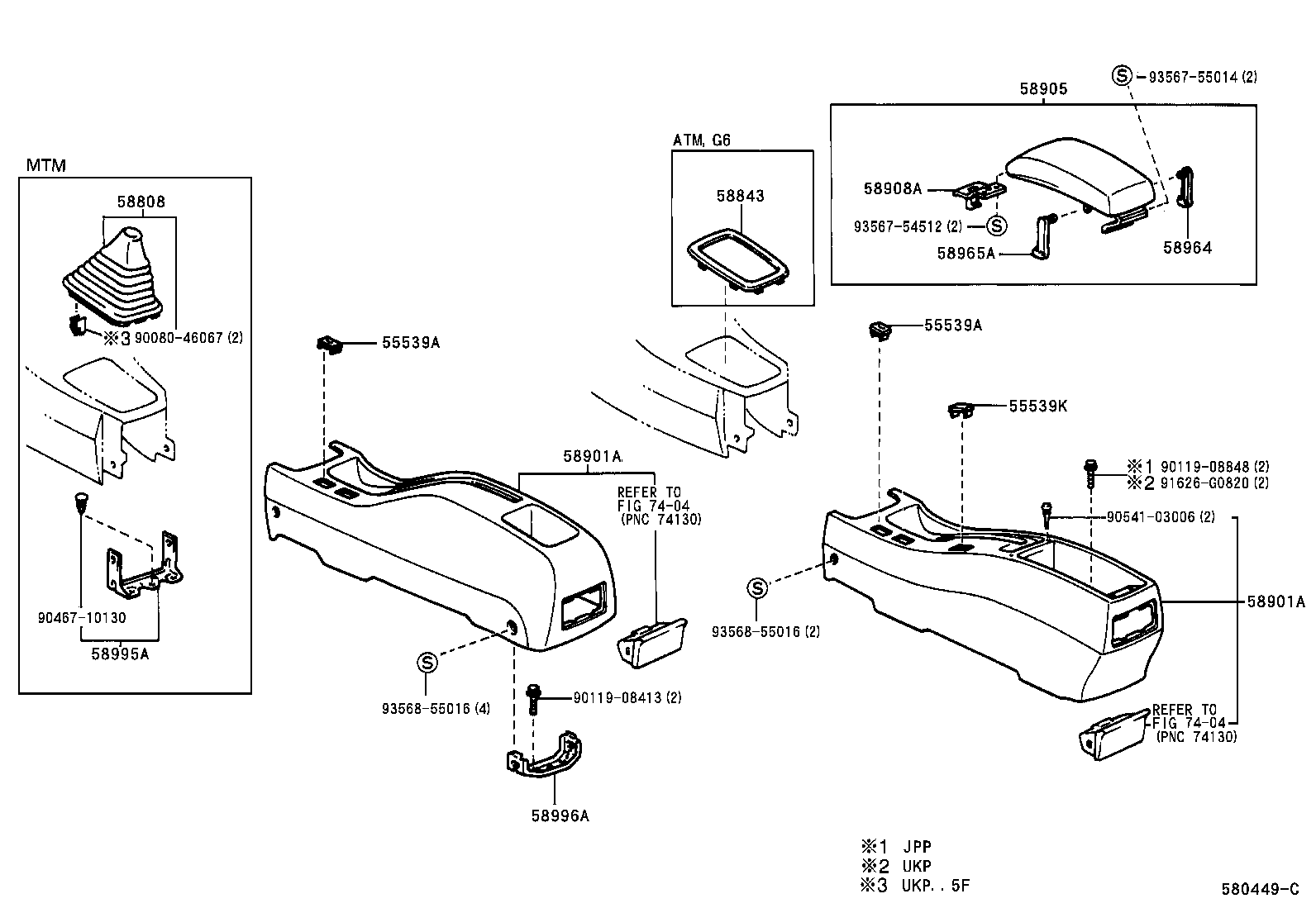

Linked diagrams
7404

CE110R-ALMNEW (1997)

(9704- )
