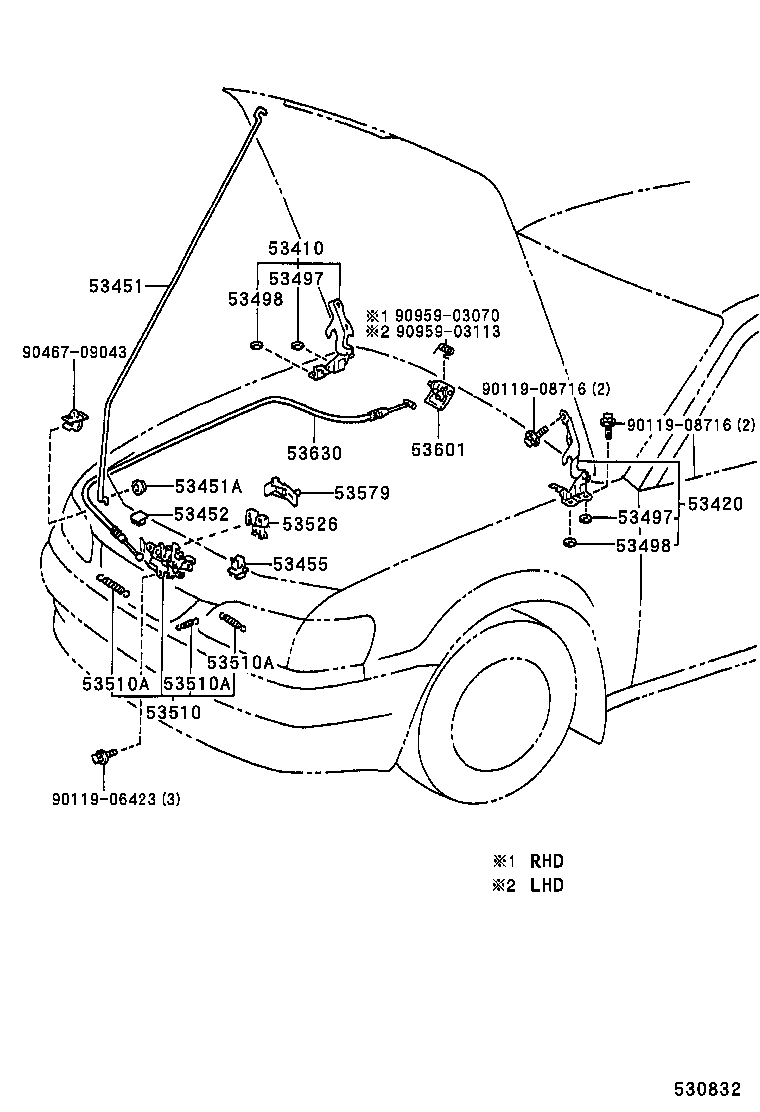

CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12340 |
AE111,CE110,EE111..JPP |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12340 |
AE111,CE110,EE111..JPP |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-12200 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 53451-12200 |
AE111,CE110,EE111 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 53454-12010 |
AE111,CE110,EE111 |
1 | ||
| 53454-12010 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-12030 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 53452-12030 |
AE111,CE110,EE111 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-12100 |
AE111,CE110,EE111 |
1 | ||
| 53455-12100 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12080 |
AE111,CE110,EE111..JPP T=1.6 |
2 | ||
| 53497-12100 |
AE111,CE110,EE111..JPP T=2.5 |
2 | ||
| 53497-12070 |
AE111,CE110,EE111..JPP T=0.5 |
2 | ||
| 53497-12060 |
AE111,CE110,EE111..JPP T=1.0 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12080 |
AE111,CE110,EE111..JPP T=1.6 |
2 | ||
| 53497-12100 |
AE111,CE110,EE111..JPP T=2.5 |
2 | ||
| 53497-12070 |
AE111,CE110,EE111..JPP T=0.5 |
2 | ||
| 53497-12060 |
AE111,CE110,EE111..JPP T=1.0 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-12060 |
AE111,CE110,EE111..JPP T=1.0 |
2 | ||
| 53497-12080 |
AE111,CE110,EE111..JPP T=1.6 |
2 | ||
| 53497-12070 |
AE111,CE110,EE111..JPP T=0.5 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-12060 |
AE111,CE110,EE111..JPP T=1.0 |
2 | ||
| 53497-12080 |
AE111,CE110,EE111..JPP T=1.6 |
2 | ||
| 53497-12070 |
AE111,CE110,EE111..JPP T=0.5 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12650 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20065 |
AE111,CE110,EE111..JPP..RHD WD=2.0,CW=16.0 |
1 | ||
| 90506-12067 |
AE111,CE110,EE111..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-09057 |
AE111,CE110,EE111..JPP..RHD WD=0.9,CW=23 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20065 |
AE111,CE110,EE111..JPP..RHD WD=2.0,CW=16.0 |
1 | ||
| 90506-12067 |
AE111,CE110,EE111..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-09057 |
AE111,CE110,EE111..JPP..RHD WD=0.9,CW=23 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20065 |
AE111,CE110,EE111..JPP..RHD WD=2.0,CW=16.0 |
1 | ||
| 90506-12067 |
AE111,CE110,EE111..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-09057 |
AE111,CE110,EE111..JPP..RHD WD=0.9,CW=23 |
1 | ||
| 53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2 | ||||
| 53526-12040 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53611-12040B3 |
AE111,CE110,EE111..RHD..(LUNA,TERRA) MD. CHARCOAL,TRIM1# |
1 | ||
| 53611-12040A0 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 53611-12040B0 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 53611-12040B3 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) MD. CHARCOAL,TRIM10 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12500 |
AE111,CE110,EE111..JPP |
1 | ||
| 53630-12480 |
AE111,CE110,EE111 |
1 | ||
| Common parts | ||||
| 90119-06423 | ||||
| 90119-08716 | ||||
| 90467-09043 | ||||
| 90959-03070 | ||||
| 90959-03113 | ||||
