CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb
Production
Apr 1997
-
Oct 1999
Engine
2CE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

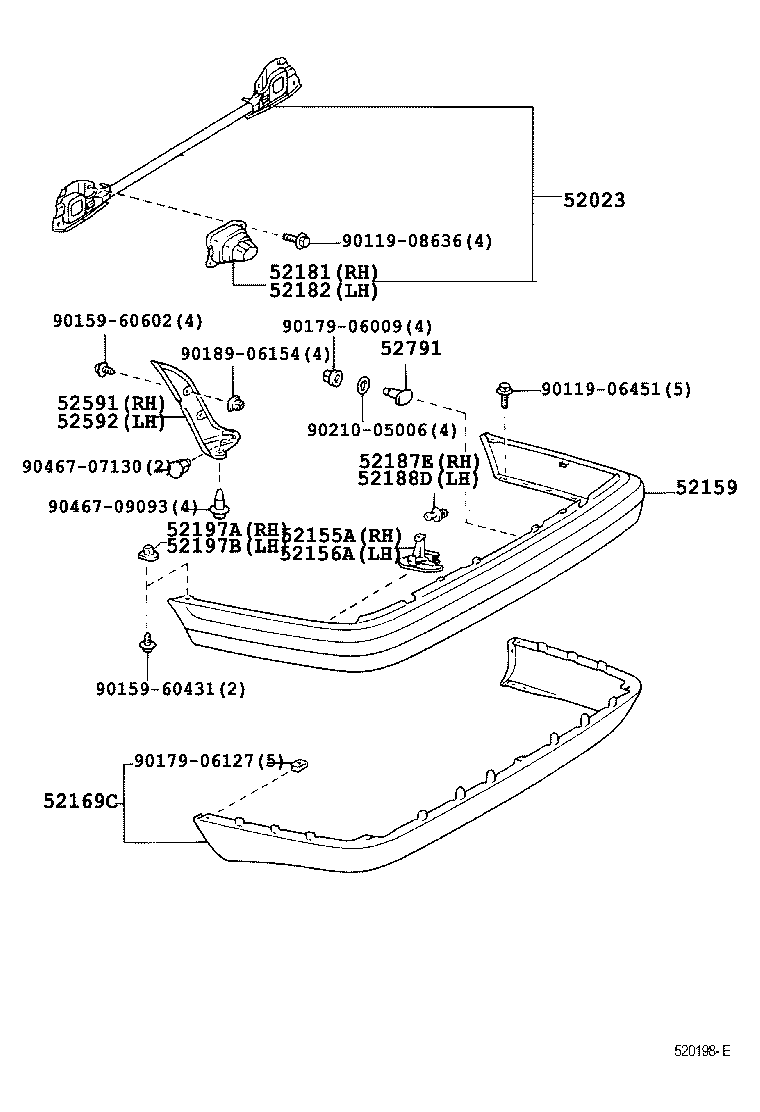

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-12180 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12230 |
AE111,CE110,EE111..JPP |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52155-12230 |
AE111,CE110,EE111..JPP |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1A710 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12070 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 52187E - GUIDE, REAR BUMPER LOCATION, RH | ||||
| 52187-16070 |
AE111,CE110,EE111..JPP |
1 | ||
| 52188D - GUIDE, REAR BUMPER LOCATION, LH | ||||
| 52187-16070 |
AE111,CE110,EE111..JPP |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-16020 |
AE111,CE110,EE111..JPP |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-16020 |
AE111,CE110,EE111..JPP |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12110 |
AE111,CE110,EE111..JPP |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12030 |
AE111,CE110,EE111..JPP |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 90109-06354 |
AE111,CE110,EE111..JPP..LB |
4 | ||
| 52791-12010 |
AE111,CE110,EE111..JPP |
4 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-08636 | ||||
| 90159-60431 | ||||
| 90159-60602 | ||||
| 90179-06009 | ||||
| 90179-06127 | ||||
| 90189-06154 | ||||
| 90210-05006 | ||||
| 90467-07130 | ||||
| 90467-09093 | ||||
