CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb

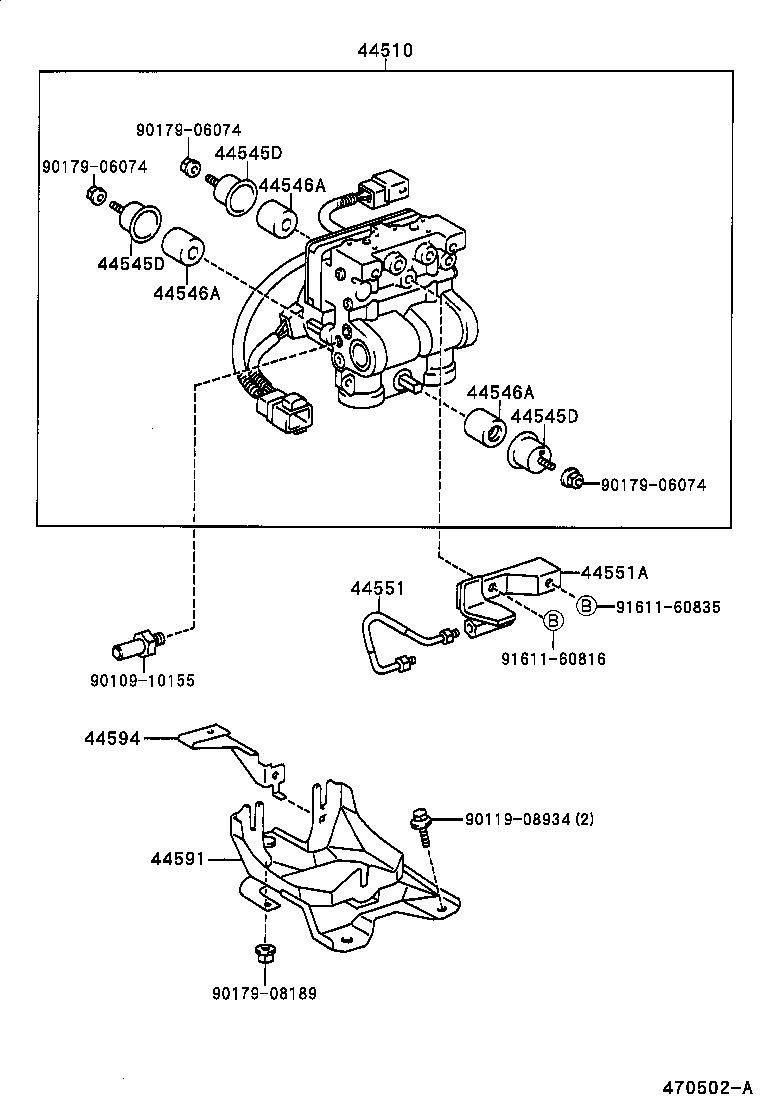

ILLUST NO. 2 OF 2(9704-9805)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

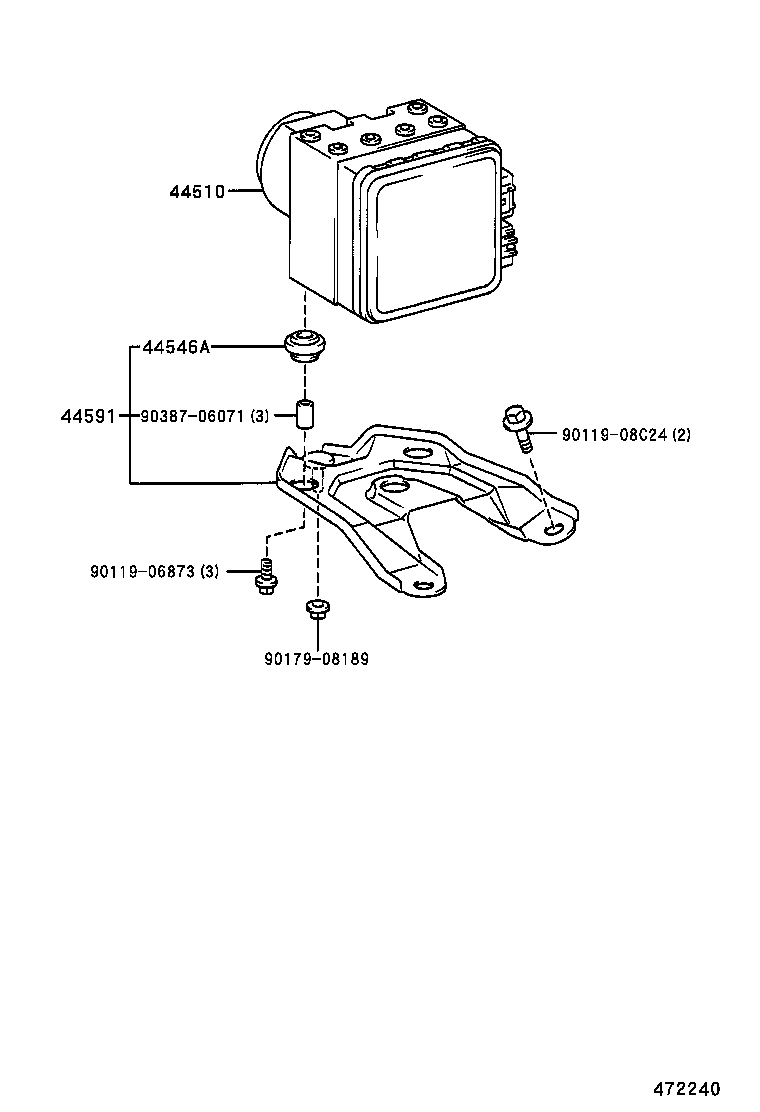

| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12040 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 44510-12170 |
AE111,CE110,EE111 |
1 | ||
| 44050-12060 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) W(REAR DISC BRAKE) |
1 | ||
| 44050-12040 |
AE111,CE110,EE111 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
AE111,CE110,EE111 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
AE111,CE110,EE111 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
AE111,CE110,EE111 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE111,CE110,EE111 |
3 | ||
| 44546-12100 |
AE111,CE110,EE111..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE111,CE110,EE111 |
3 | ||
| 44546-12100 |
AE111,CE110,EE111..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE111,CE110,EE111 |
3 | ||
| 44546-12100 |
AE111,CE110,EE111..JPP |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12040 |
AE111,CE110,EE111 |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90904-12006 |
AE111,CE110,EE111 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-12040 |
AE111,CE110,EE111..JPP |
1 | ||
| 44590-12020 |
AE111,CE110,EE111 |
1 | ||
| 44590-12030 |
AE111,CE110,EE111..JPP |
1 | ||
| 44594 - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-12010 |
AE111,CE110,EE111 |
1 | ||
| Common parts | ||||
| 90109-10155 | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||

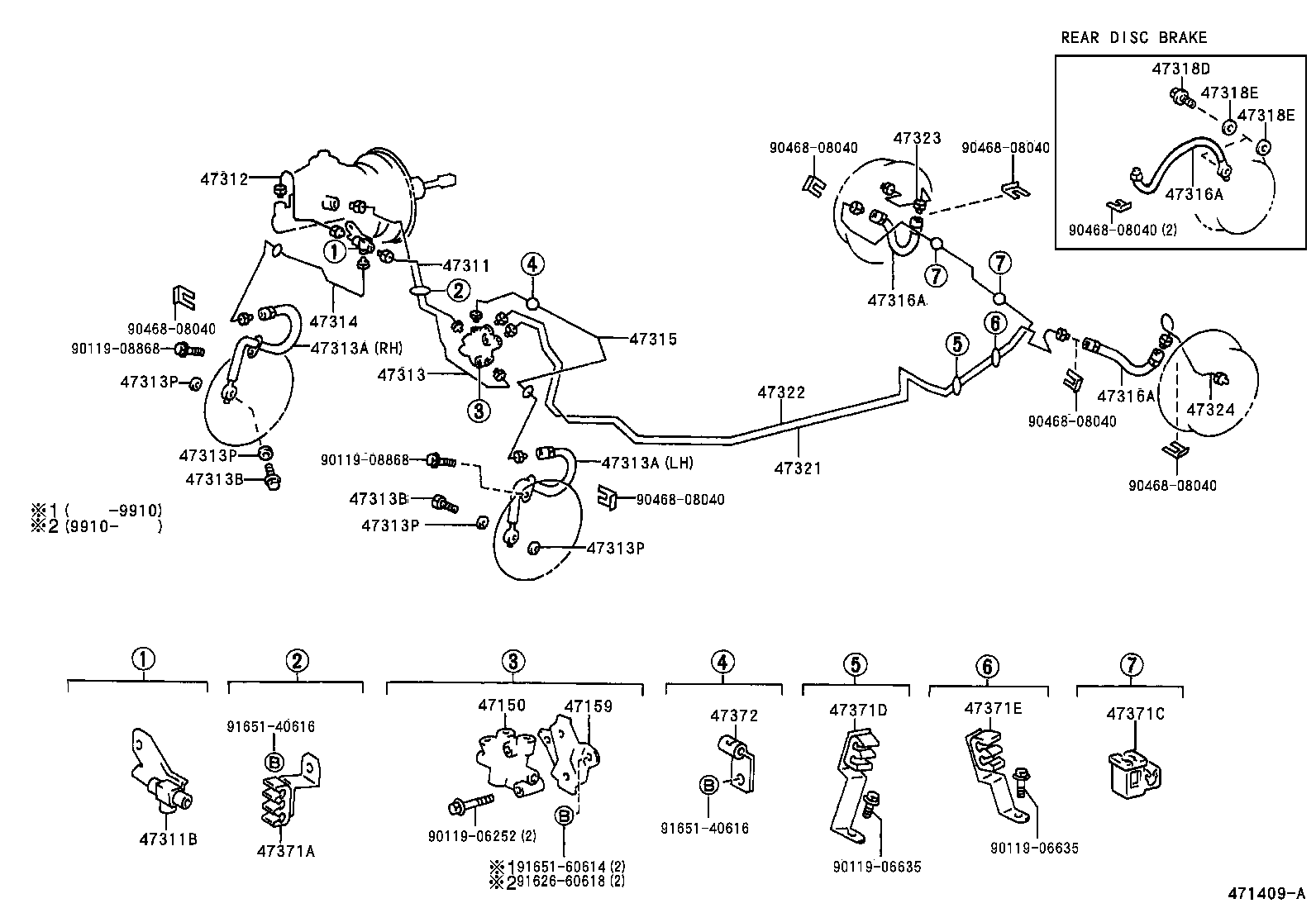

(9704- )JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-44020 |
AE111,CE110,EE111 W(ABS) |
1 | ||
| 47150-12230 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 47150-44020 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) W(ABS) |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12560 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47311-12570 |
AE111,CE110,EE111..RHD W(ABS) |
1 | ||
| 47311-12620 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-12010 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 90412-10116 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12330 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12430 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47313-12380 |
AE111,CE110,EE111..RHD W(ABS) |
1 | ||
| 47313-12370 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02913 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 90947-02910 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02913 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 90947-02910 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111,CE110,EE111..JPP |
2 | ||
| 90401-10015 |
AE111,CE110,EE111..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111,CE110,EE111..JPP |
2 | ||
| 90401-10015 |
AE111,CE110,EE111..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12290 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47315-12450 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111,CE110,EE111 |
2 | ||
| 90947-02921 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
2 | ||
| 90947-02922 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111,CE110,EE111 |
2 | ||
| 90947-02921 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
2 | ||
| 90947-02922 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111,CE110,EE111 |
2 | ||
| 90947-02921 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
2 | ||
| 90947-02922 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111,CE110,EE111..JPP |
2 | ||
| 90401-10015 |
AE111,CE110,EE111..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12130 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12280 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE111,CE110,EE111 |
1 | ||
| 47323-12250 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE111,CE110,EE111 |
1 | ||
| 47324-12210 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47371-12100 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01B45 |
AE111,CE110,EE111..JPP |
2 | ||
| 47371-12150 |
AE111,CE110,EE111..JPP |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47375-12040 |
AE111,CE110,EE111..JPP |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47375-12060 |
AE111,CE110,EE111..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12060 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 90461-06119 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91626-60618 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||

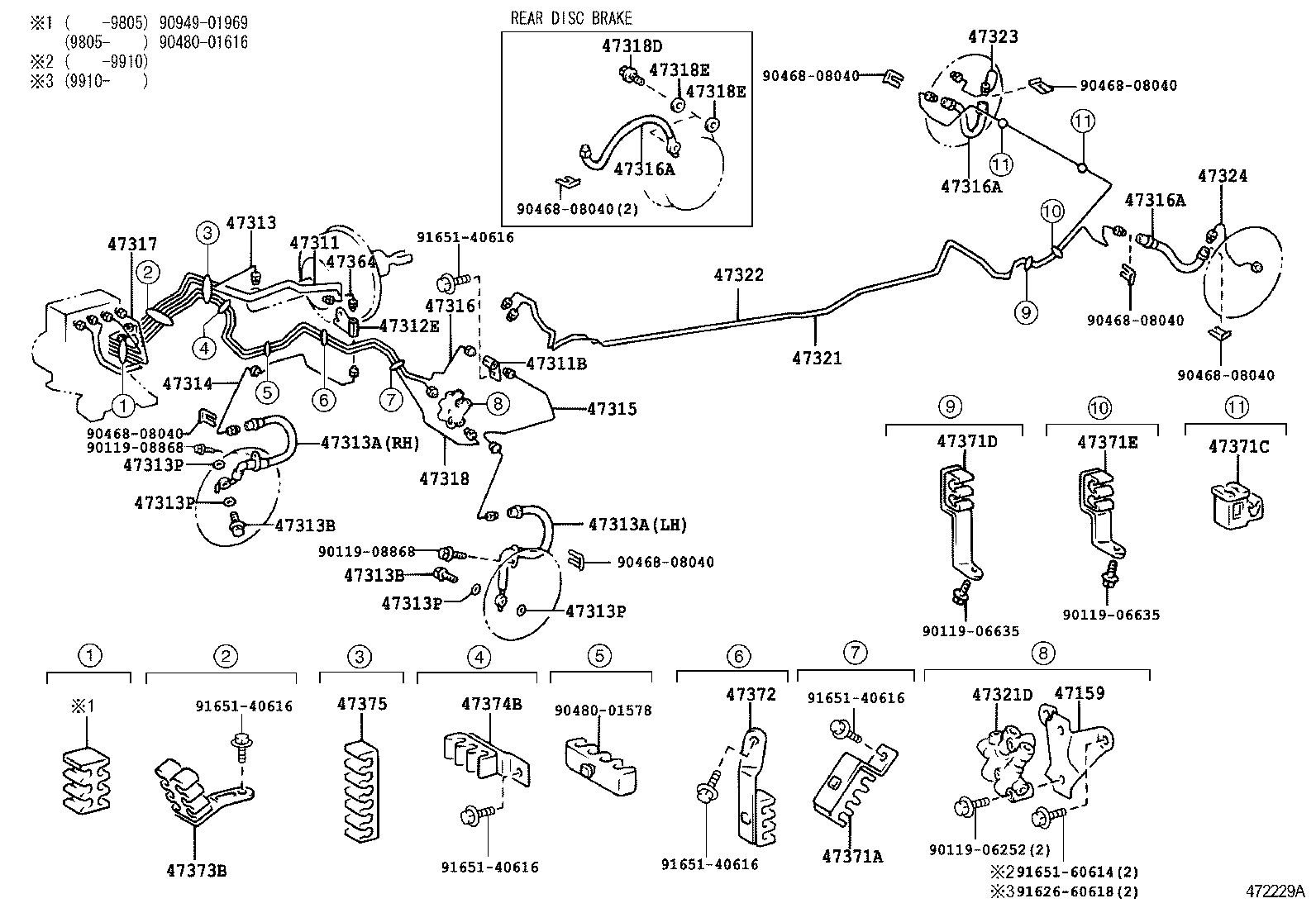

ILLUST NO. 1 OF 2(9704- )JPP..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12560 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47311-12570 |
AE111,CE110,EE111..RHD W(ABS) |
1 | ||
| 47311-12620 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-12010 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 90412-10116 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12007 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12430 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47313-12380 |
AE111,CE110,EE111..RHD W(ABS) |
1 | ||
| 47313-12370 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02913 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 90947-02910 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02913 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 90947-02910 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111,CE110,EE111..JPP |
2 | ||
| 90401-10015 |
AE111,CE110,EE111..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111,CE110,EE111..JPP |
2 | ||
| 90401-10015 |
AE111,CE110,EE111..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12290 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47315-12450 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12250 |
AE111,CE110,EE111..RHD |
1 | ||
| 47316-12320 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111,CE110,EE111 |
2 | ||
| 90947-02921 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
2 | ||
| 90947-02922 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111,CE110,EE111 |
2 | ||
| 90947-02921 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
2 | ||
| 90947-02922 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111,CE110,EE111 |
2 | ||
| 90947-02921 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
2 | ||
| 90947-02922 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12170 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47317-12100 |
AE111,CE110,EE111..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12270 |
AE111,CE110,EE111..RHD |
1 | ||
| 47318-12310 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111,CE110,EE111..JPP |
2 | ||
| 90401-10015 |
AE111,CE110,EE111..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111,CE110,EE111..JPP |
4 | ||
| 47389-50020 |
AE111,CE110,EE111..JPP |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12130 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
AE111,CE110,EE111..JPP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12280 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE111,CE110,EE111 |
1 | ||
| 47323-12250 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE111,CE110,EE111 |
1 | ||
| 47324-12210 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12041 |
AE111,CE110,EE111..RHD |
1 | ||
| 47364-12160 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 47371-12100 |
AE111,CE110,EE111..JPP..RHD..(LUNA,TERRA) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01B45 |
AE111,CE110,EE111..JPP |
2 | ||
| 47371-12150 |
AE111,CE110,EE111..JPP |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47375-12040 |
AE111,CE110,EE111..JPP |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47375-12060 |
AE111,CE110,EE111..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12060 |
AE111,CE110,EE111..JPP..RHD W(ABS) |
1 | ||
| 90461-06119 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47374-12030 |
AE111,CE110,EE111..JPP |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-12010 |
AE111,CE110,EE111..JPP..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01856 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01578 | ||||
| 91626-60618 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 2(9805- )JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12040 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 44510-12170 |
AE111,CE110,EE111 |
1 | ||
| 44050-12060 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) W(REAR DISC BRAKE) |
1 | ||
| 44050-12040 |
AE111,CE110,EE111 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE111,CE110,EE111 |
3 | ||
| 44546-12100 |
AE111,CE110,EE111..JPP |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-12040 |
AE111,CE110,EE111..JPP |
1 | ||
| 44590-12020 |
AE111,CE110,EE111 |
1 | ||
| 44590-12030 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 90119-06873 | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90387-06071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
