CE110R-ALMNEW (1997)
Toyota Corolla Hb/Lb
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12190B3 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM1# |
1 | ||
| 46201-12190B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(HEADLAMP CLEANER),SHADOW GRAY,TRIM12 |
1 | ||
| 46201-12190B0 |
AE111,CE110,EE111..LUNA,TERRA W(HEADLAMP CLEANER),SHADOW GRAY,TRIM0# |
1 | ||
| 46201-12200B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM12 |
1 | ||
| 46201-12190B3 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 46201-12200B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12110 |
AE111,CE110,EE111..JPP |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12110 |
AE111,CE110,EE111..JPP |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-12010 |
AE111,CE110,EE111..JPP |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
AE111,CE110,EE111..JPP |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12250 |
AE111,CE110,EE111..JPP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12400 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 46420-12400 |
AE111,CE110,EE111 |
1 | ||
| 46420-12390 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01746 |
AE111,CE110,EE111..JPP |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01746 |
AE111,CE110,EE111..JPP |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01744 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 90949-01747 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01744 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 90949-01747 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08040 |
AE111,CE110,EE111..JPP |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12300 |
AE111,CE110,EE111 |
1 | ||
| 46430-12300 |
AE111,CE110,EE111..JPP..(LUNA,STD,TERRA) |
1 | ||
| 46430-12290 |
AE111,CE110,EE111..JPP W(REAR DISC BRAKE) |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
AE111,CE110,EE111..JPP |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
AE111,CE110,EE111..JPP |
2 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90468-14019 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||

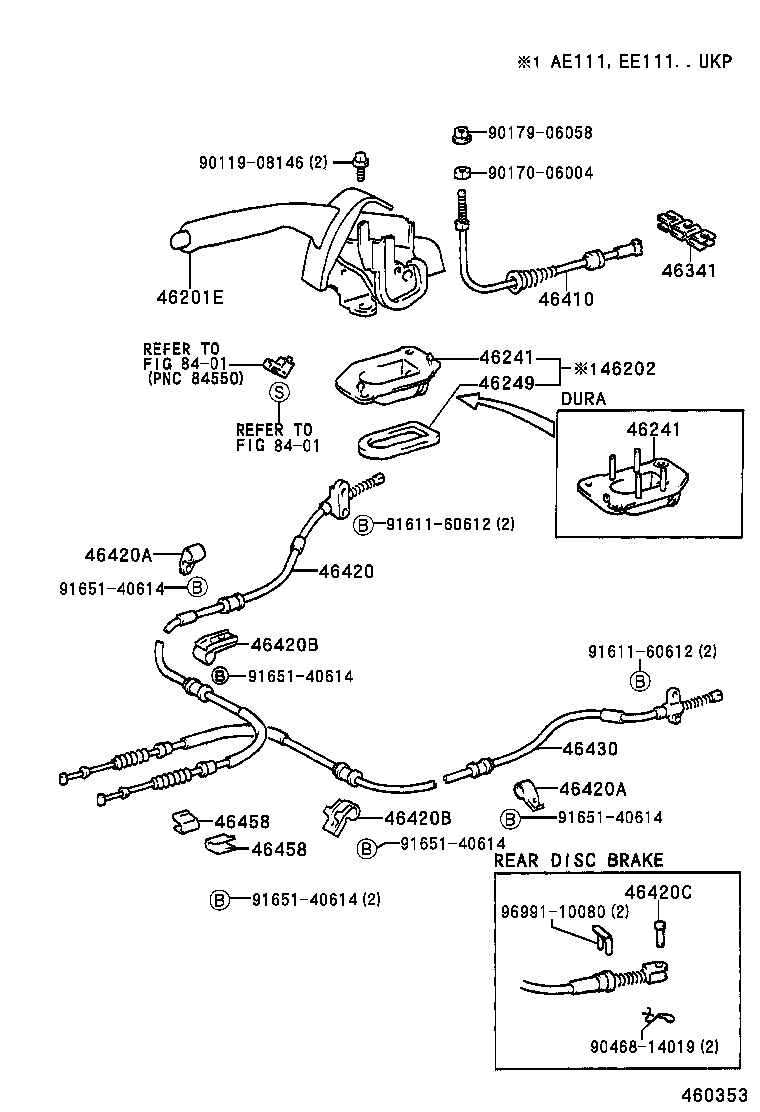

| Linked diagrams | ||||
| 8401 | ||||
