CE110R-ALMNEW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(9704- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203109 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214

ILLUST NO. 2 OF 5(9704- )

Click highlighted areas on diagram

diagram 42601C 42603 42621
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01007

AE111,CE110,EE111..JPP..(LUNA,STD,TERRA)

TYPE A:REFER TO ILLUSTRATION

 16
90942-01021

EE111..JPP..(G6,LUNA);AE111,CE110..JPP..LUNA

TYPE B:REFER TO ILLUSTRATION

 16
90942-01033

AE111,CE110,EE111..JPP..(G6,LUNA,TERRA)

TYPE C:REFER TO ILLUSTRATION

 16
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12660

AE111,CE110,EE111..G6,LUNA,TERRA

TYPE B:REFER TO ILLUSTRATION

 4
42603-20620

AE111,CE110,EE111..JPP..(G6,LUNA,TERRA)

*ALU,TYPE C:REFER TO ILLUSTRATION

 4
42621 - CAP, WHEEL
42602-12510

EE111..JPP..(G6,LUNA);AE111,CE110..JPP..LUNA

TYPE B:REFER TO ILLUSTRATION

 4
42602-13020

AE111,CE110,EE111..JPP..LUNA

TYPE C:REFER TO ILLUSTRATION

 4

ILLUST NO. 4 OF 5(9809- )

Click highlighted areas on diagram

diagram 9008042049 9008042050 9008042051 9008042052 9008042053 9008042054 9008042055 9008042056 9008042057 9008042058 9008042059 9008042060 9008042062 9008042064 9008042065 9008042066 9008042067 9008042068 9008042069 9008042070 9008042071 9008042072 9008042073 9008042074 9008042075
Part # Description Qty Price
Common parts
90080-42049
90080-42050
90080-42051
90080-42052
90080-42053
90080-42054
90080-42055
90080-42056
90080-42057
90080-42058
90080-42059
90080-42060
90080-42062
90080-42064
90080-42065
90080-42066
90080-42067
90080-42068
90080-42069
90080-42070
90080-42071
90080-42072
90080-42073
90080-42074
90080-42075

ILLUST NO. 1 OF 5(9704- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J 42652 42652A
Part # Description Qty Price

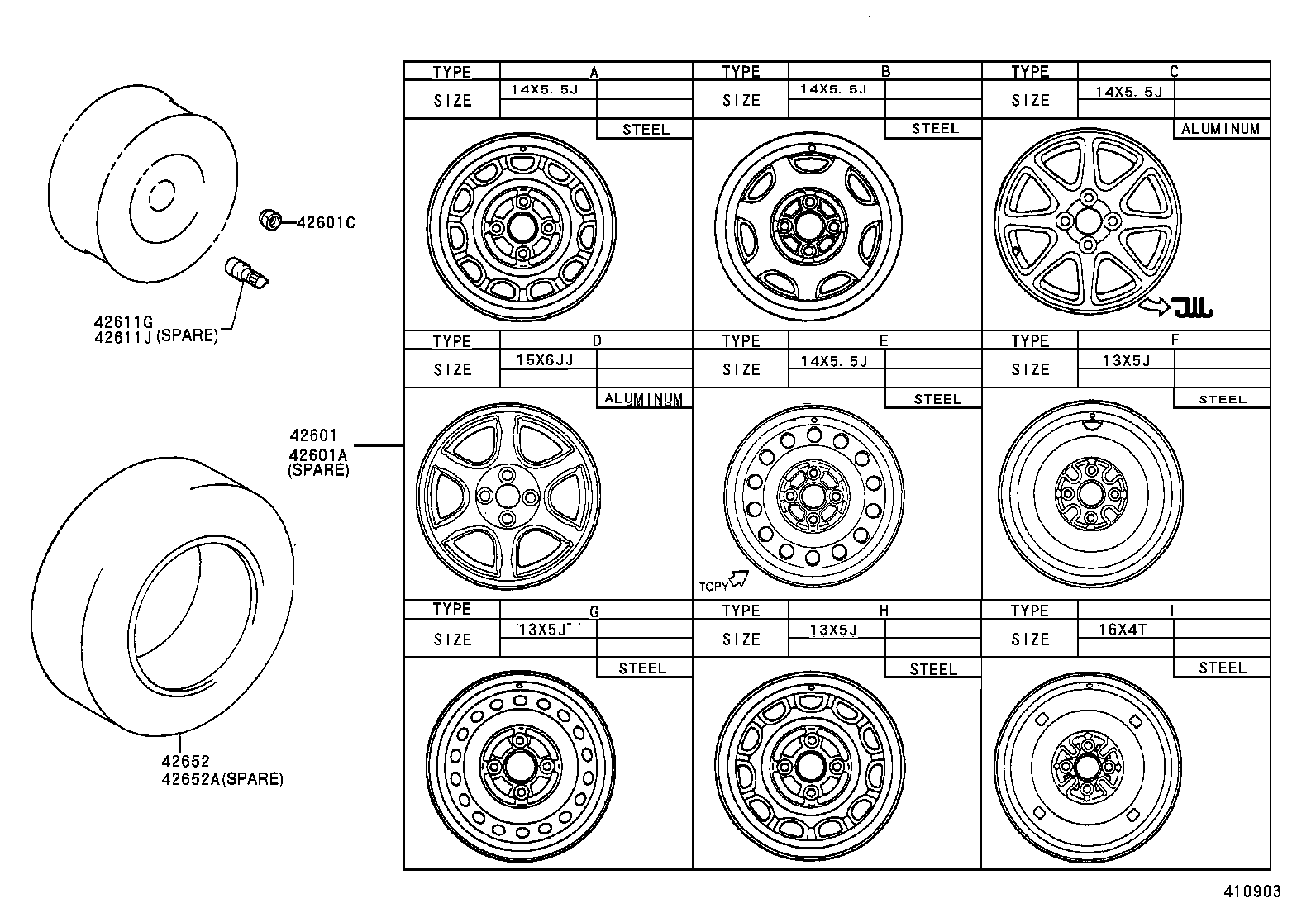

42601 - WHEEL, DISC
42611-1A380

AE111,CE110,EE111..G6,LUNA,TERRA

14X5.5J,TYPE C:REFER TO ILLUSTRATION

 4
42611-1A430

AE111,CE110,EE111..JPP..(G6,LUNA,TERRA)

14X6JJ,OFFSET 45,TYPE C:REFER TO ILLUSTRATION

 4
42611-1A14001

EE111..JPP..(G6,LUNA,TERRA);AE111,CE110..JPP..(LUNA,TERRA)

14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A14001

AE111,CE110,EE111..JPP..LB

14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK

 1
42611-1A430

AE111,CE110,EE111..JPP..LB

14X6JJ,OFFSET 45,TYPE C:REFER TO ILLUSTRATION

 1
42611-1A380

AE111,CE110,EE111..LB

14X5.5J,TYPE C:REFER TO ILLUSTRATION

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

AE111,CE110,EE111..JPP..(LUNA,STD,TERRA)

TYPE A:REFER TO ILLUSTRATION

 16
90942-01021

EE111..JPP..(G6,LUNA);AE111,CE110..JPP..LUNA

TYPE B:REFER TO ILLUSTRATION

 16
90942-01033

AE111,CE110,EE111..JPP..(G6,LUNA,TERRA)

TYPE C:REFER TO ILLUSTRATION

 16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AE111,CE110,EE111..JPP

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AE111,CE110,EE111..JPP

 1
42652 - TIRE
42652-1A360

EE111..JPP..(G6,LUNA,TERRA);AE111,CE110..JPP..(LUNA,TERRA)

175/65R14

 4
42652A - TIRE (FOR SPARE)
42652-1A360

AE111,CE110,EE111..JPP..LB

175/65R14

 1
