CE110L-ALMNEW (1997)
Toyota Corolla Hb/Lb
ILLUST NO. 1 OF 6(9704- )CE110
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CE110 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
CE110 |
1 | ||
| 83530-30100 |
CE110 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE111,CE110,EE111..JPP..MTM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
CE110 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
ILLUST NO. 2 OF 6(9704- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,2CE,4EFE..AE111,CE110,EE111..JPP |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
2CE..CE110 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82021 |
AE111,CE110,EE111..JPP 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE111,CE110,EE111..JPP..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82022 |
AE111,CE110,EE111..JPP 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09003 |
AE111,CE110,EE111..JPP 15A |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP..LHD 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
AE111,CE110,EE111..JPP..LHD 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90080-82023 |
AE111,CE110,EE111..JPP..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE111,CE110,EE111..JPP..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82021 |
AE111,CE110,EE111..JPP 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE111,CE110,EE111..JPP..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82022 |
AE111,CE110,EE111..JPP 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09003 |
AE111,CE110,EE111..JPP 15A |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP..LHD 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
AE111,CE110,EE111..JPP..LHD 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90080-82023 |
AE111,CE110,EE111..JPP..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE111,CE110,EE111..JPP..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AE111,CE110,EE111..JPP |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-13010 |
AE111,CE110,EE111..JPP (J) |
1 | ||
| 82623-13010 |
AE111,CE110,EE111 |
1 | ||
| 82623-02010 |
AE111,CE110,EE111..JPP (L) |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE111,CE110,EE111..JPP UPPER |
1 | ||
| 82661-12220 |
AE111,CE110,EE111..JPP LOWER |
1 | ||
| 82661-12200 |
AE111,CE110,EE111..JPP UPPER |
1 | ||
| 82661-12220 |
AE111,CE110,EE111..JPP LOWER |
1 | ||
| 82661-12210 |
AE111,CE110,EE111..JPP..LHD W(DAY TIME RUNNING LIGHT SYSTEM),UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE111,CE110,EE111..JPP UPPER |
1 | ||
| 82661-12220 |
AE111,CE110,EE111..JPP LOWER |
1 | ||
| 82661-12200 |
AE111,CE110,EE111..JPP UPPER |
1 | ||
| 82661-12220 |
AE111,CE110,EE111..JPP LOWER |
1 | ||
| 82661-12210 |
AE111,CE110,EE111..JPP..LHD W(DAY TIME RUNNING LIGHT SYSTEM),UPPER |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-12050 |
AE111,CE110,EE111..JPP |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12360 |
AE111,CE110,EE111..JPP |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-12010 |
AE111,CE110,EE111..JPP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12010 |
AE111,CE110,EE111..JPP |
1 | ||
| 82741-02010 |
AE111,CE110,EE111..JPP..LHD W(RUNNING LIGHT) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12010 |
AE111,CE110,EE111..JPP |
1 | ||
| 82741-02010 |
AE111,CE110,EE111..JPP..LHD W(RUNNING LIGHT) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CE110 |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-02010 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE111,CE110,EE111..JPP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-04002 |
AE111,CE110,EE111 |
1 | ||
| 85925-17010 |
AE111,CE110,EE111..JPP |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90084-98011 |
AE111,CE110,EE111..JPP PART NUMBER LABEL=90084-98011 |
1 | ||
| 90987-03003 |
AE111,CE110,EE111..JPP PART NUMBER LABEL=90987-03003 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87009 |
AE111,CE110,EE111..JPP PART NUMBER LABEL=90080-87009 |
1 | ||
| 90987-04004 |
AE111,CE110,EE111..JPP PART NUMBER LABEL=90987-04004 |
1 | ||
| 85927C - RELAY, COOLING FAN, NO.4 | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12220 |
CE110 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 90119-06539 | ||||
| 91511-G0620 | ||||
| 91611-60614 | ||||
| 91626-40620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

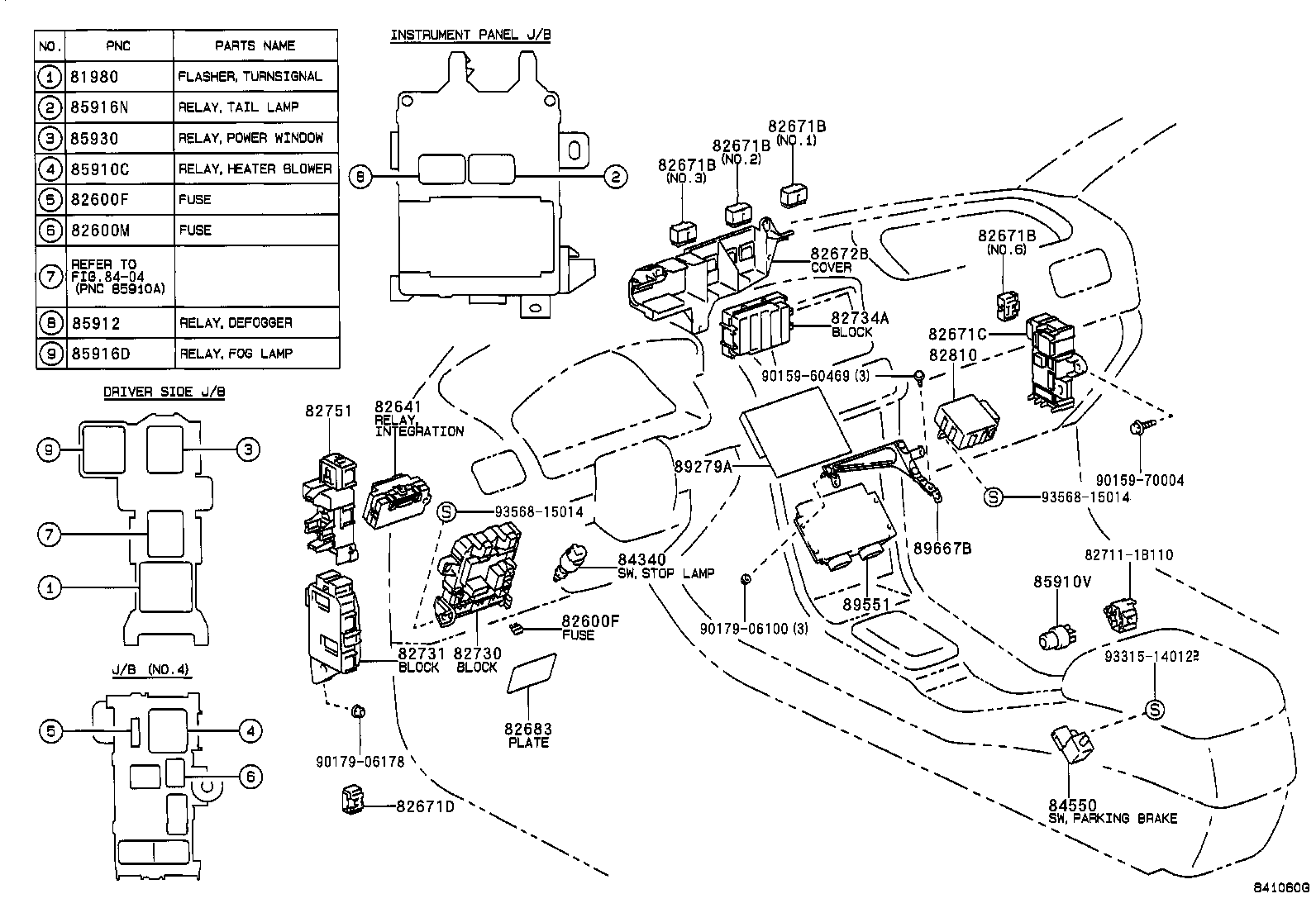

ILLUST NO. 4 OF 6(9704- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0W010 |
AE111,CE110,EE111..JPP TRIDON |
1 | ||
| 81980-12110 |
AE111,CE110,EE111 DENSO |
1 | ||
| 81980-12110 |
AE111,CE110,EE111 |
1 | ||
| 81980-32010 |
AE111,CE110,EE111..JPP DENSO |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82021 |
AE111,CE110,EE111..JPP 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE111,CE110,EE111..JPP..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82022 |
AE111,CE110,EE111..JPP 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09003 |
AE111,CE110,EE111..JPP 15A |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP..LHD 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
AE111,CE110,EE111..JPP..LHD 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90080-82023 |
AE111,CE110,EE111..JPP..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE111,CE110,EE111..JPP..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82021 |
AE111,CE110,EE111..JPP 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE111,CE110,EE111..JPP..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82022 |
AE111,CE110,EE111..JPP 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09003 |
AE111,CE110,EE111..JPP 15A |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP..LHD 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
AE111,CE110,EE111..JPP..LHD 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111,CE110,EE111..JPP 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90080-82023 |
AE111,CE110,EE111..JPP..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE111,CE110,EE111..JPP..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE111,CE110,EE111..JPP 40A,GREEN |
1 | ||
| 90982-10001 |
AE111,CE110,EE111..JPP 30A,PINK |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12150 |
EE111..JPP..LHD..(G6,LUNA,TERRA);AE111,CE110..JPP..LHD..(LUNA,TERRA) W(POWER DOOR LOCK) |
1 | ||
| 82641-12150 |
AE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA) W(POWER DOOR LOCK) |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30370 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) NO.1,6 |
2 | ||
| 82671-30360 |
AE111,CE110,EE111..JPP NO.2 |
1 | ||
| 82671-30350 |
AE111,CE110,EE111..JPP NO.3 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30370 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) NO.1,6 |
2 | ||
| 82671-30360 |
AE111,CE110,EE111..JPP NO.2 |
1 | ||
| 82671-30350 |
AE111,CE110,EE111..JPP NO.3 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30370 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) NO.1,6 |
2 | ||
| 82671-30360 |
AE111,CE110,EE111..JPP NO.2 |
1 | ||
| 82671-30350 |
AE111,CE110,EE111..JPP NO.3 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30370 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) NO.1,6 |
2 | ||
| 82671-30360 |
AE111,CE110,EE111..JPP NO.2 |
1 | ||
| 82671-30350 |
AE111,CE110,EE111..JPP NO.3 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12200 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12370 |
AE111,CE110,EE111..JPP |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-12210 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-02010 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-12020 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-12010 |
AE111,CE110,EE111..JPP |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-13010 |
AE111,CE110,EE111..JPP |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-12160 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE111,CE110,EE111..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE111,CE110,EE111..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE111,CE110,EE111..JPP |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02004 |
AE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP PART NUMBER LABEL=90987-02012 |
1 | ||
| 90080-87008 |
AE111,CE110,EE111..JPP PART NUMBER LABEL=90080-87008 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP..(G6,LUNA) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| Common parts | ||||
| 82711-1B110 | ||||
| 90159-60469 | ||||
| 90159-70004 | ||||
| 90179-06100 | ||||
| 90179-06178 | ||||
| 93315-14012 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8404 | ||||

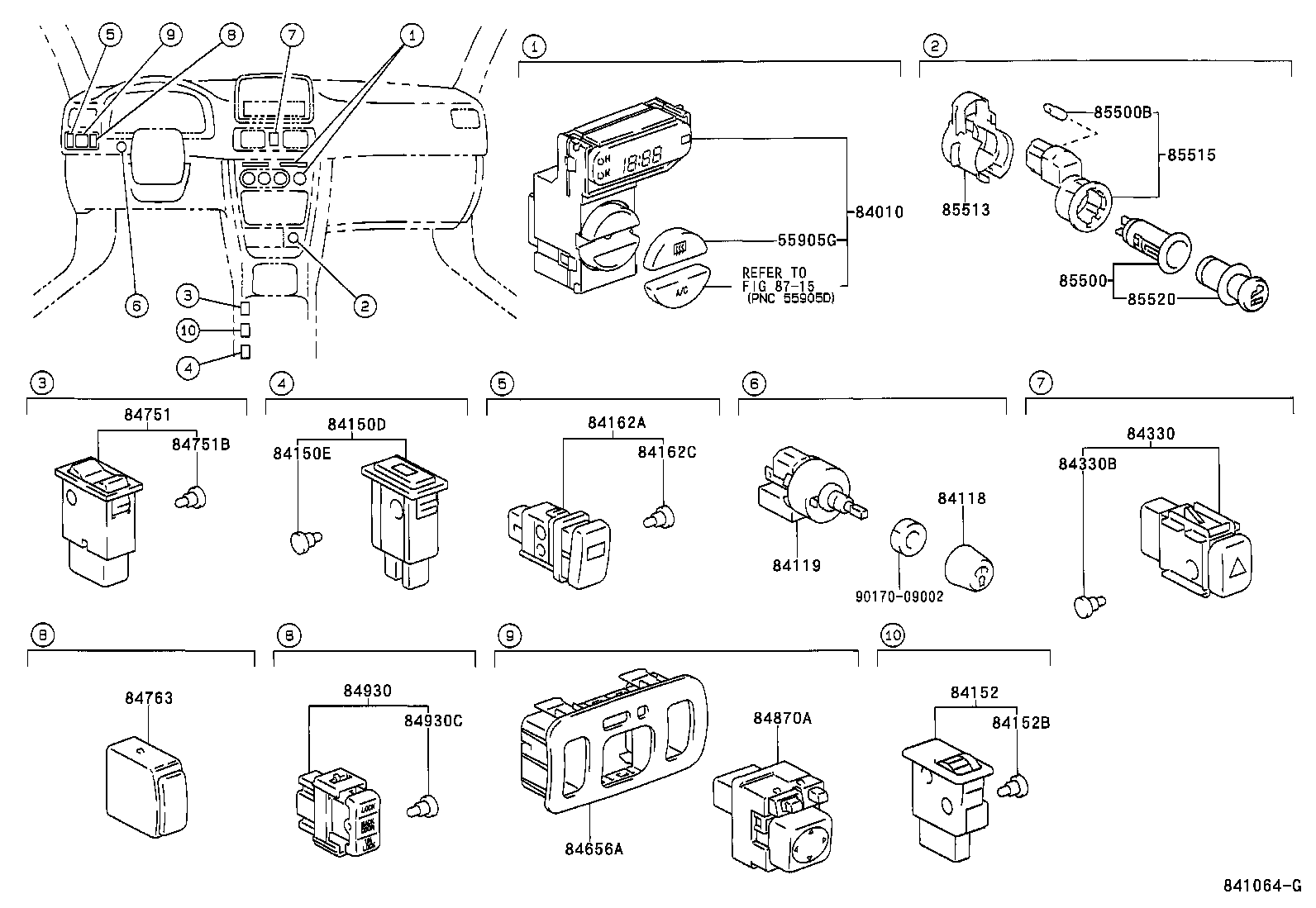

ILLUST NO. 3 OF 6(9704-9910)JPP..LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12560B0 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM0# |
1 | ||
| 55905-12560B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55905-12560B1 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12560B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84010-12090B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) W(AIR CONDITIONER),SHADOW GRAY,TRIM0# |
1 | ||
| 84010-12090B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12090B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(AIR CONDITIONER),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 84010-12090B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(AIR CONDITIONER),SHADOW GRAY,TRIM12 |
1 | ||
| 84010-12110B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 84010-12110B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM0# |
1 | ||
| 84010-12110B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12090B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(AIR CONDITIONER),DK.CHARCOAL,TRIM0#,10,12 |
1 | ||
| 84010-12110B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12180 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-12020 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10320 |
AE111,CE110,EE111..JPP..LHD 14V 0.84W |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-20030 |
AE111,CE110,EE111..JPP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
AE111,CE110,EE111..JPP 14V 40MA, GREEN |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-12030 |
AE111,CE110,EE111 |
1 | ||
| 84165-12040 |
AE111,CE110,EE111..JPP |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-09005 |
AE111,CE110,EE111..JPP 14V40MA,W(GREEN CAP) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12400 |
AE111,CE110,EE111..JPP |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
AE111,CE110,EE111..JPP 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B1 |
AE111,CE110,EE111..LUNA;AE111,CE110,EE111..LHD..TERRA W(ELECTRIC REMOTE CONTOROL MIRROR),DK.CHARCOAL,TRIM1# |
1 | ||
| 84656-12060B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1# |
1 | ||
| 84656-12040B0 |
AE111,CE110,EE111..LUNA;AE111,CE110,EE111..LHD..TERRA W(ELECTRIC REMOTE CONTOROL MIRROR),SHADOW GRAY,TRIM0# |
1 | ||
| 84656-12060B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 84656-12040B0 |
AE111,CE110,EE111..JPP..LUNA;AE111,CE110,EE111..JPP..LHD..TERRA W(ELECTRIC REMOTE CONTOROL MIRROR),SHADOW GRAY,TRIM12 |
1 | ||
| 84656-12060B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 84656-12040B1 |
AE111,CE110,EE111..JPP..LUNA;AE111,CE110,EE111..JPP..LHD..TERRA W(ELECTRIC REMOTE CONTOROL MIRROR),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 84656-12060B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12050 |
AE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA) 12V 0.87W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-12110B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 84763-12110B0 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM0# |
1 | ||
| 84763-12110B1 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 84763-12110B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12130 |
AE111,CE110,EE111..JPP..(G6,LUNA);AE111,CE110,EE111..JPP..LHD..TERRA |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12160 |
AE111,CE110,EE111..JPP..TERRA;AE111,CE110,EE111..JPP..LHD..(G6,LUNA) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
AE111,CE110,EE111..JPP..TERRA;AE111,CE110,EE111..JPP..LHD..(G6,LUNA) 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE111,CE110,EE111..JPP |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01015 |
AE111,CE110,EE111..JPP 14V 1.4W,W(CAP) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE111,CE110,EE111..JPP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12100 |
AE111,CE110,EE111..JPP |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 5 OF 6(9704- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AE111,CE110,EE111..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12430 |
AE111,CE110,EE111..JPP..(G6,LUNA) W(FRONT FOG LAMP) |
1 | ||
| 84140-44010 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02030 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84306-12070 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84306-12070 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E190 |
AE111,CE110,EE111..JPP..(G6,LUNA) W(FRONT FOG LAMP) |
1 | ||
| 84310-1E460 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AE111,CE110,EE111..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44010 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 6(9704- )LB
ROOF,FLOOR,DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12521 |
CE110 |
1 | ||
| 83320-12522 |
CE110 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12521 |
CE110 |
1 | ||
| 83320-12522 |
CE110 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AE111,CE110,EE111..JPP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AE111,CE110,EE111..JPP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
AE111,CE110,EE111..JPP..LB |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
AE111,CE110,EE111..JPP..LB |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12110 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE111,CE110,EE111..JPP..LB..LUNA |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE111,CE110,EE111..JPP..LB..LUNA |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12340 |
AE111,CE110,EE111..JPP..LHD..LB..LUNA |
1 | ||
| 84820-12360 |
AE111,CE110,EE111..LHD..LB W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820-12400 |
AE111,CE110,EE111..JPP..LHD..LB W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12340 |
AE111,CE110,EE111..JPP..LHD..LB..LUNA |
1 | ||
| 84820-12360 |
AE111,CE110,EE111..LHD..LB W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820-12400 |
AE111,CE110,EE111..JPP..LHD..LB W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12061 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90164-40103 | ||||
| 90167-70002 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93540-44012 | ||||
| Linked diagrams | ||||
| 7401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
