Toyota Corolla hb/lb CE110 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
COROLLA HB/LB
CE110L-ALMDEW (1997)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

CE110L-ALMDEW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999

Engine 2CE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

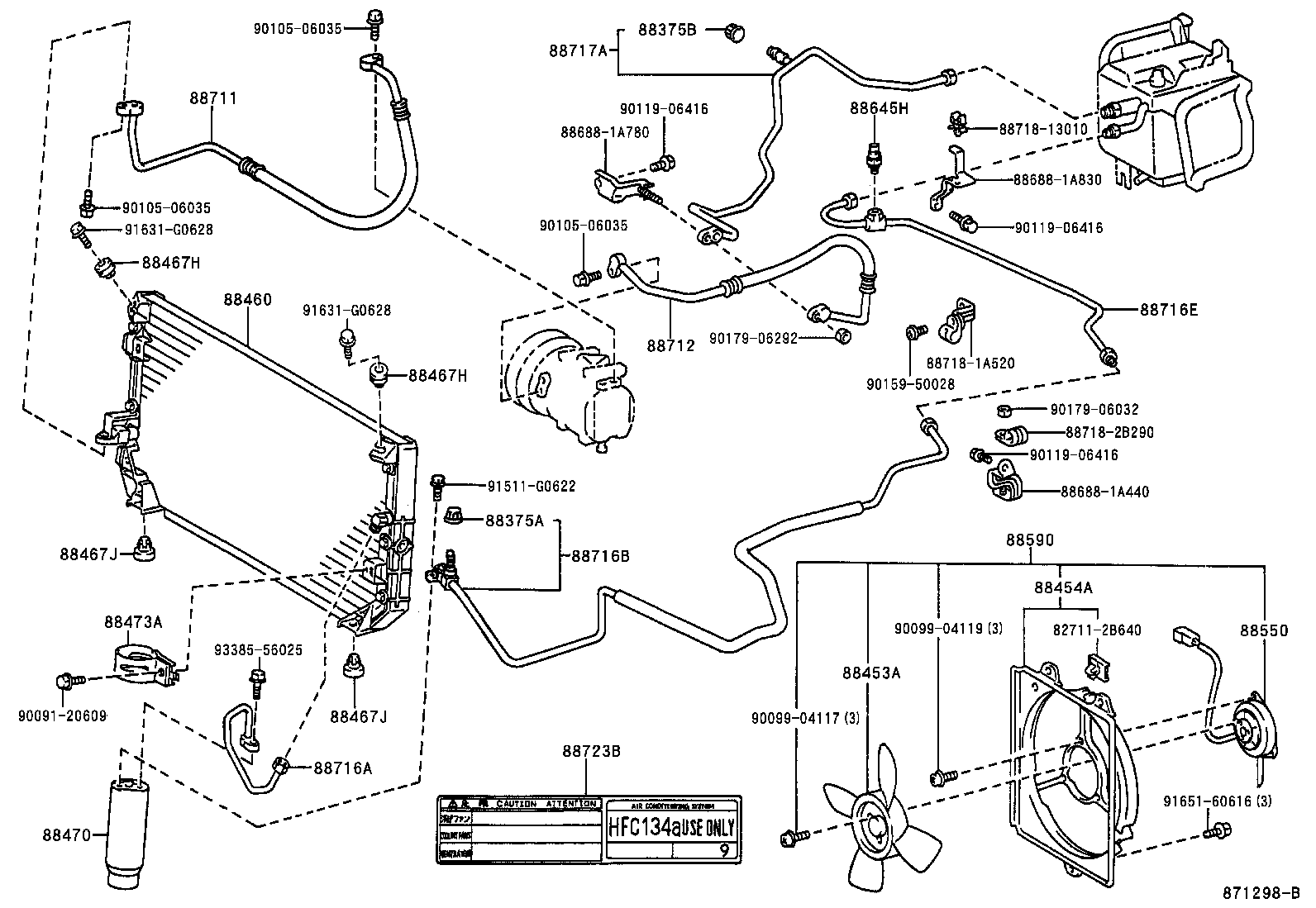

ILLUST NO. 1 OF 2(9704- )CE110..LHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88453A - FAN, COOLING
88453-12070	CE110	04/1997 - 10/1999	1
88454A - SHROUD, FAN
88454-12140	CE110	04/1997 - 10/1999	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88473A - HOLDER, RECEIVER
88473-20070	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	CE110	04/1997 - 10/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12220	CE110	04/1997 - 10/1999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A500	CE110	04/1997 - 10/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A620	CE110..LHD	04/1997 - 10/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A460	CE110..LHD MAKER OPTION	04/1997 - 10/1999	1
88716-1A490	CE110 DEALER OPTION	04/1997 - 10/1999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A450	CE110..LHD	04/1997 - 10/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A090	CE110..LHD	04/1997 - 10/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
Common parts
82711-2B640
88688-1A440
88688-1A780
88688-1A830
88718-13010
88718-1A520
88718-2B290
90091-20609
90099-04117
90099-04119
90105-06035
90119-06416
90159-50028
90179-06032
90179-06292
91511-G0622
91631-G0628
91651-60616
93385-56025

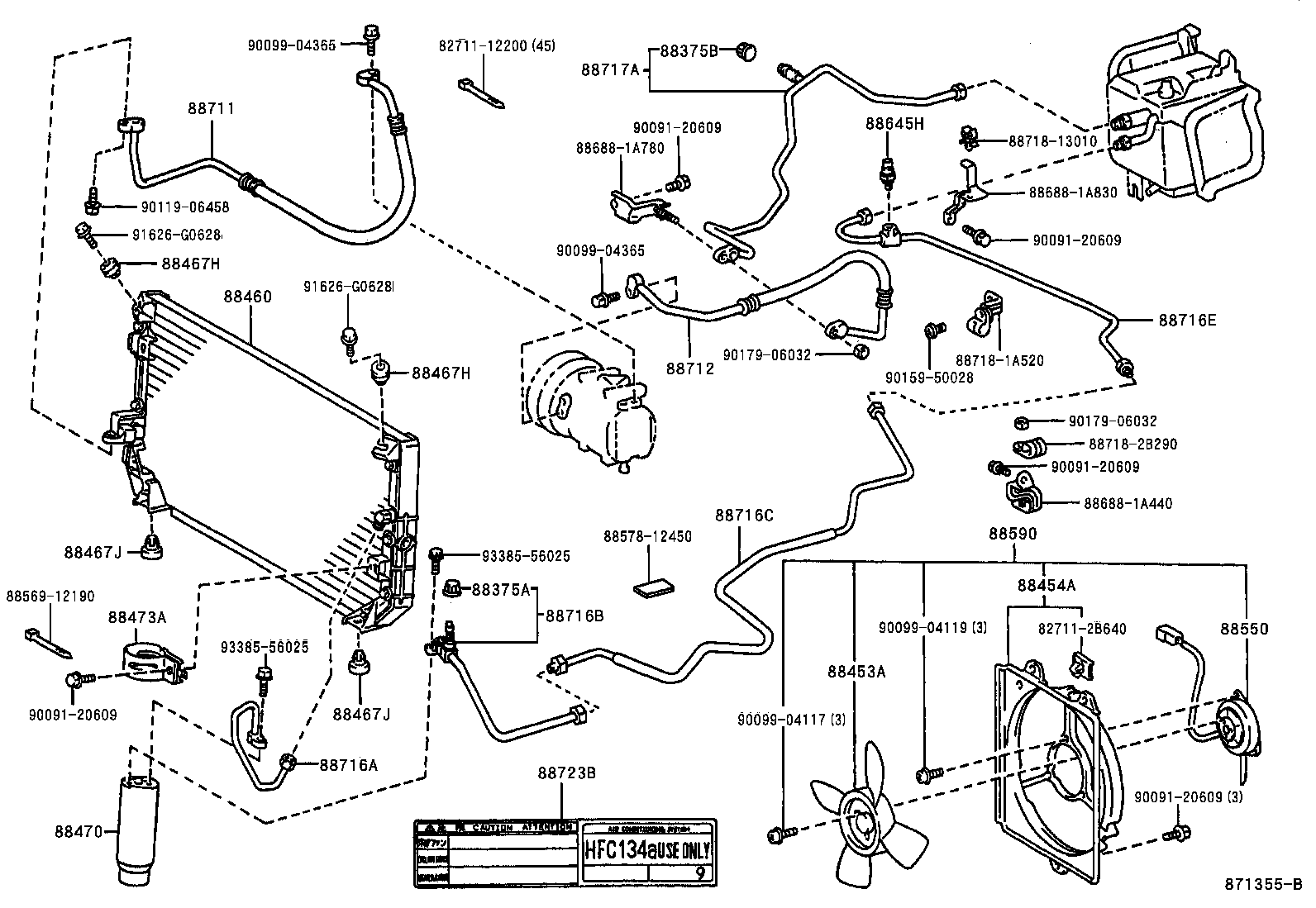

ILLUST NO. 1 OF 2(9704- )CE110..LHD

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88453A - FAN, COOLING
88453-12070	CE110	04/1997 - 10/1999	1
88454A - SHROUD, FAN
88454-12140	CE110	04/1997 - 10/1999	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE111,CE110,EE111..JPP	04/1997 - 10/1999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88473A - HOLDER, RECEIVER
88473-20070	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	CE110	04/1997 - 10/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12220	CE110	04/1997 - 10/1999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A500	CE110	04/1997 - 10/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A620	CE110..LHD	04/1997 - 10/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A460	CE110..LHD MAKER OPTION	04/1997 - 10/1999	1
88716-1A490	CE110 DEALER OPTION	04/1997 - 10/1999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-1A510	CE110..LHD	04/1997 - 10/1999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A450	CE110..LHD	04/1997 - 10/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A090	CE110..LHD	04/1997 - 10/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
Common parts
82711-12200
82711-2B640
88569-12190
88578-12450
88688-1A440
88688-1A780
88688-1A830
88718-13010
88718-1A520
88718-2B290
90091-20609
90099-04117
90099-04119
90099-04365
90119-06458
90159-50028
90179-06032
91626-G0628
93385-56025

CE110L-ALMDEW (1997)

ILLUST NO. 2 OF 2(9704- )

ILLUST NO. 1 OF 2(9704- )CE110..LHD

ILLUST NO. 1 OF 2(9704- )CE110..LHD
