CE110L-ALMDEW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )AE111,CE110,EE111..LHD

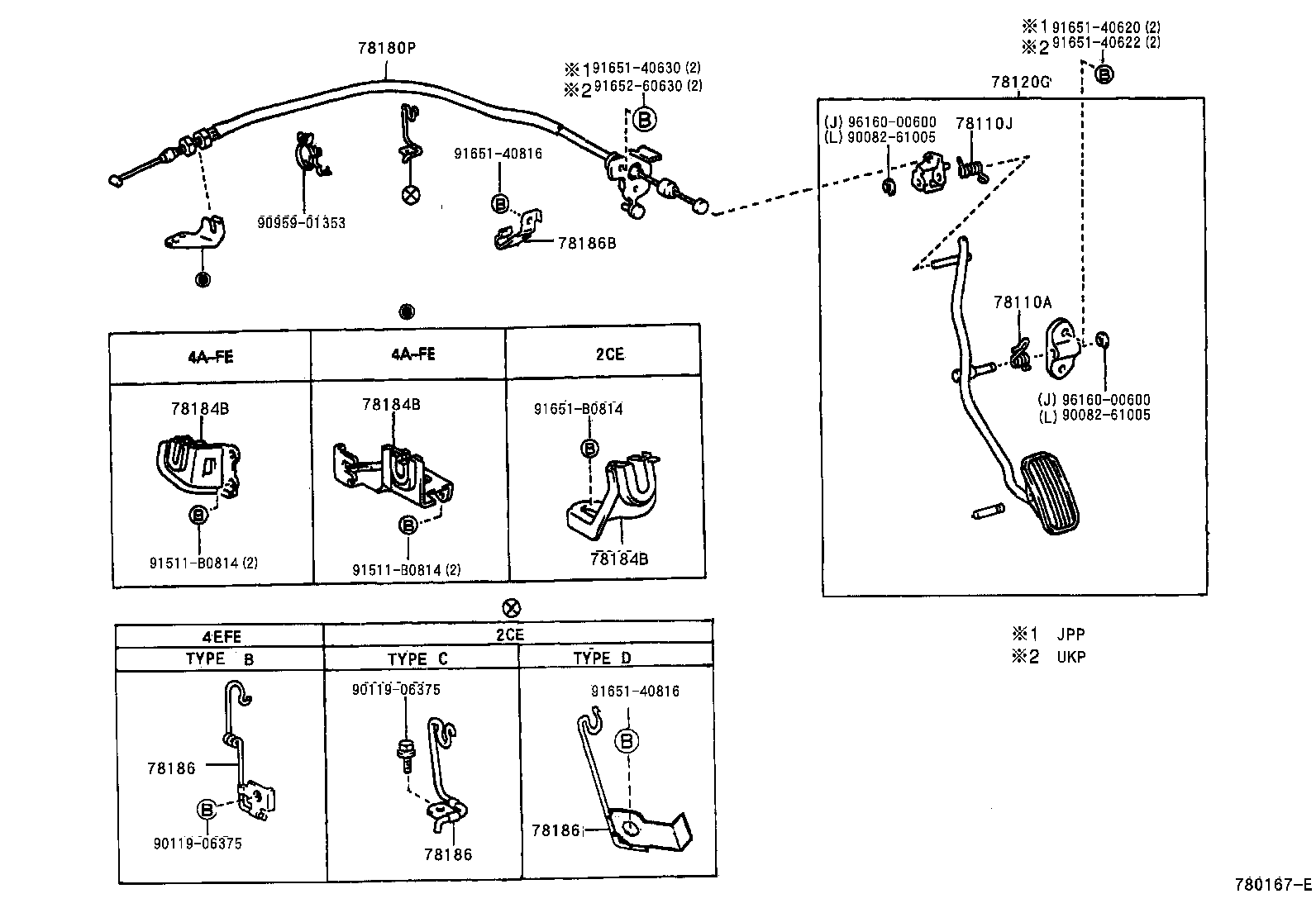

Click highlighted areas on diagram

diagram 78110A 78110J 78120G 78180P 78184B 78184B 78184B 78186 78186 78186 78186B 9008261005 9008261005 9011906375 9011906375 9095901353 91511B0814 91511B0814 9165140620 9165140622 9165140630 9165140816 9165140816 91651B0814 9165260630 9616000600 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

AE111..JPP..LB;EE111..JPP..3FC;AE111..LHD..HB..LUNA;AE111..HB..(G6,TERRA);CE110..LHD..(LUNA,TERRA)

 1
90508-18025

AE111;CE110..LHD;EE111..3FC

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12230

EE111..JPP..LHD..3FC;AE111,CE110..JPP..LHD..MTM..(G6,LUNA,TERRA)

 1
78120-12230

EE111..LHD..3FC;AE111,CE110..LHD..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A620

CE110..LHD

 1
78180-1A620

CE110..LHD..(LUNA,TERRA)

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12030

CE110

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12030

CE110

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78024-12030

CE110

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78183-12180

CE110

TYPE C:REFER TO ILLUSTRATION

 1
78183-12190

CE110..LHD

TYPE D:REFER TO ILLUSTRATION

 1
78183-12180

CE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA

TYPE C:REFER TO ILLUSTRATION

 1
78183-12190

CE110..LHD..(LUNA,TERRA)

TYPE D:REFER TO ILLUSTRATION

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78183-12180

CE110

TYPE C:REFER TO ILLUSTRATION

 1
78183-12190

CE110..LHD

TYPE D:REFER TO ILLUSTRATION

 1
78183-12180

CE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA

TYPE C:REFER TO ILLUSTRATION

 1
78183-12190

CE110..LHD..(LUNA,TERRA)

TYPE D:REFER TO ILLUSTRATION

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78183-12180

CE110

TYPE C:REFER TO ILLUSTRATION

 1
78183-12190

CE110..LHD

TYPE D:REFER TO ILLUSTRATION

 1
78183-12180

CE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA

TYPE C:REFER TO ILLUSTRATION

 1
78183-12190

CE110..LHD..(LUNA,TERRA)

TYPE D:REFER TO ILLUSTRATION

 1
78186B - SUPPORT, ACCELERATOR CONTROL CABLE NO.2
78186-12320

CE110..LHD..(LUNA,TERRA)

 1
78186-12320

CE110..LHD

 1
Common parts
90082-61005
90119-06375
90959-01353
91511-B0814
91651-40620
91651-40622
91651-40630
91651-40816
91651-B0814
91652-60630
96160-00600
