CE110L-ALMDEW (1997)
Toyota Corolla Hb/Lb
ILLUST NO. 2 OF 2(9704- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12760 |
AE111,CE110,EE111..JPP..LB W(POWER WINDOW) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12760 |
AE111,CE110,EE111..JPP..LB W(POWER WINDOW) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12260 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12260 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12240 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12240 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-12170 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-12170 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
AE111,CE110,EE111..JPP..LB |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12320 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12130 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-12040 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12030 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE111,CE110,EE111..JPP..LB |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE111,CE110,EE111..JPP..LB |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12450 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12450 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12580 |
AE111,CE110,EE111..JPP..LB *TT,T=3.5,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12590 |
AE111,CE110,EE111..JPP..LB *TT,T=3.5,GREEN |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12220 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12130 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12080 |
AE111,CE110,EE111..JPP..LB RH |
1 | ||
| 68640-02040 |
AE111,CE110,EE111..JPP..LB PLANT TMUK, LH |
1 | ||
| 68640-12030 |
AE111,CE110,EE111..JPP..LB LH |
1 | ||
| 68630-02040 |
AE111,CE110,EE111..JPP..LB PLANT TMUK, RH |
1 | ||
| Common parts | ||||
| 90105-06229 | ||||
| 90109-08295 | ||||
| 90149-80030 | ||||
| 90167-50022 | ||||
| 90541-09069 | ||||
| 90901-19020 | ||||
| 93520-A4016 | ||||

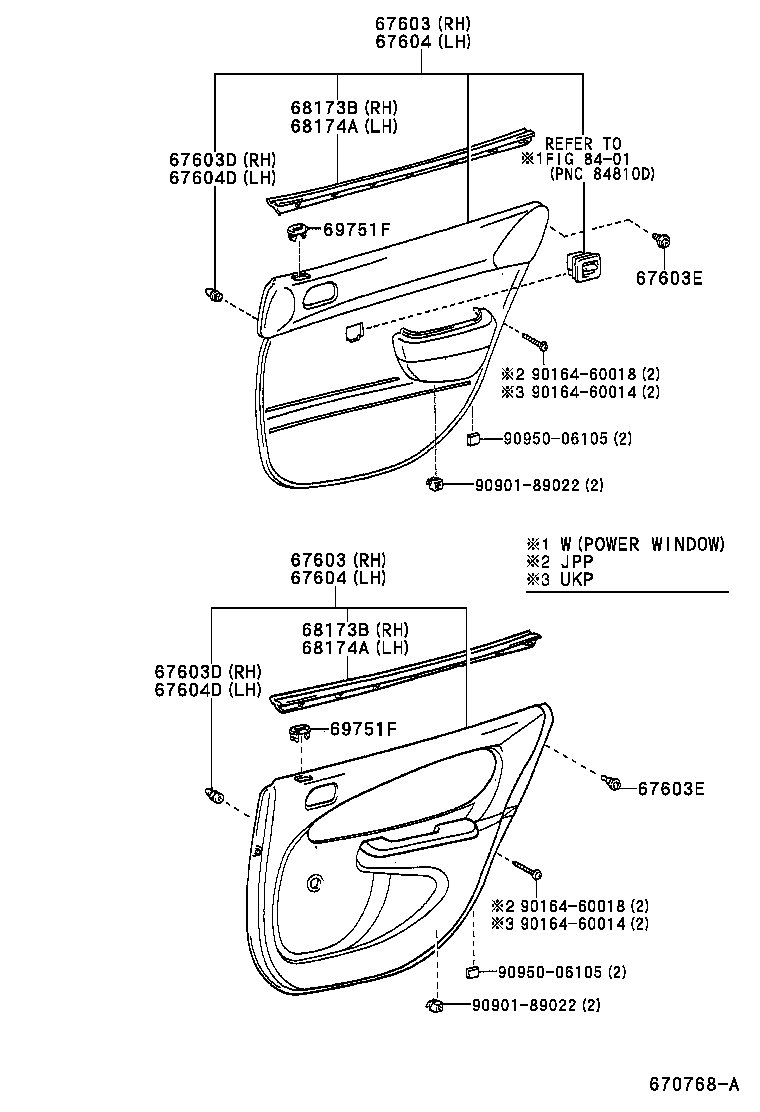

ILLUST NO. 1 OF 2(9704- )ZZE112..HB..MTM ; (9704- )ZZE112..LHD..HB..4FC ; (9704- )AE111,CE1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1H370A1 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67630-1H370B1 |
AE111,CE110,EE111..LB..TERRA MD. CHARCOAL,TRIM1# |
1 | ||
| 67630-1H810A0 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67630-1K070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) G6 GRADE PACKAGE & W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1H810B0 |
AE111,CE110,EE111..LB..TERRA MD.CHARCOAL.,TRIM1# |
1 | ||
| 67630-1K010A1 |
AE111,CE110,EE111..JPP..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67630-1K010B3 |
AE111,CE110,EE111..JPP..LB..TERRA SHADOW GRAY,TRIM12 |
1 | ||
| 67630-1K010B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM1# |
1 | ||
| 67630-1K010B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM10 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1H370A1 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67630-1H370B1 |
AE111,CE110,EE111..LB..TERRA MD. CHARCOAL,TRIM1# |
1 | ||
| 67630-1H810A0 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67630-1K070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) G6 GRADE PACKAGE & W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1H810B0 |
AE111,CE110,EE111..LB..TERRA MD.CHARCOAL.,TRIM1# |
1 | ||
| 67630-1K010A1 |
AE111,CE110,EE111..JPP..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67630-1K010B3 |
AE111,CE110,EE111..JPP..LB..TERRA SHADOW GRAY,TRIM12 |
1 | ||
| 67630-1K010B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM1# |
1 | ||
| 67630-1K010B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM10 |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE111,CE110,EE111..JPP..LB |
5 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE111,CE110,EE111..JPP..LB |
5 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-06133C0 |
AE111,CE110,EE111..LB..(LUNA,TERRA) BLACK,TRIM0#,1# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
4 | ||
| 90467-06133C0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) BLACK,TRIM0#,10,12 |
4 | ||
| 90467-06133A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) IVORY,TRIM0# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE111..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06133B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-06133C0 |
AE111,CE110,EE111..LB..(LUNA,TERRA) BLACK,TRIM0#,1# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
4 | ||
| 90467-06133C0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) BLACK,TRIM0#,10,12 |
4 | ||
| 90467-06133A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) IVORY,TRIM0# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE111..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06133B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1H370B1 |
AE111,CE110,EE111..LB..TERRA MD. CHARCOAL,TRIM1# |
1 | ||
| 67640-1H790B0 |
AE111,CE110,EE111..LB..TERRA MD.CHARCOAL.,TRIM1# |
1 | ||
| 67640-1H790A0 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67640-1K070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) G6 GRADE PACKAGE & W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H890A1 |
AE111,CE110,EE111..JPP..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67640-1H370A1 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67640-1H890B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM10 |
1 | ||
| 67640-1H890B3 |
AE111,CE110,EE111..JPP..LB..TERRA SHADOW GRAY,TRIM12 |
1 | ||
| 67640-1H890B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1H370B1 |
AE111,CE110,EE111..LB..TERRA MD. CHARCOAL,TRIM1# |
1 | ||
| 67640-1H790B0 |
AE111,CE110,EE111..LB..TERRA MD.CHARCOAL.,TRIM1# |
1 | ||
| 67640-1H790A0 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67640-1K070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) G6 GRADE PACKAGE & W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H890A1 |
AE111,CE110,EE111..JPP..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67640-1H370A1 |
AE111,CE110,EE111..LB..TERRA IVORY,TRIM0# |
1 | ||
| 67640-1H890B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM10 |
1 | ||
| 67640-1H890B3 |
AE111,CE110,EE111..JPP..LB..TERRA SHADOW GRAY,TRIM12 |
1 | ||
| 67640-1H890B0 |
AE111,CE110,EE111..JPP..LB..TERRA MD.CHARCOAL,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE111,CE110,EE111..JPP..LB |
5 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE111,CE110,EE111..JPP..LB |
5 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-12260 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-12260 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-12120 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-12120 |
AE111,CE110,EE111..JPP..LB |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
2 | ||
| 69751-12070B1 |
AE111,CE110,EE111..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
2 | ||
| 69751-12070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
2 | ||
| 69751-12070A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) IVORY,TRIM0# |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B1 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
2 | ||
| 69751-12070B1 |
AE111,CE110,EE111..LB..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
2 | ||
| 69751-12070B0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
2 | ||
| 69751-12070A0 |
AE111,CE110,EE111..JPP..LB..(LUNA,TERRA) IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 8401 | ||||
