CE110L-ALMDEW (1997)
Toyota Corolla Hb/Lb
ILLUST NO. 1 OF 2(9704- )JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12290 |
AE111,CE110,EE111..LHD |
1 | ||
| 55306-12290 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12270 |
AE111,CE110,EE111..LHD |
1 | ||
| 55307-12270 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12260 |
AE111,CE110,EE111 |
1 | ||
| 55308-12260 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12340 |
AE111,CE110,EE111..LHD |
1 | ||
| 55330-12340 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55330-12341 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-12550B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1# |
1 | ||
| 55401-12540B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55401-12550B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM0# |
1 | ||
| 55401-12550B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1# |
1 | ||
| 55401-12540B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55401-12540B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55401-12550B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55401-12470B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55401-12540B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM0# |
1 | ||
| 55401-12540B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55401-12550B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM12 |
1 | ||
| 55401-12560B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55401-12470B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55401-12560B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM12 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12230 |
AE111,CE110,EE111..LHD |
1 | ||
| 55950-12230 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-12040 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55990-12040 |
AE111,CE110,EE111..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12090 |
AE111,CE110,EE111..LHD |
1 | ||
| 73960-12090 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
AE111,CE110,EE111 |
1 | ||
| 74598-20010 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| Common parts | ||||
| 90105-06170 | ||||
| 90105-08120 | ||||
| 90159-70004 | ||||
| 90179-06125 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90467-15024 | ||||
| 91651-60816 | ||||
| 93568-15016 | ||||
| 93568-55014 | ||||

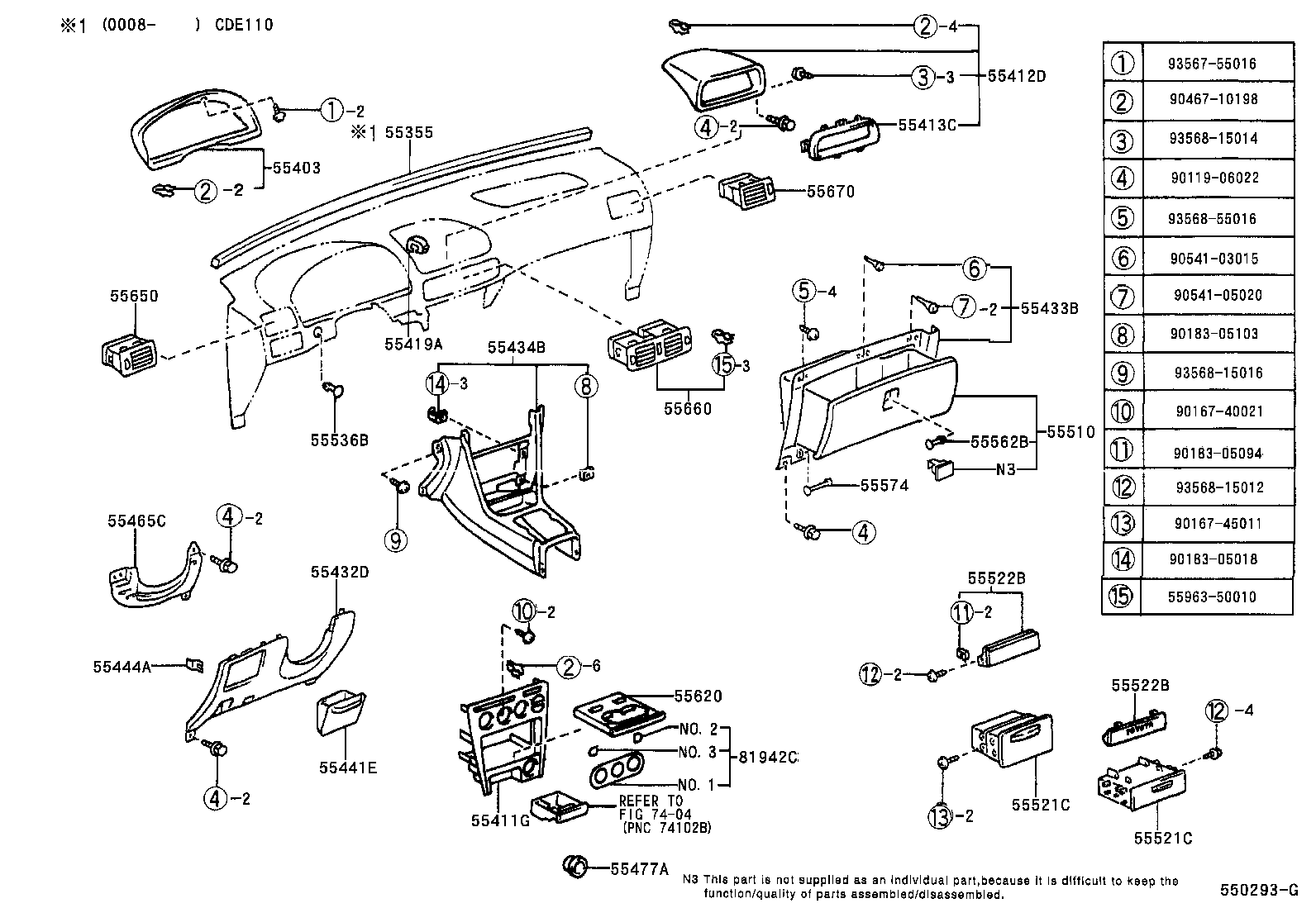

ILLUST NO. 2 OF 2(9704- )JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-12020 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55403-12020 |
AE111,CE110,EE111..LHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-12908B1 |
AE111,CE110,EE111..LHD..(STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55411-12908B1 |
AE111,CE110..JPP..LHD..TERRA;EE111..JPP..LHD..(STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55411-12908B0 |
AE111,CE110,EE111..JPP..LHD..TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 55411-12908B0 |
AE111,CE110,EE111..JPP..LHD..TERRA SHADOW GRAY,TRIM12 |
1 | ||
| 55411-12908B1 |
AE111,CE110,EE111..JPP..LHD..TERRA DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55411-12908B0 |
AE111,CE110,EE111..JPP..LHD..TERRA SHADOW GRAY,TRIM0#,12 |
1 | ||
| 55411-12908B1 |
AE111,CE110,EE111..JPP..LHD..TERRA DK.CHARCOAL,TRIM10 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1A070B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) W/O(RADIO),DK.CHARCOAL,TRIM1# |
1 | ||
| 55405-1A060B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) W(RADIO),SHADOW GRAY,TRIM0# |
1 | ||
| 55405-1A060B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) W(RADIO),DK.CHARCOAL,TRIM1# |
1 | ||
| 55405-1A070B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) W/O(RADIO),SHADOW GRAY,TRIM0# |
1 | ||
| 55405-1A070B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) W/O(RADIO),DK.CHARCOAL,TRIM1# |
1 | ||
| 55405-1A070B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W/O(RADIO),SHADOW GRAY,TRIM12 |
1 | ||
| 55405-1A060B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(RADIO),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55405-1A060B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W(RADIO),SHADOW GRAY,TRIM12 |
1 | ||
| 55405-1A070B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) W/O(RADIO),DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-12480 |
AE111,CE110,EE111..LHD |
1 | ||
| 55413-12470 |
AE111,CE110,EE111..LHD W(RADIO) |
1 | ||
| 55413-12470 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) W(RADIO) |
1 | ||
| 55413-12480 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-12070 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
2 | ||
| 55419-12070 |
AE111,CE110,EE111 |
2 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-12400B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55432-12400B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 55432-12400A0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 55432-12400B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55432-12400B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12170B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55433-12170A0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 55433-12170B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55433-12170B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 55433-12170B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12180B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55434-12180B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55434-12180B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55434-12180A0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 55434-12180B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-12140B1 |
AE111,CE110,EE111..LUNA,STD,TERRA MD.CHARCOAL,TRIM1# |
1 | ||
| 55441-12140A0 |
AE111..JPP..LB;AE111..HB..TERRA;EE111..JPP..3FC..LUNA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA IVORY,TRIM0# |
1 | ||
| 55441-12140B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA MD.CHARCOAL,TRIM1# |
1 | ||
| 55441-12140B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 55441-12140B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55441-12140A0 |
AE111,CE110,EE111..LUNA,TERRA IVORY,TRIM0# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12050 |
AE111,CE110,EE111 |
1 | ||
| 55444-12050 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 55465C - INSERT, INSTRUMENT PANEL LOWER PAD, LH | ||||
| 55465-12060 |
AE111,CE110,EE111..LHD |
1 | ||
| 55465-12060 |
EE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA) |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-33010 |
AE111,CE110,EE111 |
1 | ||
| 55477-33010 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12370B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55550-12370A0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 55550-12370B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55550-12370B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 55550-12370B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-12010B0 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0# |
1 | ||
| 55520-12010B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1# |
1 | ||
| 55520-12010B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK.CHARCOAL,TRIM1# |
1 | ||
| 55520-12010B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 55520-12010B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55520-12010B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-12010B0 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0# |
1 | ||
| 55520-12010B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1# |
1 | ||
| 55520-12010B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK.CHARCOAL,TRIM1# |
1 | ||
| 55520-12010B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 55520-12010B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55520-12010B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12120 |
AE111,CE110,EE111 |
1 | ||
| 55522-12120 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12120 |
AE111,CE110,EE111 |
1 | ||
| 55522-12120 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-12020B0 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0# |
1 | ||
| 55536-12020B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 55536-12020B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK CHACOAL,TRIM1# |
1 | ||
| 55536-12020B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK CHACOAL,TRIM0#,10 |
1 | ||
| 55536-12020B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55536-12020B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK CHACOAL,TRIM1# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
AE111,CE110,EE111..JPP |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE111,CE110,EE111 |
2 | ||
| 55574-10010 |
CE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-12030B0 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0# |
1 | ||
| 55604-12030B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1# |
1 | ||
| 55604-12030B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55604-12030B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK.CHARCOAL,TRIM1# |
1 | ||
| 55604-12030B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55604-12030B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12230B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55650-12230B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55650-12230B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55650-12230B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55650-12230B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12280B1 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0# |
1 | ||
| 55660-12280B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55660-12280B0 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1# |
1 | ||
| 55660-12280B1 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0# |
1 | ||
| 55660-12280B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 55660-12280B0 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK.CHARCOAL,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12270B0 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-12270B0 |
EE111..LHD..(3FC,5F);AE111,CE110..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-12270B1 |
AE111,CE110,EE111..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM0# |
1 | ||
| 55670-12270B0 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55670-12270B1 |
AE111,CE110,EE111..JPP..LHD..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-12450B1 |
EE111..LHD..TERRA;AE111,CE110..LHD..(STD,TERRA) DK.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 81942-12520B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0#,NO.3 |
1 | ||
| 81942-12510B0 |
AE111,CE110,EE111..LUNA,TERRA SHADOW GRAY,TRIM0#,NO.2 |
1 | ||
| 81942-12510B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1#,NO.2 |
1 | ||
| 81942-12450B0 |
AE111,CE110,EE111..LHD..TERRA SHADOW GRAY,TRIM0#,NO.1 |
1 | ||
| 81942-12510B0 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0#,NO.2 |
1 | ||
| 81942-12520B1 |
AE111,CE110,EE111..LUNA,STD,TERRA DK.CHARCOAL,TRIM1#,NO.3 |
1 | ||
| 81942-12510B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK.CHARCOAL,TRIM1#,NO.2 |
1 | ||
| 81942-12520B1 |
AE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA DK.CHARCOAL,TRIM1#,NO.3 |
1 | ||
| 81942-12450B1 |
AE111,CE110,EE111..JPP..LHD..TERRA DK.CHARCOAL,TRIM0#,10,NO.1 |
1 | ||
| 81942-12510B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12,NO.2 |
1 | ||
| 81942-12520B0 |
AE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA SHADOW GRAY,TRIM0#,NO.3 |
1 | ||
| 81942-12450B1 |
AE111,CE110,EE111..LHD..TERRA DK.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 81942-12510B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10,NO.2 |
1 | ||
| 81942-12520B0 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) SHADOW GRAY,TRIM12,NO.3 |
1 | ||
| 81942-12520B1 |
AE111,CE110,EE111..JPP..(LUNA,TERRA) DK.CHARCOAL,TRIM0#,10,NO.3 |
1 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90119-06022 | ||||
| 90167-40021 | ||||
| 90167-45011 | ||||
| 90183-05018 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-10198 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-15014 | ||||
| 93568-15016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
