3304 - SPEEDOMETER DRIVEN GEAR (MTM)

CE110L-AGMNEW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999

Engine 2CE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9704- )EE111..MTM ; (9704- )AE111..RHD..MTM ; (9808- )AE111..LHD..G6 ; (9

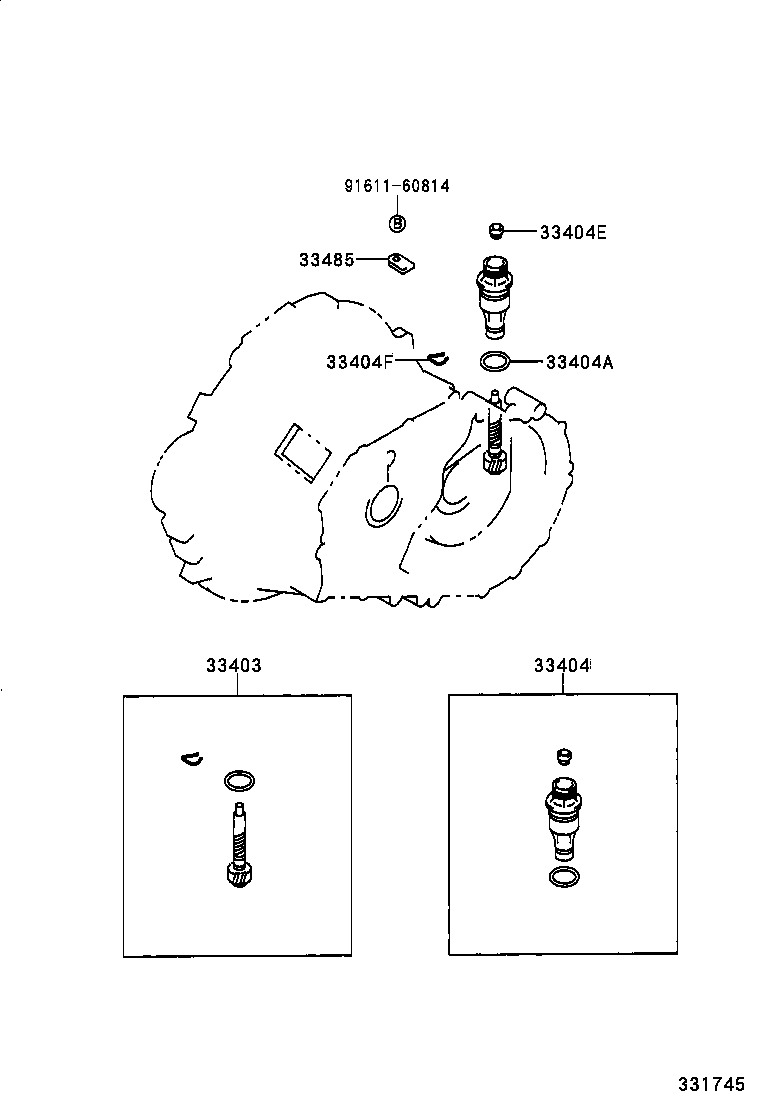

Click highlighted areas on diagram

C50,C52,C140,C150,C161

diagram

Part #	Description	Period	Qty	Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39115	CE110 N=22,MARK 22:25	04/1997 - 10/1999	1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-16010	CE110	04/1997 - 10/1999	1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24018	CE110	04/1997 - 10/1999	1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001	AE111..JPP..RHD..MTM;CE110,EE111..JPP..MTM	04/1997 - 10/1999	1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005	AE111,CE110,EE111..JPP..MTM	04/1997 - 10/1999	1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-14010	CE110	04/1997 - 10/1999	1
Common parts
91611-60814

(9704-9910)CE110

Click highlighted areas on diagram

S50

diagram

Part #	Description	Period	Qty	Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39115	CE110 N=22,MARK 22:25	04/1997 - 10/1999	1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-16010	CE110	04/1997 - 10/1999	1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24018	CE110	04/1997 - 10/1999	1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001	AE111..JPP..RHD..MTM;CE110,EE111..JPP..MTM	04/1997 - 10/1999	1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005	AE111,CE110,EE111..JPP..MTM	04/1997 - 10/1999	1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-14010	CE110	04/1997 - 10/1999	1
Common parts
91611-60612
