CE110L-AGMDEW (1997)
Toyota Corolla Hb/Lb
ILLUST NO. 7 OF 7(9704- )AE111,CDE110,CE110,EE111,ZZE11# ; (9912- )WZE110..LB ; (0001- )WZE
FUSIBLE LINK REPAIR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12080 |
CE110 |
1 | ||
ILLUST NO. 1 OF 7(9704- )CE110
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82011 - WIRING ASSY, BRAKE WARNING SYSTEM | ||||
| 82011-12020 |
CE110 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1N820 |
CE110..LHD |
1 | ||
| 82121-1N821 |
CE110..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12330 |
CE110 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12081 |
CE110 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08228 |
AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-13020 |
AE111,CE110,EE111..JPP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
CE110,EE111..JPP |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90170-06011 | ||||
| 91651-60616 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 7(9704- )LHD
COWL,INSTRUMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1L790 |
AE111,CE110,EE111..LHD..HB W(AIR CONDITIONER & HEADLAMP CLEANER) OR W(AIR CONDITIONER & MOON ROOF) |
1 | ||
| 82131-1L770 |
AE111,CE110,EE111..LHD..HB W(ABS OR HEADLAMP CLEANER OR MOON ROOF OR POWER DOOR LOCK) |
1 | ||
| 82131-1L771 |
AE111,CE110,EE111..LHD..HB W(ABS OR HEADLAMP CLEANER OR MOON ROOF OR POWER DOOR LOCK) |
1 | ||
| 82131-1L791 |
AE111,CE110,EE111..LHD..HB W(AIR CONDITIONER & HEADLAMP CLEANER) OR W(AIR CONDITIONER & MOON ROOF) |
1 | ||
| 82131-1L792 |
AE111,CE110,EE111..LHD..HB W(AIR CONDITIONER & HEADLAMP CLEANER) OR W(AIR CONDITIONER & MOON ROOF) |
1 | ||
| 82131-1L772 |
AE111,CE110,EE111..LHD..HB W(ABS OR HEADLAMP CLEANER OR MOON ROOF OR POWER DOOR LOCK) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-12050 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & PASSENGER SIDE & POWER DOOR LOCK) |
1 | ||
| 82145-12040 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82145-12080 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE) |
1 | ||
| 82145-12090 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & POWER DOOR LOCK) |
1 | ||
| 82145-12120 |
AE111,CE110,EE111..LHD..HB W(*80, SIDE) |
1 | ||
| 82145-12130 |
AE111,CE110,EE111..LHD..HB W(*80, SIDE);W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82145-12170 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82145-12160 |
AE111,CE110..LHD..HB;EE111..LHD..HB..(G6,LUNA) |
1 | ||
| 82145-12180 |
AE111,CE110,EE111..LHD..HB W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82145-12190 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & PASSENGER SIDE & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82145-12081 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE) |
1 | ||
| 82145-12091 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & POWER DOOR LOCK) |
1 | ||
| 82145-12051 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & PASSENGER SIDE & POWER DOOR LOCK) |
1 | ||
| 82145-12041 |
AE111,CE110,EE111..LHD..HB W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82145-12121 |
AE111,CE110,EE111..LHD..HB W(*80, SIDE) |
1 | ||
| 82145-12131 |
AE111,CE110,EE111..LHD..HB W(*80, SIDE);W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-12050 |
AE111,CE110,EE111..HB |
1 | ||
| 82143-12070 |
AE111,CE110,EE111..HB W(*80, SIDE) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08228 |
AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82285E - WIRE, ILLUMINATION | ||||
| 82285-12020 |
AE111,CE110,EE111..JPP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12220 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12170 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12180 |
AE111,CE110,EE111..HB |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-12230 |
AE111,CE110,EE111..LHD..HB |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A620 |
AE111,CE110,EE111..JPP |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE111,CE110,EE111..JPP NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111,CE110,EE111..JPP |
1 | ||
| 82824-12210 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) BLACK |
3 | ||
| 82824-12220 |
AE111,CE110,EE111..LHD..HB |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111,CE110,EE111..JPP |
1 | ||
| 82824-12210 |
CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) BLACK |
3 | ||
| 82824-12220 |
AE111,CE110,EE111..LHD..HB |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111,CE110,EE111..HB;AE111,CE110,EE111..JPP..LHD..LB |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

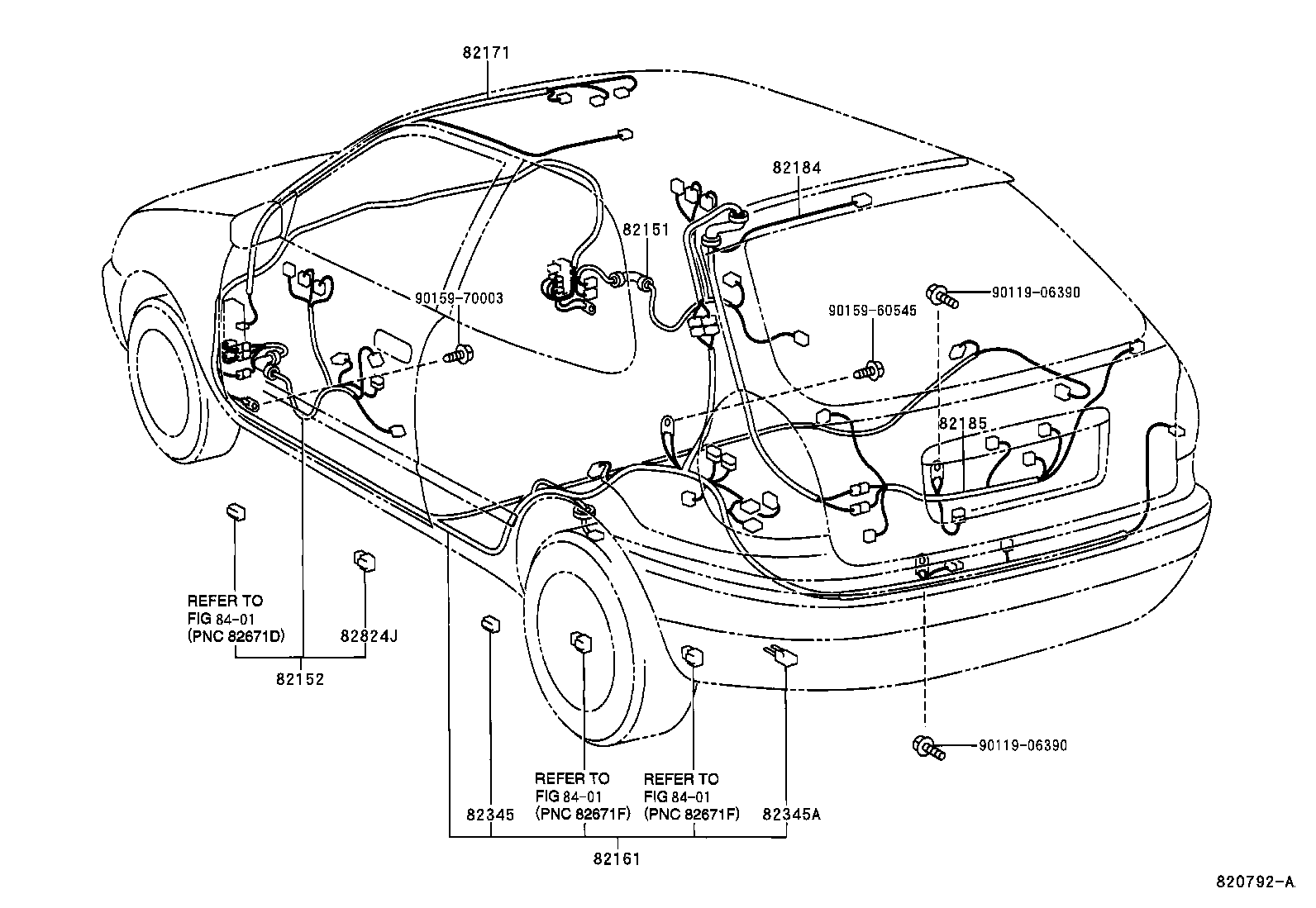

ILLUST NO. 4 OF 7(9704- )LHD..HB
ROOF,DOOR,FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1A810 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-1A820 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(ELECTRIC REMOTE CONTROL MIRROR & POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-1E010 |
AE111,CE110,EE111..JPP..LHD..TERRA W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82151-1A890 |
AE111,CE110,EE111..JPP..(STD,TERRA) |
1 | ||
| 82151-1E080 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(*80, SIDE & POWER DOOR LOCK) |
1 | ||
| 82151-1E090 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(*80, SIDE & POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-1E050 |
AE111,CE110,EE111..HB..(STD,TERRA) W(*80, SIDE) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-1E010 |
AE111,CE110,EE111..JPP..LHD..TERRA W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82152-1A570 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(ELECTRIC REMOTE CONTROL MIRROR & POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-1A890 |
AE111,CE110,EE111..JPP..(STD,TERRA) |
1 | ||
| 82152-1A590 |
AE111,CE110,EE111..HB..(STD,TERRA) W(*80, SIDE) |
1 | ||
| 82152-1A560 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-1A630 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(*80, SIDE & POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-1A620 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(*80, SIDE & POWER DOOR LOCK) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1N060 |
AE111,CE110,EE111..LHD..HB..(LUNA,STD,TERRA) |
1 | ||
| 82161-1N070 |
EE111..LHD..HB;AE111,CE110..LHD..HB..(4FC,5F) W(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12730 |
AE111,CE110,EE111..JPP..LHD |
1 | ||
| 82171-12740 |
AE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA) W(MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12490 |
AE111,CE110,EE111..HB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12610 |
AE111,CE110,EE111..HB |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE111,CE110,EE111..HB |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
EE111..LHD..HB;EE111..JPP..RHD;AE111,CE110..LHD..HB..(4FC,5F);AE111,CE110..JPP..RHD..(LUNA,TERRA) W(POWER DOOR LOCK) |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60545 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 7(9704- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-1E300 | ||||
| 82711-24420 | ||||
| 82711-3H630 | ||||
| 82715-10010 | ||||
| 82715-12020 | ||||
| 82715-12261 | ||||
| 82715-12380 | ||||
| 82715-16440 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
ILLUST NO. 5 OF 7(9704- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-12010 | ||||
| 82711-10370 | ||||
| 82711-16790 | ||||
| 82711-1A760 | ||||
| 82711-1E350 | ||||
| 82711-1E440 | ||||
| 82715-02100 | ||||
| 82715-10130 | ||||
| 82715-12140 | ||||
| 82715-12350 | ||||
| 82715-12420 | ||||
| 82715-12500 | ||||
| 82715-12510 | ||||
| 82715-12550 | ||||
| 82715-12730 | ||||
| 82715-12740 | ||||
| 82715-12750 | ||||
| 82715-20430 | ||||
| 82715-32390 | ||||
| 82715-33140 | ||||
| 90080-11479 | ||||
| 90119-06539 | ||||
| 90119-06801 | ||||
| 91621-40608 | ||||
| 91621-60612 | ||||
| 91651-B0614 | ||||
ILLUST NO. 6 OF 7(9704- )AE111,CDE110,CE110,EE111,ZZE11# ; (9912- )WZE110..LB ; (0001- )WZE
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06316 | ||||
| 90119-06375 | ||||
| 90119-06390 | ||||
ILLUST NO. 5 OF 7(9704- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12760 | ||||
| 82715-12780 | ||||
| 82715-12790 | ||||
| 82715-32470 | ||||
| 82715-34430 | ||||
| 82715-67020 | ||||
| 90119-08848 | ||||
| 91651-B0614 | ||||
ILLUST NO. 2 OF 7(9704- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1H750 |
CE110..LHD PART NUMBER LABEL=82111-1H750 |
1 | ||
| 82111-1H710 |
AE111,CE110,EE111..LHD..(LUNA,STD,TERRA) PART NUMBER LABEL=82111-1H710 |
1 | ||
| 82111-1H760 |
CE110..LHD PART NUMBER LABEL=82111-1H760 |
1 | ||
| 82111-1H720 |
AE111,CE110,EE111..LHD PART NUMBER LABEL=82111-1H720 |
1 | ||
| 82111-1H810 |
CE110..LHD PART NUMBER LABEL=82111-1H810 |
1 | ||
| 82111-1K140 |
CE110..LHD PART NUMBER LABEL=82111-1K140 |
1 | ||
| 82111-1H761 |
CE110..LHD PART NUMBER LABEL=82111-1H761 |
1 | ||
| 82111-1K150 |
CE110..LHD PART NUMBER LABEL=82111-1K150 |
1 | ||
| 82111-1H820 |
CE110..LHD PART NUMBER LABEL=82111-1H820 |
1 | ||
| 82111-1H711 |
AE111,CE110,EE111..JPP..LHD..(LUNA,STD,TERRA) PART NUMBER LABEL=82111-1H711 |
1 | ||
| 82111-1H751 |
CE110..LHD PART NUMBER LABEL=82111-1H751 |
1 | ||
| 82111-1H811 |
CE110..LHD PART NUMBER LABEL=82111-1H811 |
1 | ||
| 82111-1K151 |
CE110..LHD PART NUMBER LABEL=82111-1K151 |
1 | ||
| 82111-1H721 |
AE111,CE110,EE111..LHD PART NUMBER LABEL=82111-1H721 |
1 | ||
| 82111-1K260 |
AE111,CE110,EE111..JPP..LHD PART NUMBER LABEL=82111-1K260 |
1 | ||
| 82111-1K280 |
CE110..LHD PART NUMBER LABEL=82111-1K280 |
1 | ||
| 82111-1H821 |
CE110..LHD PART NUMBER LABEL=82111-1H821 |
1 | ||
| 82111-1K300 |
CE110..LHD PART NUMBER LABEL=82111-1K300 |
1 | ||
| 82111-1K141 |
CE110..LHD PART NUMBER LABEL=82111-1K141 |
1 | ||
| 82111-1K320 |
CE110..LHD PART NUMBER LABEL=82111-1K320 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 88605-1K370 |
CE110..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08228 |
AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08228 |
AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| Common parts | ||||
| 90099-04337 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 91515-G0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
