CE110L-AGMDEW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)CE110..LHD

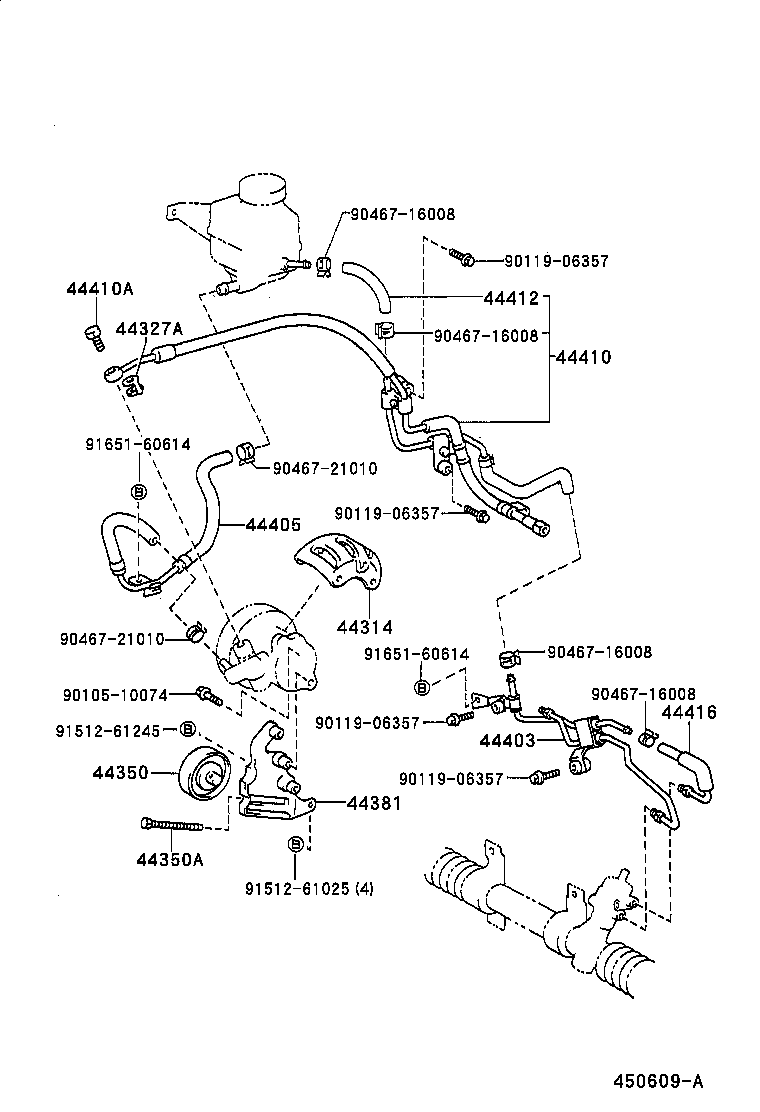

Click highlighted areas on diagram

diagram 44314 44327A 44350 44350A 44381 44403 44405 44410 44410A 44412 44416 9010510074 9011906357 9011906357 9011906357 9011906357 9046716008 9046716008 9046716008 9046716008 9046721010 9046721010 9151261025 9151261245 9165160614 9165160614
Part # Description Qty Price
44314 - COVER, PULLEY
44314-12010

CE110

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AE111,CE110..JPP

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12052

CE110

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106

CE110

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-12020

CE110

 1
44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1
44403-12040

CE110..LHD

 1
44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1
44405-12161

CE110

 1
44410 - TUBE ASSY, PRESSURE FEED
44040-12160

CE110..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012

AE111,CE110..JPP

 1
44412 - HOSE, RETURN
44412-12200

CE110,EE111..JPP

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-12160

AE111,CE110,EE111..JPP..LHD

 1
Common parts
90105-10074
90119-06357
90467-16008
90467-21010
91512-61025
91512-61245
91651-60614
