CE100R-ALMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9205- )

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122

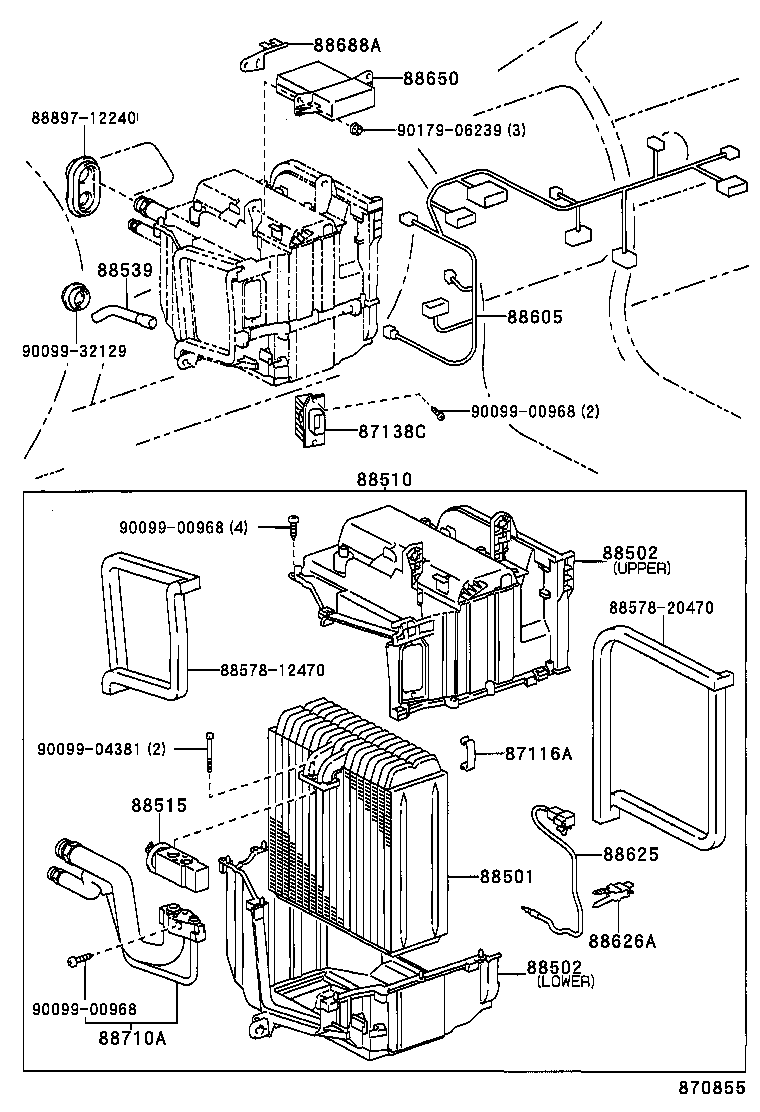

ILLUST NO. 1 OF 2(9205- )

Click highlighted areas on diagram

DEALER OPTION

diagram 87116A 87138C 88501 88502 88502 88510 88515 88539 8857812470 8857820470 88605 88625 88626A 88650 88688A 88710A 8889712240 9009900968 9009900968 9009900968 9009904381 9009932129 9017906239
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

AE10#,CE100,EE10#

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12360

AE10#,CE100,EE101..RHD

 1
88501-12390

AE10#,CE100,EE101..RHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12200

AE10#,CE100,EE101..RHD

LOWER

 1
88502-12190

AE10#,CE100,EE101..RHD

UPPER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12200

AE10#,CE100,EE101..RHD

LOWER

 1
88502-12190

AE10#,CE100,EE101..RHD

UPPER

 1
88510 - UNIT ASSY, COOLER
88510-1A070

AE10#,CE100,EE101..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-14062

AE10#,CE100,EE10#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12120

AE101..RHD;AE101..4FC..XLI;AE102,CE100,EE101

DEALER OPTION

 1
88539-12120

AE10#,CE100,EE10#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1H530

CE100

DEALER OPTION

 1
88605-1H430

CE100

W(POWER STEERING),DEALER OPTION

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12280

AE10#,CE100,EE10#

 1
88626A - HOLDER, THERMISTOR
88626-28010

AE10#,CE100,EE10#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-1A440

CE100

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-1A350

AE10#,CE100,EE101..RHD

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12240

AE10#,CE100,EE101..RHD

 1
Common parts
88578-12470
88578-20470
88897-12240
90099-00968
90099-04381
90099-32129
90179-06239

ILLUST NO. 1 OF 2(9205- )CE100

Click highlighted areas on diagram

DEALER OPTION

diagram 87116A 87138C 88501 88502 88502 88510 88515 88539 8857812470 8857820470 88605 88605C 88625 88626A 88650 88688A 88710A 8889712240 9009900968 9009900968 9009900968 9009904381 9009932129 9017906239
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

AE10#,CE100,EE10#

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12360

AE10#,CE100,EE101..RHD

 1
88501-12390

AE10#,CE100,EE101..RHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12200

AE10#,CE100,EE101..RHD

LOWER

 1
88502-12190

AE10#,CE100,EE101..RHD

UPPER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12200

AE10#,CE100,EE101..RHD

LOWER

 1
88502-12190

AE10#,CE100,EE101..RHD

UPPER

 1
88510 - UNIT ASSY, COOLER
88510-1A070

AE10#,CE100,EE101..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-14062

AE10#,CE100,EE10#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12120

AE101..RHD;AE101..4FC..XLI;AE102,CE100,EE101

DEALER OPTION

 1
88539-12120

AE10#,CE100,EE10#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1H530

CE100

DEALER OPTION

 1
88605-1H430

CE100

W(POWER STEERING),DEALER OPTION

 1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-1H540

CE100..3D;CE100..LB

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12280

AE10#,CE100,EE10#

 1
88626A - HOLDER, THERMISTOR
88626-28010

AE10#,CE100,EE10#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-1A440

CE100

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-1A350

AE10#,CE100,EE101..RHD

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12240

AE10#,CE100,EE101..RHD

 1
Common parts
88578-12470
88578-20470
88897-12240
90099-00968
90099-04381
90099-32129
90179-06239
