CE100R-ALMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )5D

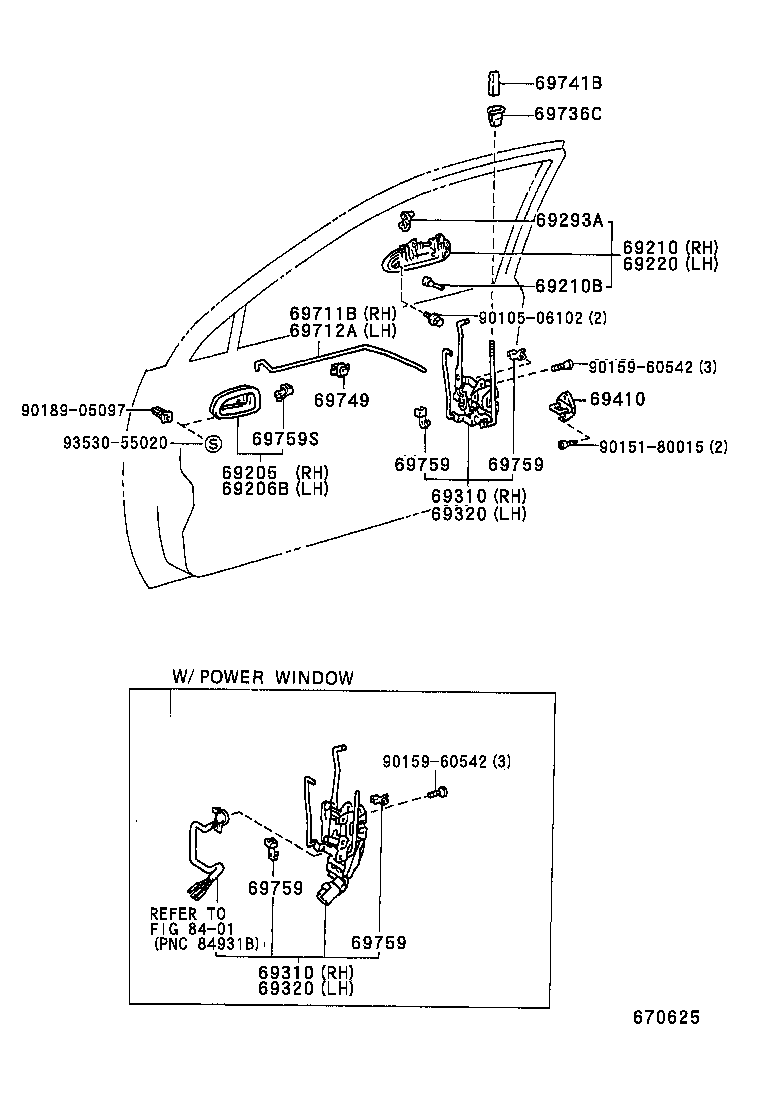

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69220 69293A 69310 69310 69320 69320 69410 69711B 69712A 69736C 69741B 69749 69759 69759 69759 69759 69759S 8401 9010506102 9015180015 9015960542 9015960542 9018905097 9353055020
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1214004

AE101,CE100,EE10#..5D

DARK BLUE,TRIM8#

 1
69205-1214003

AE10#,CE100,EE10#..5D

SHADOW GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1214004

AE101,CE100,EE10#..5D

DARK BLUE,TRIM8#

 1
69206-1214003

AE10#,CE100,EE10#..5D

SHADOW GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12160

AE101,CE100,EE10#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

AE10#,CE100,EE10#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12160

AE101,CE100,EE10#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AE10#,CE100,EE10#

RH

 1
69293-12040

AE10#,CE100,EE10#

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-12201

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69030-12202

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69030-12200

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69310-12450

AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-12201

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69030-12202

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69030-12200

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69310-12450

AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-12210

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69320-12460

AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D

 1
69040-12212

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69040-12211

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69040-12213

AE10#..LB..RHD;CE100,EE101..5D..RHD

W(*EL)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-12210

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69320-12460

AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D

 1
69040-12212

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69040-12211

AE10#,CE100,EE101..5D..RHD

W(*EL)

 1
69040-12213

AE10#..LB..RHD;CE100,EE101..5D..RHD

W(*EL)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AE10#,CE100,EE10#

 2
69410-20070

AE10#,CE100,EE10#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-12130

AE10#,CE100,EE10#..5D

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-12140

AE10#,CE100,EE10#..5D

 1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12110

AE10#,CE100,EE10#..LB

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-8700313

AE10#,CE100,EE10#..5D

SHADOW GRAY,TRIM1#

 2
69741-8700314

AE101,CE100,EE10#..5D

DARK BLUE,TRIM8#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-50020

AE10#,CE100,EE10#..5D

 2
69749-12070

AE10#,CE100,EE10#..LB

BLUE

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AE10#,CE100,EE10#..5D

GREEN

 2
69759-24010

AE10#,CE100,EE10#

NATURAL

 1
69759-24020

AE10#,CE100,EE10#

BLUE

 1
69759-24060

AE10#,CE100,EE10#..5D

GRAY

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AE10#,CE100,EE10#..5D

GREEN

 2
69759-24010

AE10#,CE100,EE10#

NATURAL

 1
69759-24020

AE10#,CE100,EE10#

BLUE

 1
69759-24060

AE10#,CE100,EE10#..5D

GRAY

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AE10#,CE100,EE10#..5D

GREEN

 2
69759-24010

AE10#,CE100,EE10#

NATURAL

 1
69759-24020

AE10#,CE100,EE10#

BLUE

 1
69759-24060

AE10#,CE100,EE10#..5D

GRAY

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AE10#,CE100,EE10#..5D

GREEN

 2
69759-24010

AE10#,CE100,EE10#

NATURAL

 1
69759-24020

AE10#,CE100,EE10#

BLUE

 1
69759-24060

AE10#,CE100,EE10#..5D

GRAY

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-22040

AE10#,CE100,EE10#..5D

LH

 1
69759-22050

AE10#,CE100,EE10#..5D

RH

 1
Common parts
90105-06102
90151-80015
90159-60542
90189-05097
93530-55020
Linked diagrams
8401
