CE100R-ALMDSW (1992)
Toyota Corolla Hb/Lb
Production
May 1992
-
May 1995
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )
Click highlighted areas on diagram

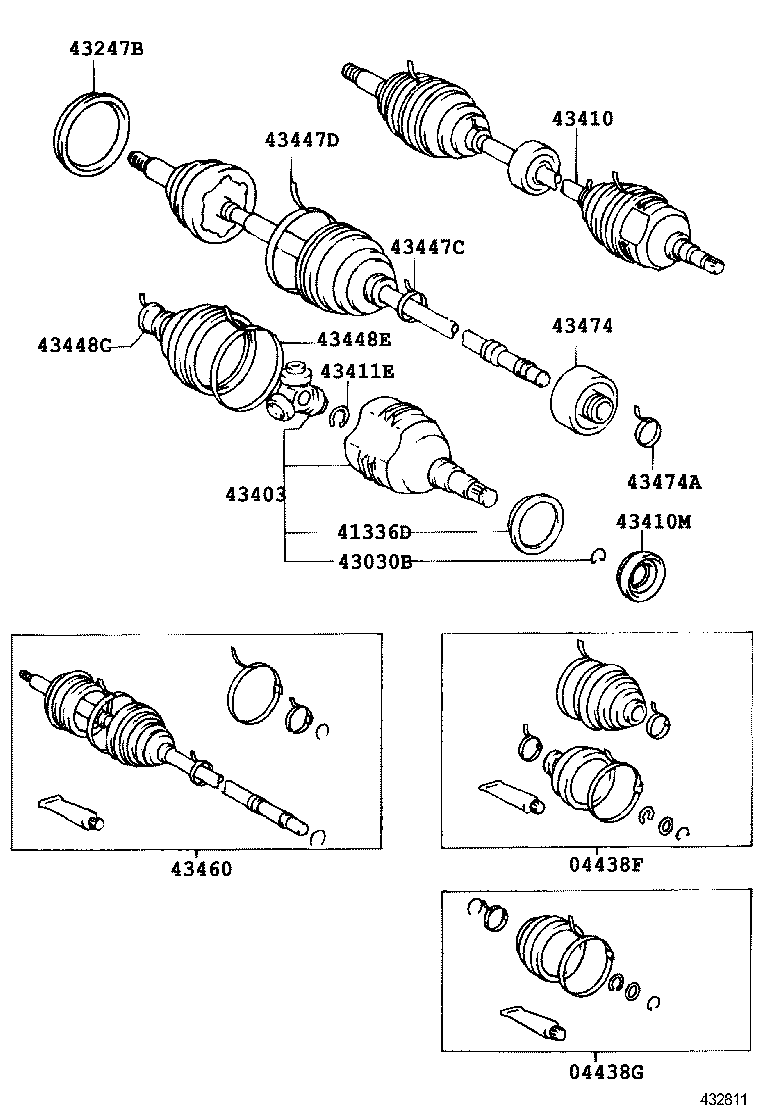

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12270 |
CE100 |
1 | ||
| 04438-12290 |
CE100 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12260 |
CE100 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-32010 |
CE100 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-27005 |
CE100 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-33010 |
AE10#,CE100,EE10# |
1 | ||
| 43247-12010 |
AE10#,CE100,EE101 W(*66) |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43030-20020 |
CE100 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20341 |
CE100 |
1 | ||
| 43410-12350 |
CE100 W(*66) |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35026 |
CE100 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AE10#,CE100,EE10# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-14010 |
AE102,CE100 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
AE102,CE100 |
1 | ||
| 90949-01076 |
AE102,CE100 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
AE10#,CE100,EE10# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
AE10#,CE100,EE10# |
1 | ||
| 90949-01076 |
AE10#,CE100,EE10# |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19655 |
CE100 W(*66) |
1 | ||
| 43460-29147 |
CE100 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
AE101,CE100,EE10# |
1 | ||
| 43474-12020 |
CE100 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AE10#,CE100,EE10# |
1 | ||
| 42345-16030 |
AE10#,CE100,EE10# |
1 | ||
(9205- )
Click highlighted areas on diagram

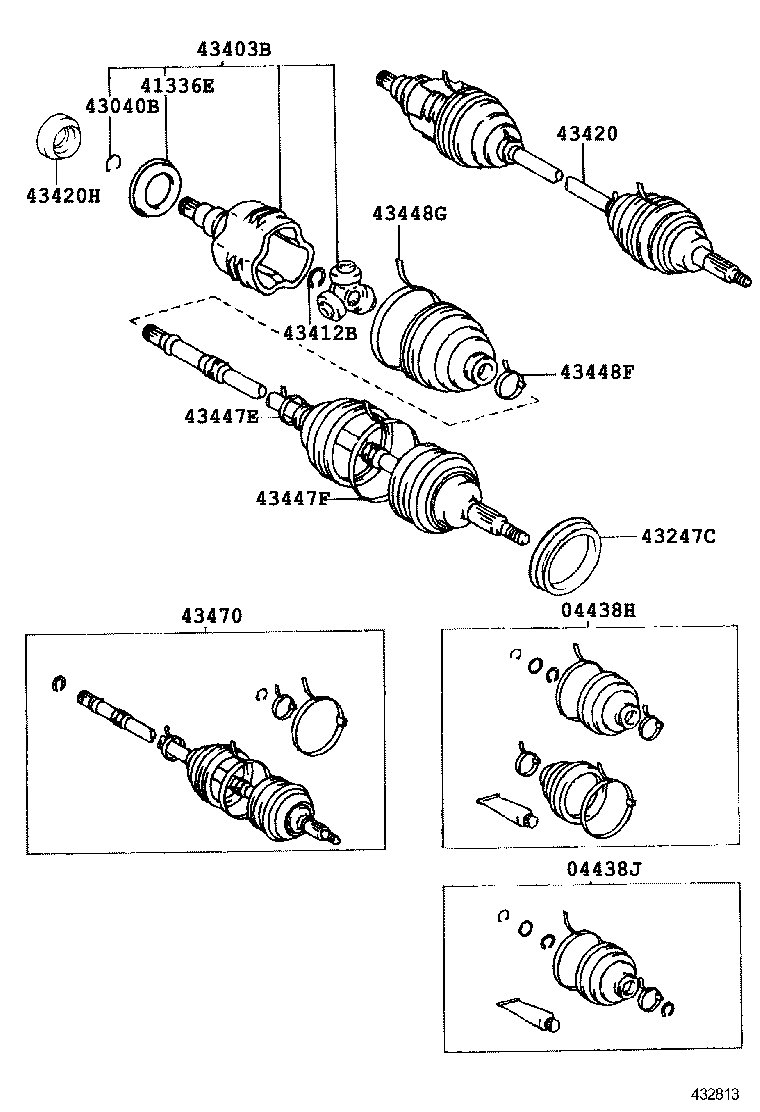

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12290 |
CE100 |
1 | ||
| 04438-12270 |
CE100 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12260 |
CE100 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
CE100 |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-27005 |
CE100 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
AE10#,CE100,EE101 W(*66) |
1 | ||
| 43247-33010 |
AE10#,CE100,EE10# |
1 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43040-20010 |
CE100 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
AE10#,CE100,EE10# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12340 |
CE100 W(*66) |
1 | ||
| 43420-12320 |
CE100 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35026 |
CE100 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
AE102,CE100 |
1 | ||
| 42345-14010 |
CE100 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
AE102,CE100 |
1 | ||
| 42345-16040 |
AE102,CE100 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
AE10#,CE100,EE10# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
AE10#,CE100,EE10# |
1 | ||
| 42345-16040 |
AE102,CE100 |
1 | ||
| 42345-16040 |
AE10#,CE100,EE10# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29345 |
AE102,CE100 |
1 | ||
| 43470-19715 |
AE102,CE100 W(*66) |
1 | ||
