CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9205- )

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122

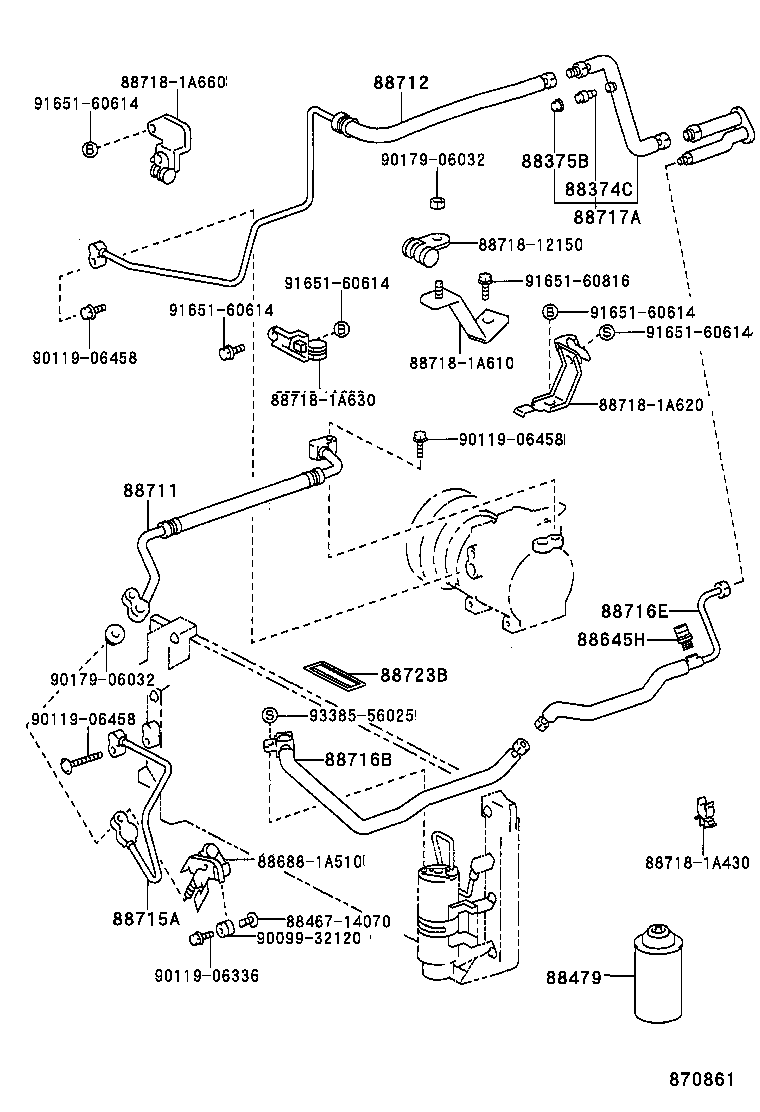

ILLUST NO. 2 OF 3(9505- )CE100..RHD

Click highlighted areas on diagram

diagram 88374C 88375B 8846714070 88479 88645H 886881A510 88711 88712 88715A 88716B 88716E 88717A 8871812150 887181A430 887181A610 887181A620 887181A630 887181A660 88723B 9009932120 9011906336 9011906458 9011906458 9011906458 9017906032 9017906032 9165160614 9165160614 9165160614 9165160614 9165160614 9165160816 9338556025
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
48094-10010

CE100..RHD;AE10#,EE10#..LHD

 1
88374-30010

AE101..LHD;CE100,EE101

 1
88374-30010

AE10#,CE100,EE10#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270

AE10#,CE100,EE10#

 1
88375-30290

AE101..LHD;CE100,EE101

 1
88375-30290

AE10#,CE100,EE10#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

AE10#,CE100,EE101

250G

 3
90986-02008

AE10#,CE100,EE101

200G

 3
88645H - SWITCH, PRESSURE NO.1
88645-50010

AE10#,CE100,EE10#

 1
88645-20050

AE10#,CE100,EE10#

 1
88645-20050

AE101..LHD;CE100,EE101

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12730

CE100..RHD

 1
88711-1A090

CE100

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A120

CE100

 1
88712-12870

CE100

 1
88712-1A480

CE100..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12390

CE100..RHD

 1
88715-12480

CE100

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A370

CE100..RHD

 1
88716-1A040

CE100..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A030

CE100..RHD

 1
88716-1A340

CE100..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12680

CE100..RHD

 1
88717-12780

CE100..RHD

 1
88717-1A030

CE100..RHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120

AE10#,CE100,EE10#

 1
88723-12060

AE10#,CE100,EE101..RHD

 1
88723-12120

AE101..LHD;CE100,EE101

 1
Common parts
88467-14070
88688-1A510
88718-12150
88718-1A430
88718-1A610
88718-1A620
88718-1A630
88718-1A660
90099-32120
90119-06336
90119-06458
90179-06032
91651-60614
91651-60816
93385-56025

ILLUST NO. 1 OF 3(9205- )CE100

Click highlighted areas on diagram

diagram 88450 88453A 88454A 88460 88467 88467 88467A 88467A 88470 88472 88550 88590 88716A 8889912290 9009120609 9009120609 9009904117 9009904119 9011906334 9338556025
Part # Description Qty Price
88453A - FAN, COOLING
88453-12070

CE100

 1
88454A - SHROUD, FAN
88454-12140

CE100

 1
88460 - CONDENSER ASSY, COOLER
88460-12420

CE100

 1
88460-12450

CE100

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100

AE101..LHD;CE100,EE101

 2
88467-12100

AE10#,CE100,EE10#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100

AE101..LHD;CE100,EE101

 2
88467-12100

AE10#,CE100,EE10#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110

AE101..LHD;CE100,EE101

 2
88467-12110

AE10#,CE100,EE10#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110

AE101..LHD;CE100,EE101

 2
88467-12110

AE10#,CE100,EE10#

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010

AE101,CE100,EE101

 1
88471-60010

AE10#,CE100,EE10#

 1
88471-12020

AE10#,CE100,EE10#

 1
88471-60010

AE101..LHD;CE100,EE101

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080

AE101..LHD;CE100,EE101

 1
88473-12080

AE10#,CE100,EE10#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

CE100

 1
88550-12130

AE10#,CE100,EE101

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12220

CE100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12360

AE10#,CE100,EE101

 1
88726-12410

AE10#,CE100,EE101

 1
88726-12410

AE101..LHD;CE100,EE101

 1
Common parts
88899-12290
90091-20609
90099-04117
90099-04119
90119-06334
93385-56025

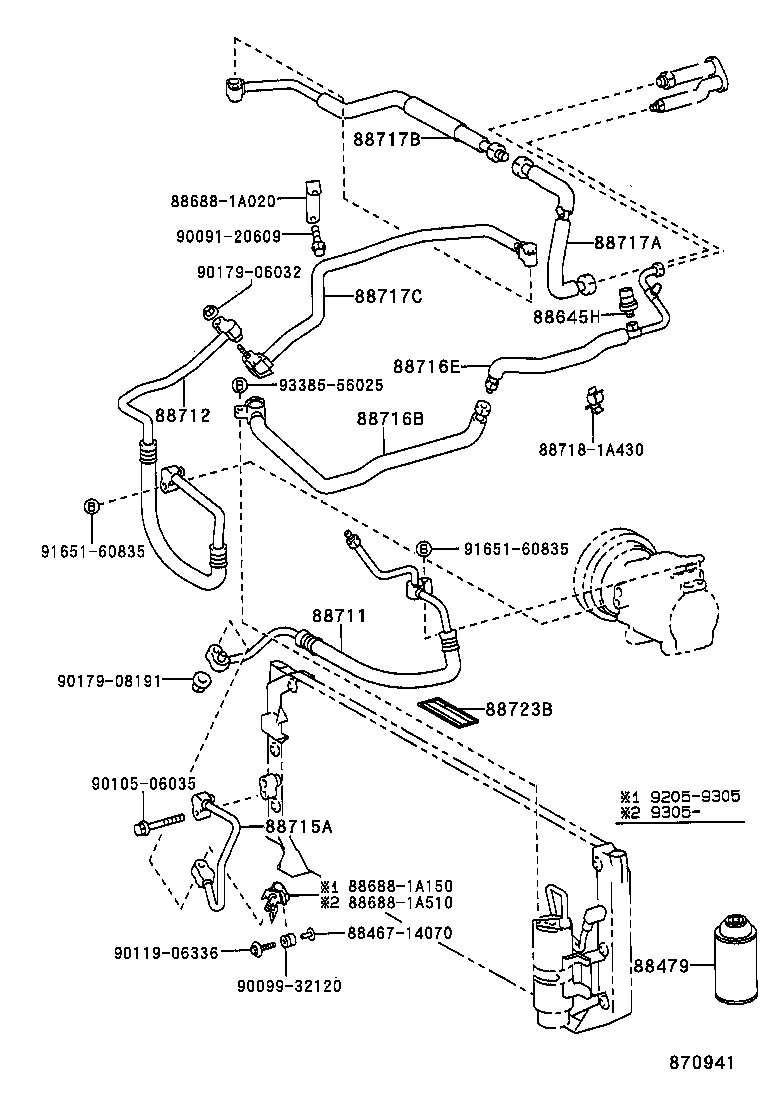

ILLUST NO. 2 OF 3(9205-9505)CE100..RHD

Click highlighted areas on diagram

diagram 8846714070 88479 88645H 886881A020 886881A150 886881A510 88711 88712 88715A 88716B 88716E 88717A 88717B 88717C 887181A430 88723B 9009120609 9009932120 9010506035 9011906336 9017906032 9017908191 9165160835 9165160835 9338556025
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

AE10#,CE100,EE101

250G

 3
90986-02008

AE10#,CE100,EE101

200G

 3
88645H - SWITCH, PRESSURE NO.1
88645-50010

AE10#,CE100,EE10#

 1
88645-20050

AE10#,CE100,EE10#

 1
88645-20050

AE101..LHD;CE100,EE101

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12730

CE100..RHD

 1
88711-1A090

CE100

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A120

CE100

 1
88712-12870

CE100

 1
88712-1A480

CE100..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12390

CE100..RHD

 1
88715-12480

CE100

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A370

CE100..RHD

 1
88716-1A040

CE100..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A030

CE100..RHD

 1
88716-1A340

CE100..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12680

CE100..RHD

 1
88717-12780

CE100..RHD

 1
88717-1A030

CE100..RHD

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12690

CE100..RHD

 1
88717-12730

CE100..RHD

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88707-12040

CE100..RHD

 1
88717-12790

CE100..RHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120

AE10#,CE100,EE10#

 1
88723-12060

AE10#,CE100,EE101..RHD

 1
88723-12120

AE101..LHD;CE100,EE101

 1
Common parts
88467-14070
88688-1A020
88688-1A150
88688-1A510
88718-1A430
90091-20609
90099-32120
90105-06035
90119-06336
90179-06032
90179-08191
91651-60835
93385-56025
