CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )CE100

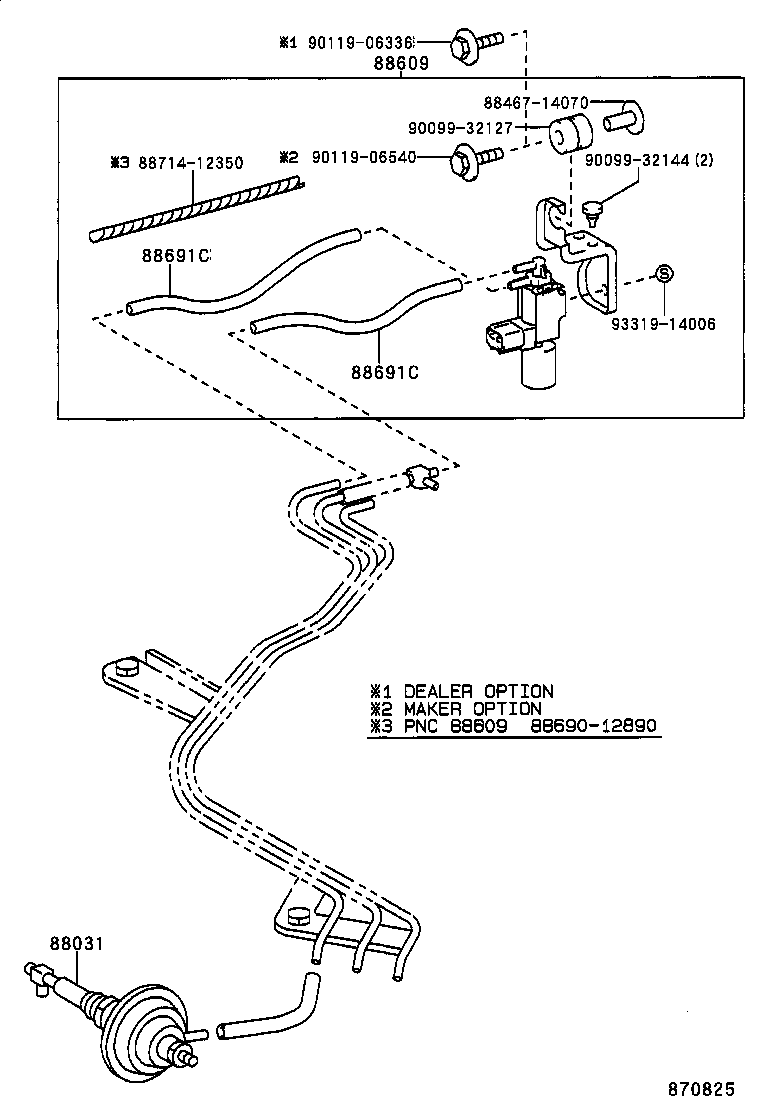

Click highlighted areas on diagram

diagram 88031 8846714070 88609 88691C 88691C 8871412350 9009932127 9009932144 9011906336 9011906540 9331914006
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-20080

CE100

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12890

CE100

DEALER OPTION

 1
88609-12790

CE100..RHD

MAKER OPTION

 1
88609-1A010

CE100..RHD

W(POWER STEERING)

 1
88609-1A010

CE100..RHD

 1
88609-12890

CE100..RHD

DEALER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100

*H,L=110,MARK=#0

 1
90999-92004

CE100

*H,L=850,MARK=#*

 1
90999-92002

CE100

*H,L=160,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100

*H,L=110,MARK=#0

 1
90999-92004

CE100

*H,L=850,MARK=#*

 1
90999-92002

CE100

*H,L=160,MARK=#0

 1
Common parts
88467-14070
88714-12350
90099-32127
90099-32144
90119-06336
90119-06540
93319-14006
