CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )CE100..RHD

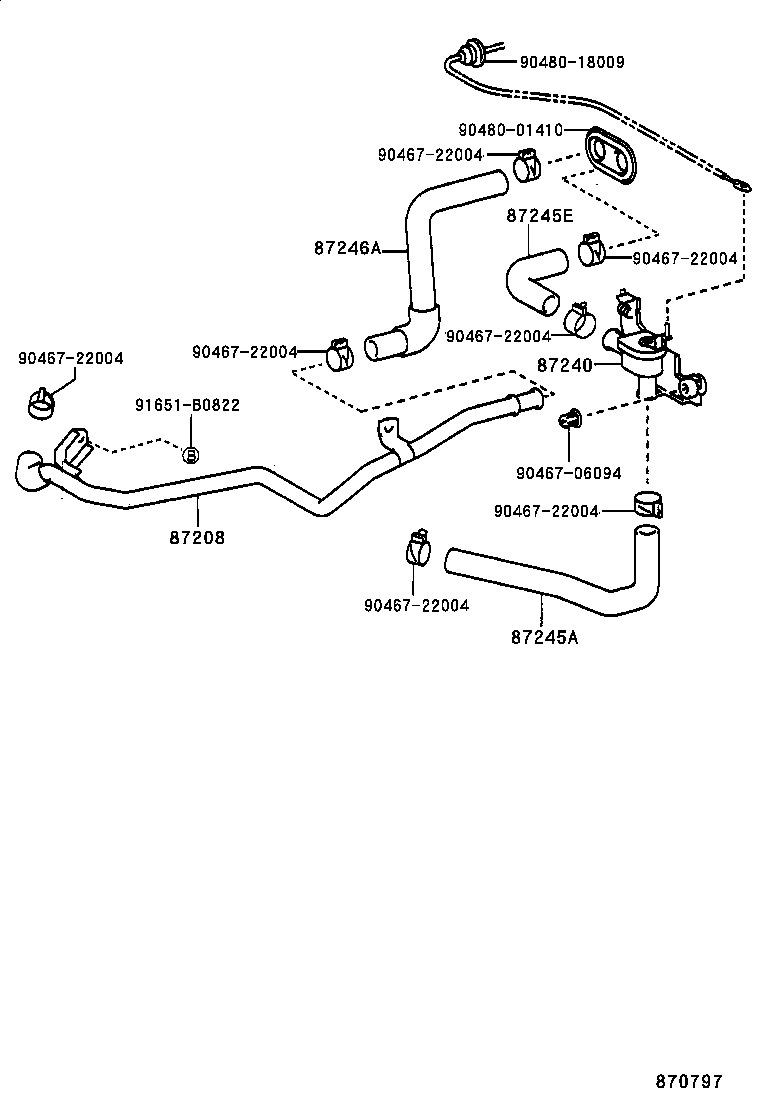

Click highlighted areas on diagram

diagram 87208 87240 87245A 87245E 87246A 9046706094 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001410 9048018009 91651B0822
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87209-12450

CE100

 1
87209-12440

CE100

 1
87240 - VALVE ASSY, HEATER WATER
87240-12250

AE10#,CE100,EE101..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A170

CE100..RHD

 1
87245-1A690

CE100..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A440

AE10#,CE100,EE101..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A510

CE100..RHD

 1
87245-1A700

CE100..RHD

 1
Common parts
90467-06094
90467-22004
90480-01410
90480-18009
91651-B0822
