Toyota Corolla hb/lb CE100 WIRING & CLAMP

CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 9(9205- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12050	AE10#,CE100,EE10#	05/1992 - 11/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-1A170	CE100..RHD	05/1992 - 12/1993	1
82141-1A171	CE100..RHD	12/1993 - 11/1994	1
82141-1A172	CE100..RHD	11/1994 - 05/1995	1
82141-1K580	CE100..RHD	05/1995 - 05/1996	1
82141-1K581	CE100..RHD	05/1996 - 12/2999	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1
Common parts
82715-12160
82715-12260
90119-06053
90159-60080
91611-60612
93568-55014
Linked diagrams
8121
8401

ILLUST NO. 8 OF 9(9205- )

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1

ILLUST NO. 2 OF 9(9205- )CE100

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-12020	CE100	05/1992 - 12/2999	1
82121 - WIRE, ENGINE
82121-1K070	CE100..RHD	05/1992 - 05/1995	1
82121-1K080	CE100..RHD W(ABS)	05/1992 - 05/1995	1
82121-1L670	CE100..RHD W(ABS)	05/1995 - 05/1996	1
82121-1L660	CE100..RHD	05/1995 - 05/1996	1
82121-1L671	CE100..RHD W(ABS)	05/1996 - 12/2999	1
82121-1L661	CE100..RHD	05/1996 - 12/2999	1
82124 - WIRE, ENGINE, NO.4
82124-12080	CE100	05/1992 - 05/1995	1
82124-12081	CE100	05/1995 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12230	CE100	05/1992 - 12/2999	1
Common parts
90170-06011
91651-60616
94612-10601
Linked diagrams
8401

ILLUST NO. 7 OF 9(9205- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
90119-06316
90119-06390
91651-40816

ILLUST NO. 9 OF 9(9205- )

Click highlighted areas on diagram

REPAIR

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12060	CE100	05/1992 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12060	CE100	05/1992 - 12/2999	1

ILLUST NO. 3 OF 9(9205- )

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-1A150
82711-22300
82711-24420
82715-10010
82715-10090
82715-10100
82715-10130
82715-12020
82715-12150
82715-12180
82715-12190
82715-12200
82715-12230
82715-12261
82715-12380
82715-16350
82715-16440
90119-06539
90119-08443
90179-06156
90950-01813
91611-B0816
91651-B0614

ILLUST NO. 3 OF 9(9205- )

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82715-12120
82715-12130
82715-12170
82715-12340
82715-12390
82715-12440
82715-89113
90119-06539
90119-08921
91651-B0614

ILLUST NO. 1 OF 9(9205- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1E600	CE100..RHD W(ABS)	05/1992 - 05/1993	1
82111-1H070	CE100..RHD W(ABS)	05/1993 - 09/1993	1
82111-1E590	CE100..RHD	05/1992 - 11/1994	1
82111-1H071	CE100..RHD W(ABS)	09/1993 - 11/1994	1
82111-1E591	CE100..RHD	11/1994 - 05/1995	1
82111-1H072	CE100..RHD W(ABS)	11/1994 - 05/1995	1
82111-1H340	CE100..RHD W(ABS)	05/1995 - 05/1996	1
82111-1H530	CE100..RHD	05/1995 - 05/1996	1
82111-1H341	CE100..RHD W(ABS)	05/1996 - 12/2999	1
82111-1H531	CE100..RHD	05/1996 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
88605-1H870	CE100..RHD	05/1995 - 05/1996	1
88605-1H440	CE100..RHD	05/1992 - 05/1995	1
82123 - WIRE, ENGINE, NO.3
82123-12260	CE100	05/1992 - 05/1995	1
82123-12340	CE100	05/1995 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE10#,CE100,EE10#	05/1992 - 11/1994	2
Common parts
82715-12140
90099-04337
90105-08096
90105-10122
90119-06390
90119-06539
90119-08063
Linked diagrams
8401

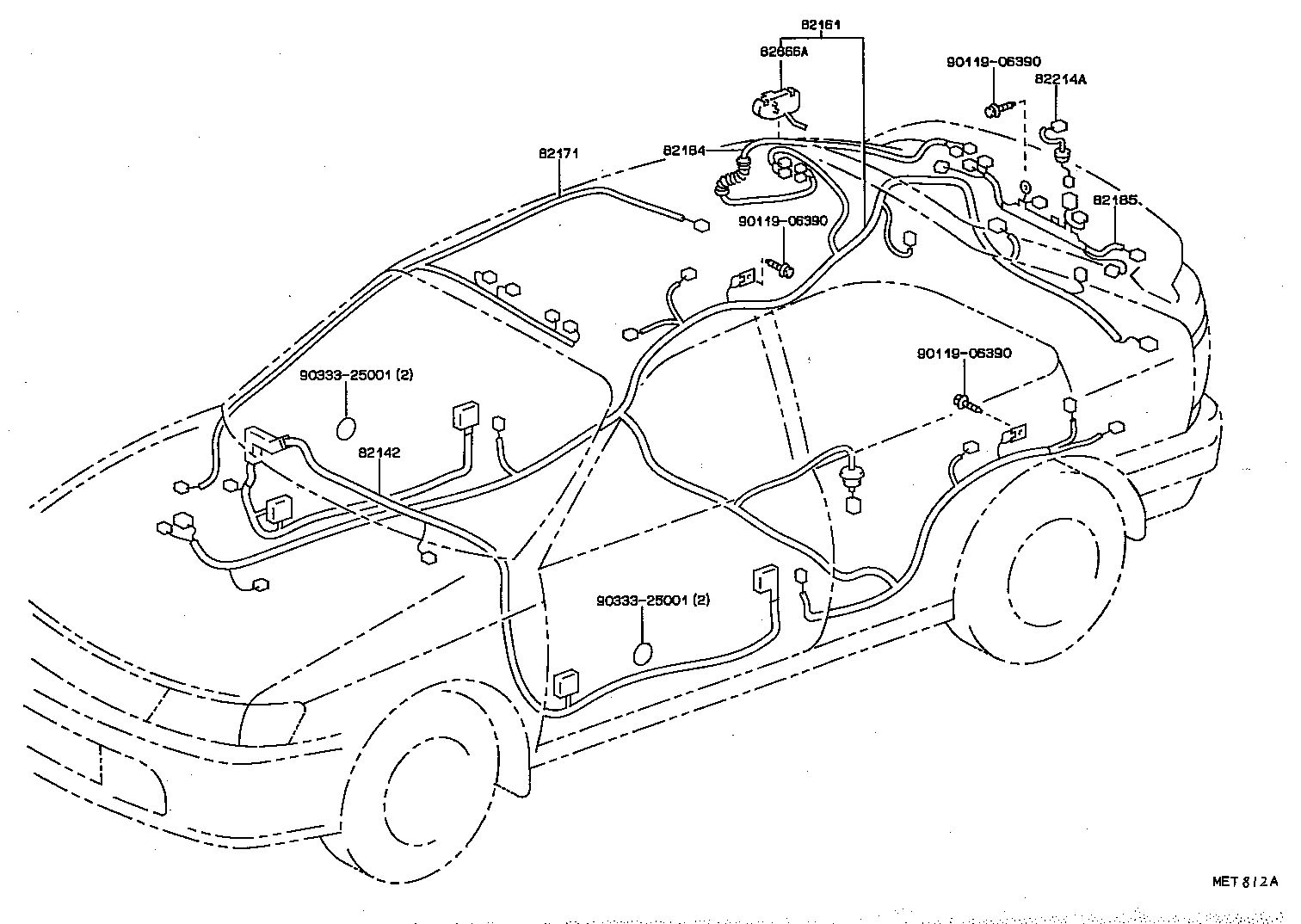

ILLUST NO. 6 OF 9(9205- )HB..RHD

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12161	AE101,CE100,EE101..3D..RHD..(SI,XL,XLI) W(*EL)	05/1995 - 12/2999	1
82142-12161	AE10#,CE100,EE101..3D..RHD W(*EL)	12/1993 - 05/1995	1
82142-12160	AE10#,CE100,EE101..3D..RHD W(*EL)	05/1992 - 12/1993	1
82142-12050	AE101,CE100,EE101..RHD..(SI,XL,XLI) W(SUN ROOF)	05/1995 - 12/2999	1
82142-12050	AE10#,CE100,EE101..RHD W(SUN ROOF)	05/1992 - 05/1995	1
82142-12280	AE101,CE100,EE101..3D..RHD..(SI,XL,XLI) W(PW & EL)	05/1995 - 12/2999	1
82161 - WIRE, FLOOR
82161-1K590	AE10#,CE100,EE101..HB..RHD	05/1992 - 11/1994	1
82161-1K600	AE10#,CE100,EE101..HB..RHD W(ABS)	05/1992 - 11/1994	1
82161-1K591	AE10#,CE100,EE101..HB..RHD	11/1994 - 05/1995	1
82161-1K710	AE101,CE100,EE101..RHD W(ABS)	05/1995 - 12/2999	1
82161-1K601	AE10#,CE100,EE101..HB..RHD W(ABS)	11/1994 - 05/1995	1
82161-1K680	AE101,CE100,EE101..RHD	05/1995 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-12440	AE10#,CE100,EE101..HB..RHD	05/1992 - 12/2999	1
82171-12560	AE10#,CE100,EE101..HB..RHD W(MOON ROOF)	05/1992 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-12460	AE101,CE100,EE101	05/1995 - 12/2999	1
82184-12450	AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)	05/1992 - 05/1995	1
82185 - WIRE, BACK DOOR, NO.2
82185-12540	AE10#,CE100,EE101..HB..RHD	05/1992 - 12/2999	1
82214A - WIRE, LAMP
82214-12170	AE101,CE100,EE101..GLI,SI,XL,XLI	05/1995 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-12080	AE10#,CE100,EE10#..HB	05/1992 - 12/2999	1
Common parts
90119-06390
90333-25001

ILLUST NO. 5 OF 9(9205- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A200	AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI) W(*EL)	05/1992 - 12/1993	1
82151-1A201	AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI) W(*EL)	12/1993 - 05/1995	1
82151-12810	AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82151-12810	AE101..LHD..GLI;AE101,CE100,EE101..SI,XL,XLI W(DOOR SPEAKER)	05/1995 - 12/2999	1
82151-1A221	AE101,CE100,EE101..3D..RHD..(SI,XL,XLI) W(PW & EL)	05/1995 - 12/2999	1
82151-1A201	AE101,CE100,EE101..3D..(SI,XL,XLI) W(*EL)	05/1995 - 12/2999	1
82151-12820	AE101..SI;AE101..LHD..GLI;CE100,EE101..RHD..(XL,XLI) W(ELECTRIC REMOTE CONTROL MIRROR)	05/1996 - 12/2999	1
82151-1A211	AE101..SI;CE100,EE101..3D..RHD..(XL,XLI) W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	05/1996 - 12/2999	1
82151-1A231	CE100,EE101..3D..RHD..(XL,XLI) W(*PW & ELECTRIC REMOTE CONTROL MIRROR)	05/1996 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82151-1A200	AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI) W(EL) OR W(EL & DOOR SPEAKER)	05/1992 - 12/1993	1
82151-12810	AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82151-1A201	AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI) W(EL) OR W(EL & DOOR SPEAKER)	12/1993 - 05/1995	1
82151-12810	AE101..LHD..GLI;AE101,CE100,EE101..SI,XL,XLI W(DOOR SPEAKER)	05/1995 - 12/2999	1
82151-1A201	AE101,CE100,EE101..3D..(SI,XL,XLI) W(EL) OR W(EL & DOOR SPEAKER)	05/1995 - 12/2999	1
82152-1A050	AE101,CE100,EE101..3D..RHD..(SI,XL,XLI) W(PW & EL)	05/1995 - 12/2999	1
82151-1A211	AE101..SI;CE100,EE101..3D..RHD..(XL,XLI) W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	05/1996 - 12/2999	1
82152-1A060	AE101,CE100,EE101..3D..RHD..(SI,XL,XLI) W(PW & EL & ELECTRIC REMOTE CONTROL MIRROR)	05/1996 - 12/2999	1
82151-12820	AE101..SI;AE101..LHD..GLI;CE100,EE101..RHD..(XL,XLI) W(ELECTRIC REMOTE CONTROL MIRROR)	05/1996 - 12/2999	1
82543A - WIRE, POWER WINDOW, RH
82543-12030	AE101,CE100,EE101..3D..RHD	05/1995 - 12/2999	1
