CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )3D

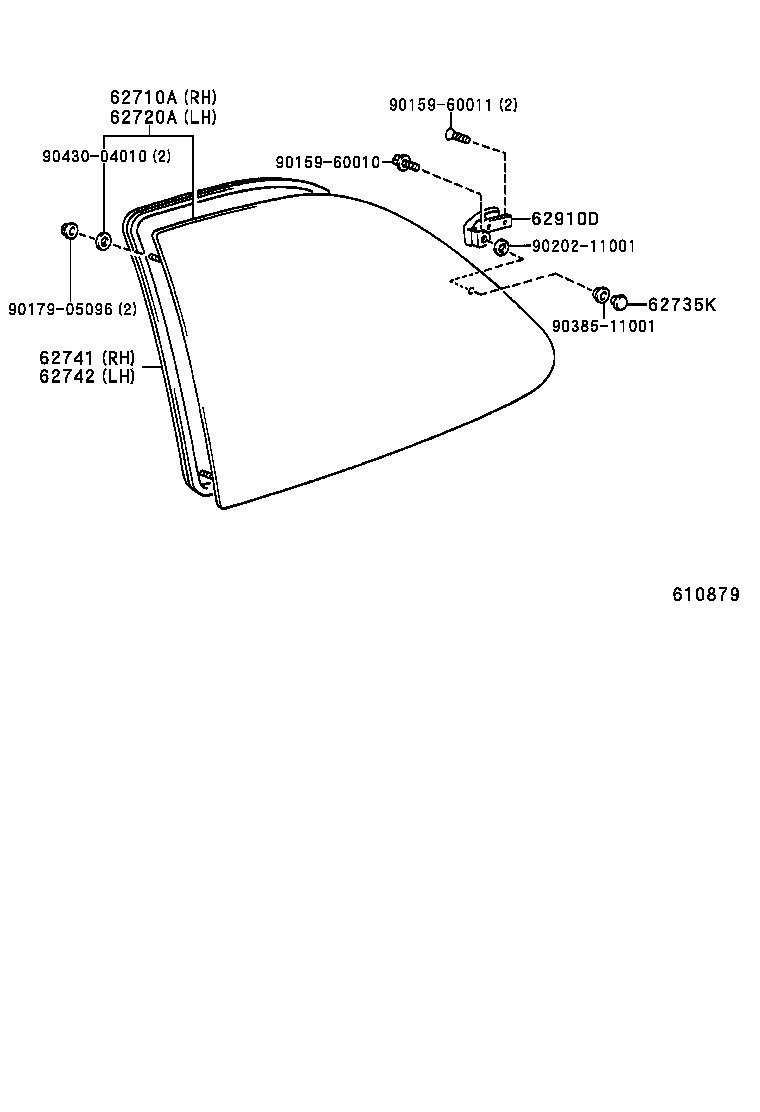

Click highlighted areas on diagram

diagram 62710A 62720A 62735K 62741 62742 62910D 9015960010 9015960011 9017905096 9020211001 9038511001 9043004010
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-12750

AE101,CE100,EE10#..3D..(STD,XL,XLI)

*TEM,T=3.1,CLEAR

 1
62710-12740

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

*TT,T=3.1,BLUE

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-12750

AE101,CE100,EE10#..3D..(STD,XL,XLI)

*TEM,T=3.1,CLEAR

 1
62720-12740

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

*TT,T=3.1,BLUE

 1
62735K - RETAINER, QUARTER WINDOW HINGE
62735-10030

AE10#,CE100,EE10#..3D

 2
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-12160

AE10#,CE100,EE10#..3D

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-12160

AE10#,CE100,EE10#..3D

 1
62910D - LOCK ASSY, QUARTER WINDOW
62920-12030

AE10#,CE100,EE10#..3D

LH

 1
62910-12100

AE10#,CE100,EE10#..3D

RH

 1
Common parts
90159-60010
90159-60011
90179-05096
90202-11001
90385-11001
90430-04010
