CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

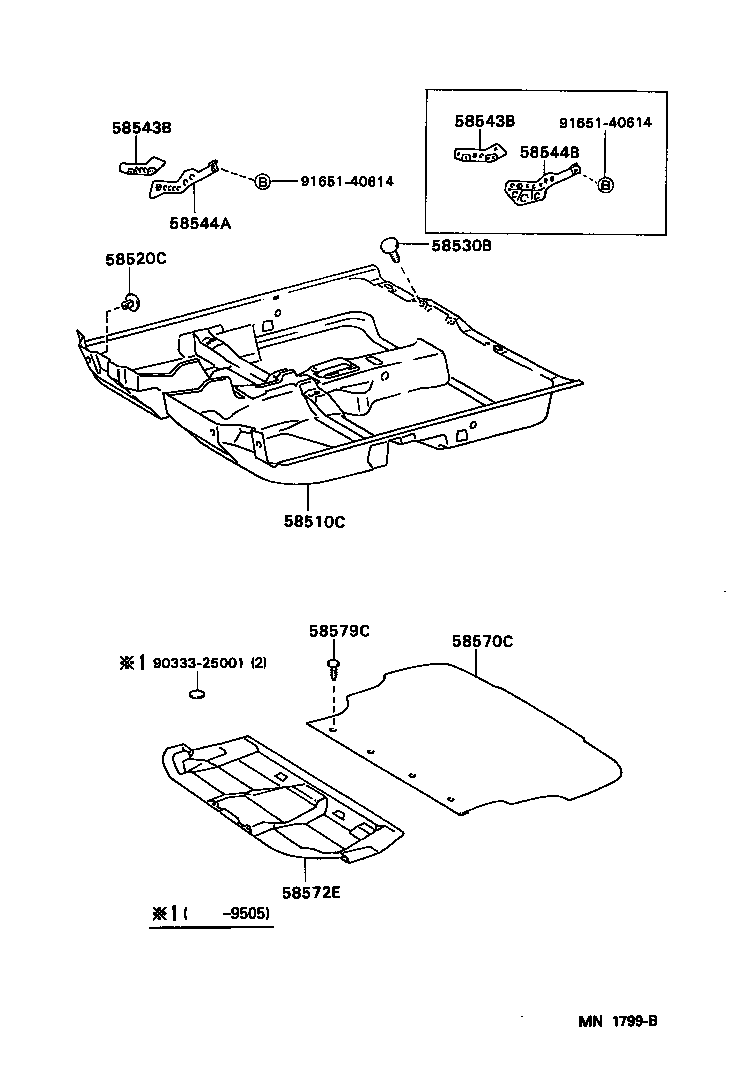

Click highlighted areas on diagram

diagram 58510C 58520C 58530B 58543B 58543B 58544A 58544B 58570C 58572E 58579C 9033325001 9165140614 9165140614
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1A870J0

CE100,EE101..3D..RHD..(XL,XLI)

DARK BLUE,TRIM8#

 1
58510-1A870B0

CE100,EE101..3D..RHD..(XL,XLI)

SHADOW GRAY,TRIM1#

 1
58510-1A871B0

CE100,EE101..3D..RHD..(XL,XLI)

SHADOW GRAY,TRIM1#

 1
58510-1A871J0

CE100,EE101..3D..RHD..(XL,XLI)

DARK BLUE,TRIM8#

 1
58510-1A872B0

CE100,EE101..3D..RHD..(XL,XLI)

SHADOW GRAY,TRIM1#

 1
58510-1A872J0

CE100,EE101..3D..RHD..(XL,XLI)

DARK BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906811

AE101,CE100,EE10#..GLI,STD,XL,XLI

BLACK,TRIM1#,8#

 2
90467-0906822

AE101,CE100,EE10#..GLI,STD,XL,XLI

BLACK,TRIM1#,8#

 2
90467-0906822

AE101,CE100,EE10#..GLI,STD,XL,XLI

BLACK,TRIM1#,8#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)

BLACK,TRIM1#,8#

 4
58543B - BRACKET, FLOOR CARPET, RH
58543-12011

AE10#,CE100,EE10#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-12011

AE10#,CE100,EE10#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-12011

AE10#,CE100,EE101..RHD

 1
58570C - CARPET ASSY, REAR FLOOR
58570-12270B0

AE10#,CE100,EE10#..HB

SHADOW GRAY,TRIM1#

 1
58570-12270J0

AE101,CE100,EE10#..HB..(GLI,XL,XLI)

DARK BLUE,TRIM8#

 1
58570-12270J0

AE101,CE100,EE101..GLI,STD,XL,XLI

DARK BLUE,TRIM8#

 1
58572E - MAT, REAR FLOOR, FRONT
58572-13010

AE10#,CE100,EE10#..HB

 1
58572-13020

AE101,CE100,EE101

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-09156J0

AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)

DARK BLUE,TRIM8#

 4
90467-09156B0

AE10#,CE100,EE10#..HB

SHADOW GRAY,TRIM1#

 4
Common parts
90333-25001
91651-40614
