CE100R-AGMDSW (1992)
Toyota Corolla Hb/Lb
Production
May 1992
-
Apr 1997
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(9205-9505) ; (9505- )CE100 ; (9505- )AE101,EE101..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-1A520 |
AE10#,CE100,EE101..RHD |
1 | ||
| 44610-1A880 |
AE10#,CE100,EE101..RHD |
1 | ||
| 44610-1E010 |
AE10#,CE100,EE101..RHD W(ABS) |
1 | ||
| 44610-1E290 |
CE100..RHD W(ABS) |
1 | ||
| 44610-1E270 |
CE100..RHD |
1 | ||
| 44610-1A570 |
AE10#,CE100,EE101..RHD W(ABS) |
1 | ||
| 44731C - BRACKET, BRAKE BOOSTER | ||||
| 44731-12050 |
AE10#,CE100,EE101..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20020 |
AE10#,CE100,EE10# |
1 | ||
| 44785-12010 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

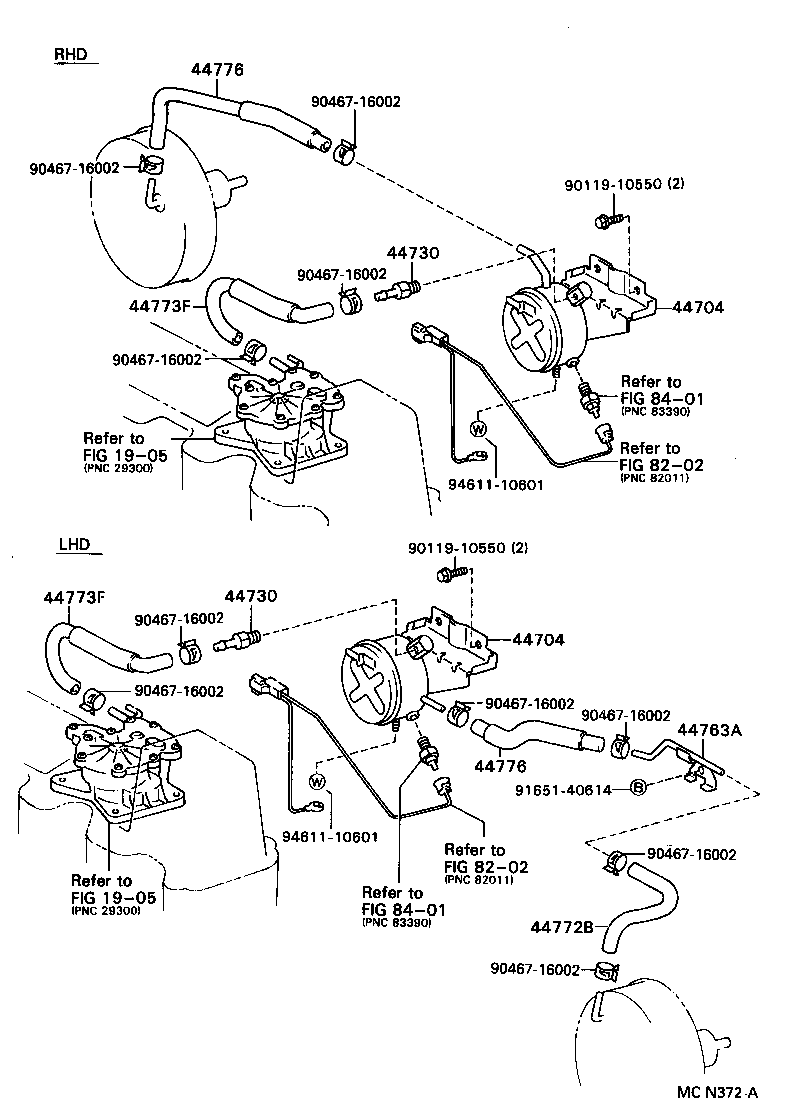

ILLUST NO. 2 OF 2(9205- )CE100
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-12070 |
CE100..RHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-12070 |
CE100..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
CE100 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
CE100 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12580 |
CE100 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12580 |
CE100 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-12090 |
CE100..RHD |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-12090 |
CE100..RHD |
1 | ||
| Common parts | ||||
| 90119-10550 | ||||
| 90467-16002 | ||||
| 91651-40614 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8202 | ||||
| 8401 | ||||
