CE100R-AGMDSW (1992)
Toyota Corolla Hb/Lb
(9205-9505)CE100

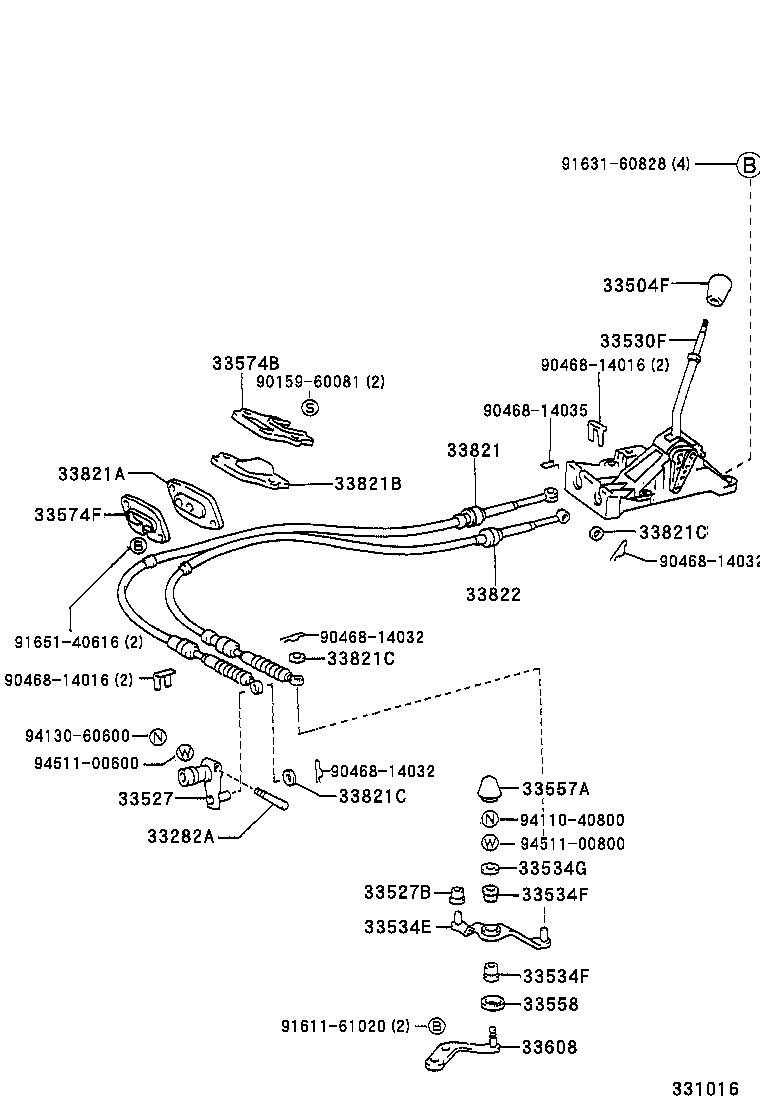

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
CE100 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180J0 |
AE101,CE100,EE10#..5F..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 33504-12180P0 |
AE101,CE100,EE10#..5F..(GLI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
AE101,CE100,EE101..5F..(GLI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
CE100 |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
CE100 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12630 |
AE101,CE100,EE101..RHD..5F |
1 | ||
| 33530-12570 |
AE10#,CE100,EE101..RHD..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-33010 |
CE100 |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE100,EE10#..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE100,EE10#..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
CE100 |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-33010 |
CE100 |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12490 |
CE100 |
1 | ||
| 33821-12740 |
CE100 |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE10#,CE100,EE10#..5F OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE10#,CE100,EE10#..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE10#,CE100,EE10#..5F OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE10#,CE100,EE10#..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE10#,CE100,EE10#..5F OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE10#,CE100,EE10#..5F SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12310 |
CE100 |
1 | ||
| 33822-12220 |
CE100 |
1 | ||
| Common parts | ||||
| 90119-08946 | ||||
| 90159-60081 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-61020 | ||||
| 91651-60614 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(9505- )CE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
CE100 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180J0 |
AE101,CE100,EE10#..5F..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 33504-12180P0 |
AE101,CE100,EE10#..5F..(GLI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
AE101,CE100,EE101..5F..(GLI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
CE100 |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
CE100 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12630 |
AE101,CE100,EE101..RHD..5F |
1 | ||
| 33530-12570 |
AE10#,CE100,EE101..RHD..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-33010 |
CE100 |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE100,EE10#..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE100,EE10#..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
CE100 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-33010 |
CE100 |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12490 |
CE100 |
1 | ||
| 33821-12740 |
CE100 |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE10#,CE100,EE10#..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE10#,CE100,EE10#..5F OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE10#,CE100,EE10#..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE10#,CE100,EE10#..5F OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE10#,CE100,EE10#..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE10#,CE100,EE10#..5F OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE10#,CE100,EE10#..5F SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12310 |
CE100 |
1 | ||
| 33822-12220 |
CE100 |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90468-14016 | ||||
| 90468-14032 | ||||
| 90468-14035 | ||||
| 91611-61020 | ||||
| 91631-60828 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94130-60600 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
