CE100R-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )CE100

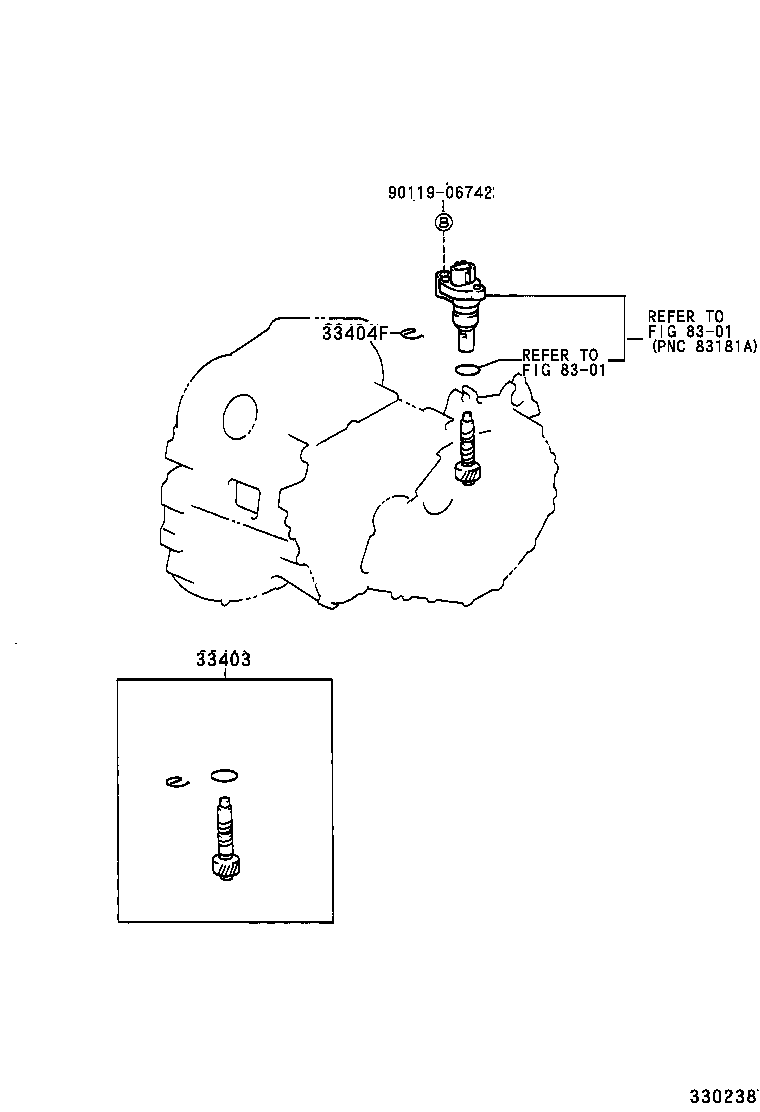

Click highlighted areas on diagram

S50

diagram 33403 33404F 8301 8301 9011906742
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19505

CE100

N=22,MARK 22:25

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE10#,CE100,EE10#..5F

 1
Common parts
90119-06742
Linked diagrams
8301
