Toyota Corolla hb/lb CE100 WIRING & CLAMP

CE100L-ALMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF 9(9205- )

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1

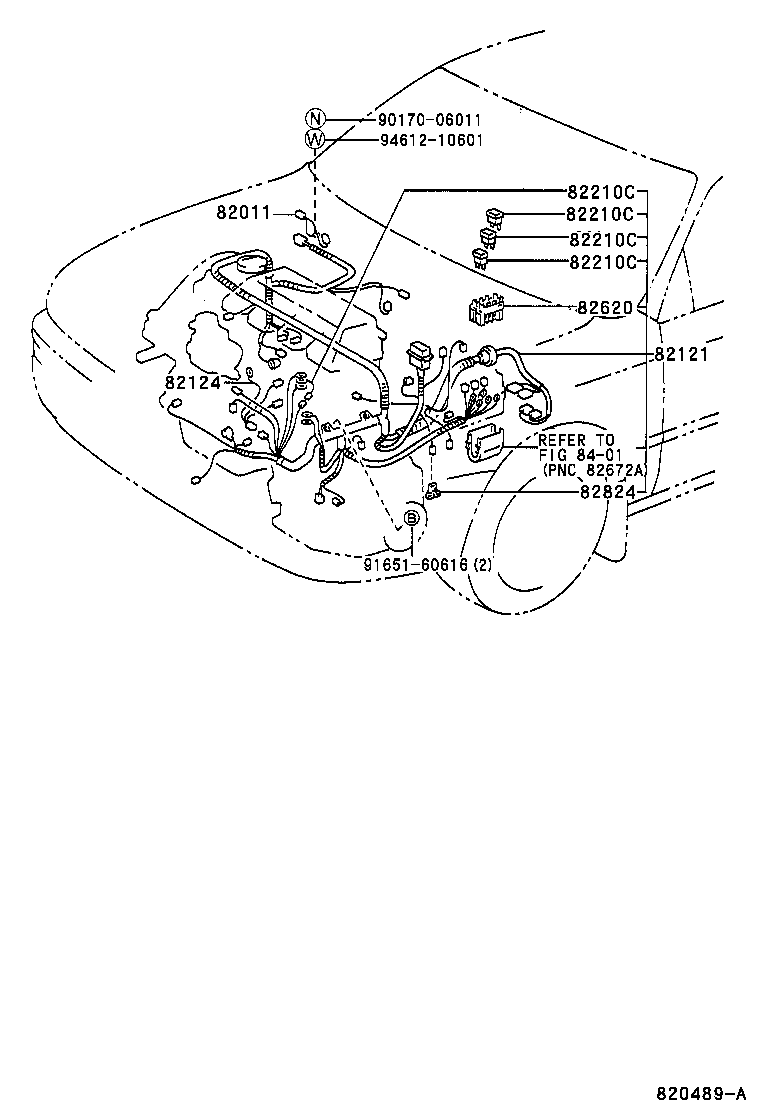

ILLUST NO. 2 OF 9(9205- )CE100

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-12020	CE100	05/1992 - 12/2999	1
82121 - WIRE, ENGINE
82121-1K220	CE100..LHD EUROPE POSSESSION SPEC	05/1992 - 11/1994	1
82121-1K190	CE100..LHD EX.EMISSION (ECE US87) & W(ABS)	05/1992 - 05/1995	1
82121-1K200	CE100..LHD	05/1992 - 05/1995	1
82121-1K221	CE100..LHD EUROPE POSSESSION SPEC	11/1994 - 05/1995	1
82121-1K180	CE100..LHD EX.EMISSION (ECE US87)	05/1992 - 05/1995	1
82121-1K210	CE100..LHD W(ABS)	05/1992 - 05/1995	1
82124 - WIRE, ENGINE, NO.4
82124-12080	CE100	05/1992 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12230	CE100	05/1992 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F	05/1992 - 11/1994	1
82824-20050	AE101..LB..LHD;CE100,EE10#..LHD;AE101..HB..LHD..5F	11/1994 - 05/1995	1
Common parts
90170-06011
91651-60616
94612-10601
Linked diagrams
8401

ILLUST NO. 7 OF 9(9205- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
90119-06316
90119-06390
91651-40816

ILLUST NO. 9 OF 9(9205- )

Click highlighted areas on diagram

REPAIR

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12060	CE100	05/1992 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12060	CE100	05/1992 - 12/2999	1

ILLUST NO. 4 OF 9(9205- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12050	AE10#,CE100,EE10#	05/1992 - 11/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-1A200	CE100..LHD EUROPE POSSESSION SPEC	05/1992 - 12/1993	1
82141-1A190	CE100..LHD W(ABS)	05/1992 - 12/1993	1
82141-1A310	CE100..LHD *FRG & W(ABS)	05/1992 - 12/1993	1
82141-1A180	CE100..LHD	05/1992 - 12/1993	1
82141-1A360	CE100..LHD FINLAND,NORWAY OR DENMARK SPEC	05/1992 - 12/1993	1
82141-1A300	CE100..LHD *FRG	05/1992 - 12/1993	1
82141-1A370	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1992 - 12/1993	1
82141-1A361	CE100..LHD FINLAND,NORWAY OR DENMARK SPEC	12/1993 - 05/1994	1
82141-1A181	CE100..LHD	12/1993 - 11/1994	1
82141-1A191	CE100..LHD W(ABS)	12/1993 - 11/1994	1
82141-1A371	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	12/1993 - 05/1994	1
82141-1A201	CE100..LHD EUROPE POSSESSION SPEC	12/1993 - 11/1994	1
82141-1A311	CE100..LHD *FRG & W(ABS)	12/1993 - 11/1994	1
82141-1A301	CE100..LHD *FRG	12/1993 - 11/1994	1
82141-1A372	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1994 - 11/1994	1
82141-1A362	CE100..LHD FINLAND,NORWAY OR DENMARK SPEC	05/1994 - 11/1994	1
82141-1A192	CE100..LHD W(ABS)	11/1994 - 05/1995	1
82141-1A202	CE100..LHD EUROPE POSSESSION SPEC	11/1994 - 05/1995	1
82141-1A312	CE100..LHD *FRG & W(ABS)	11/1994 - 05/1995	1
82141-1A182	CE100..LHD	11/1994 - 05/1995	1
82141-1A373	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	11/1994 - 05/1995	1
82141-1A302	CE100..LHD *FRG	11/1994 - 05/1995	1
82141-1A363	CE100..LHD FINLAND,NORWAY OR DENMARK SPEC	11/1994 - 05/1995	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	06/1992 - 12/2999	1
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
91611-60612
93568-15014
93568-55014
Linked diagrams
8121
8401

ILLUST NO. 3 OF 9(9205- )

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-1A150
82711-22300
82711-24420
82715-10010
82715-10090
82715-10100
82715-10130
82715-12020
82715-12150
82715-12180
82715-12190
82715-12200
82715-12230
82715-12261
82715-12380
82715-16350
82715-16440
90119-06539
90119-08443
90179-06156
90950-01813
91611-B0816
91651-B0614

ILLUST NO. 3 OF 9(9205- )

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82715-12120
82715-12130
82715-12170
82715-12340
82715-12390
82715-12440
82715-89113
90119-06539
90119-08921
91651-B0614

ILLUST NO. 1 OF 9(9205- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1E620	AE10#,CE100,EE101..LHD W(ABS)	05/1992 - 05/1993	1
82111-1E640	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1992 - 05/1993	1
82111-1H080	AE10#,CE100,EE101..LHD W(ABS)	05/1993 - 09/1993	1
82111-1E660	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F *FRG & W(ABS)	05/1992 - 05/1993	1
82111-1H100	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F *FRG & W(ABS)	05/1993 - 09/1993	1
82111-1H091	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	09/1993 - 05/1994	1
82111-1H090	CE100..LHD FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1993 - 09/1993	1
82111-1E610	AE10#,CE100,EE10#..LHD	05/1992 - 11/1994	1
82111-1E680	CE100..LHD EUROPEAN POSSESSION SPEC	05/1992 - 11/1994	1
82111-1E630	CE100..LHD FINLAND,NORWAY OR DENMARK SPEC	05/1992 - 05/1994	1
82111-1H101	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F *FRG & W(ABS)	09/1993 - 11/1994	1
82111-1H160	AE10#,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS)	05/1994 - 11/1994	1
82111-1E650	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F *FRG	05/1992 - 11/1994	1
82111-1H081	AE10#,CE100,EE101..LHD W(ABS)	09/1993 - 11/1994	1
82111-1H091	CE100..LHD NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1994 - 11/1994	1
82111-1E611	AE10#,CE100,EE10#..LHD	11/1994 - 05/1995	1
82111-1E630	CE100..LHD NORWAY SPEC OR DENMARK SPEC	05/1994 - 11/1994	1
82111-1E681	CE100..LHD EUROPEAN POSSESSION SPEC	11/1994 - 05/1995	1
82111-1H150	AE10#,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC	05/1994 - 11/1994	1
82111-1E631	CE100..LHD NORWAY SPEC OR DENMARK SPEC	11/1994 - 05/1995	1
82111-1H092	CE100..LHD NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	11/1994 - 05/1995	1
82111-1H161	AE10#,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS)	11/1994 - 05/1995	1
82111-1E651	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F *FRG	11/1994 - 05/1995	1
82111-1H082	AE10#,CE100,EE101..LHD W(ABS)	11/1994 - 05/1995	1
82111-1H102	AE101..LB..LHD;CE100,EE101..LHD;AE101..HB..LHD..5F *FRG & W(ABS)	11/1994 - 05/1995	1
82111-1H151	AE10#,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC	11/1994 - 05/1995	1
82114 - WIRE, ENGINE ROOM, NO.4
88605-1H450	CE100..LHD	05/1992 - 05/1995	1
88605-1H520	CE100..LHD W(ABS)	05/1992 - 05/1995	1
82123 - WIRE, ENGINE, NO.3
82123-12260	CE100	05/1992 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08206	CE100 GLOW RESISTER	05/1992 - 12/2999	1
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08203	CE100 80A,TERM.:MALE,BLK	05/1992 - 12/2999	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE10#,CE100,EE10#	05/1992 - 11/1994	2
Common parts
82715-12140
90099-04337
90105-08096
90105-10122
90119-06390
90119-06539
90119-08063
Linked diagrams
8401

ILLUST NO. 6 OF 9(9205- )LB..LHD

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12130	AE10#,CE100,EE10#..5D..LHD W(*EL)	05/1992 - 12/1993	1
82142-12120	AE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI) W(SUN ROOF)	05/1992 - 12/2999	1
82142-12091	AE10#,CE100,EE101..5D..LHD W(PW & EL)	05/1994 - 12/2999	1
82142-12131	AE10#,CE100,EE10#..5D..LHD W(*EL)	12/1993 - 12/2999	1
82161 - WIRE, FLOOR
82161-1K370	AE10#,CE100,EE101..LB..LHD W(ABS)	05/1992 - 11/1994	1
82161-1K360	AE10#,CE100,EE10#..LB..LHD	05/1992 - 11/1994	1
82161-1K371	AE10#,CE100,EE101..LB..LHD W(ABS)	11/1994 - 05/1995	1
82161-1K361	AE10#,CE100,EE10#..LB..LHD	11/1994 - 05/1995	1
82171 - WIRE, ROOF, NO.1
82171-12520	AE10#,CE100,EE10#..LB..LHD	05/1992 - 05/1995	1
82171-12530	AE10#,CE100,EE10#..LB..LHD W(MOON ROOF)	05/1992 - 05/1995	1
82184 - WIRE, BACK DOOR, NO.1
82184-12430	AE10#,CE100,EE10#..LB	05/1992 - 05/1995	1
82185 - WIRE, BACK DOOR, NO.2
82185-12480	AE10#,CE100,EE10#..LB..LHD	05/1992 - 05/1995	1
Common parts
90119-06390
90333-25001

ILLUST NO. 5 OF 9(9205- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A050	AE10#,CE100,EE10#..5D W(*EL)	05/1992 - 09/1993	1
82151-1A051	AE10#,CE100,EE10#..5D W(*EL)	09/1993 - 12/1993	1
82151-12810	AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82151-1A052	AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D W(*EL)	12/1993 - 12/2999	1
82151-1A161	AE10#,CE100,EE101..5D..LHD W(PW & EL)	05/1994 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82151-1A050	AE10#,CE100,EE10#..5D W(EL) OR W(EL & DOOR SPEAKER)	05/1992 - 09/1993	1
82151-1A051	AE10#,CE100,EE10#..5D W(EL) OR W(EL & DOOR SPEAKER)	09/1993 - 12/1993	1
82151-12810	AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82152-1A012	AE10#,CE100,EE101..5D..LHD W(PW & EL)	05/1994 - 12/2999	1
82151-1A052	AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D W(EL) OR W(EL & DOOR SPEAKER)	12/1993 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12220	CE100,EE100..5D;EE101..5D..RHD..XLI	05/1992 - 01/1994	1
82153-12220	EE100..5D;CE100..LB..LHD;CE100,EE101..5D..RHD..(XL,XLI)	01/1994 - 05/1994	1
82153-12210	CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(PW & EL)	05/1994 - 12/2999	1
82153-12220	CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(*EL)	05/1994 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-12220	CE100,EE100..5D;EE101..5D..RHD..XLI	05/1992 - 01/1994	1
82154-12220	EE100..5D;CE100..LB..LHD;CE100,EE101..5D..RHD..(XL,XLI)	01/1994 - 05/1994	1
82154-12210	CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(PW & EL)	05/1994 - 12/2999	1
82154-12220	CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(*EL)	05/1994 - 12/2999	1

CE100L-ALMDSW (1992)

ILLUST NO. 8 OF 9(9205- )

ILLUST NO. 2 OF 9(9205- )CE100

ILLUST NO. 7 OF 9(9205- )

ILLUST NO. 9 OF 9(9205- )

ILLUST NO. 4 OF 9(9205- )LHD

ILLUST NO. 3 OF 9(9205- )

ILLUST NO. 3 OF 9(9205- )

ILLUST NO. 1 OF 9(9205- )

ILLUST NO. 6 OF 9(9205- )LB..LHD

ILLUST NO. 5 OF 9(9205- )

Part Price Details
