CE100L-AGMRSW (1992)
Toyota Corolla Hb/Lb
(9205- )

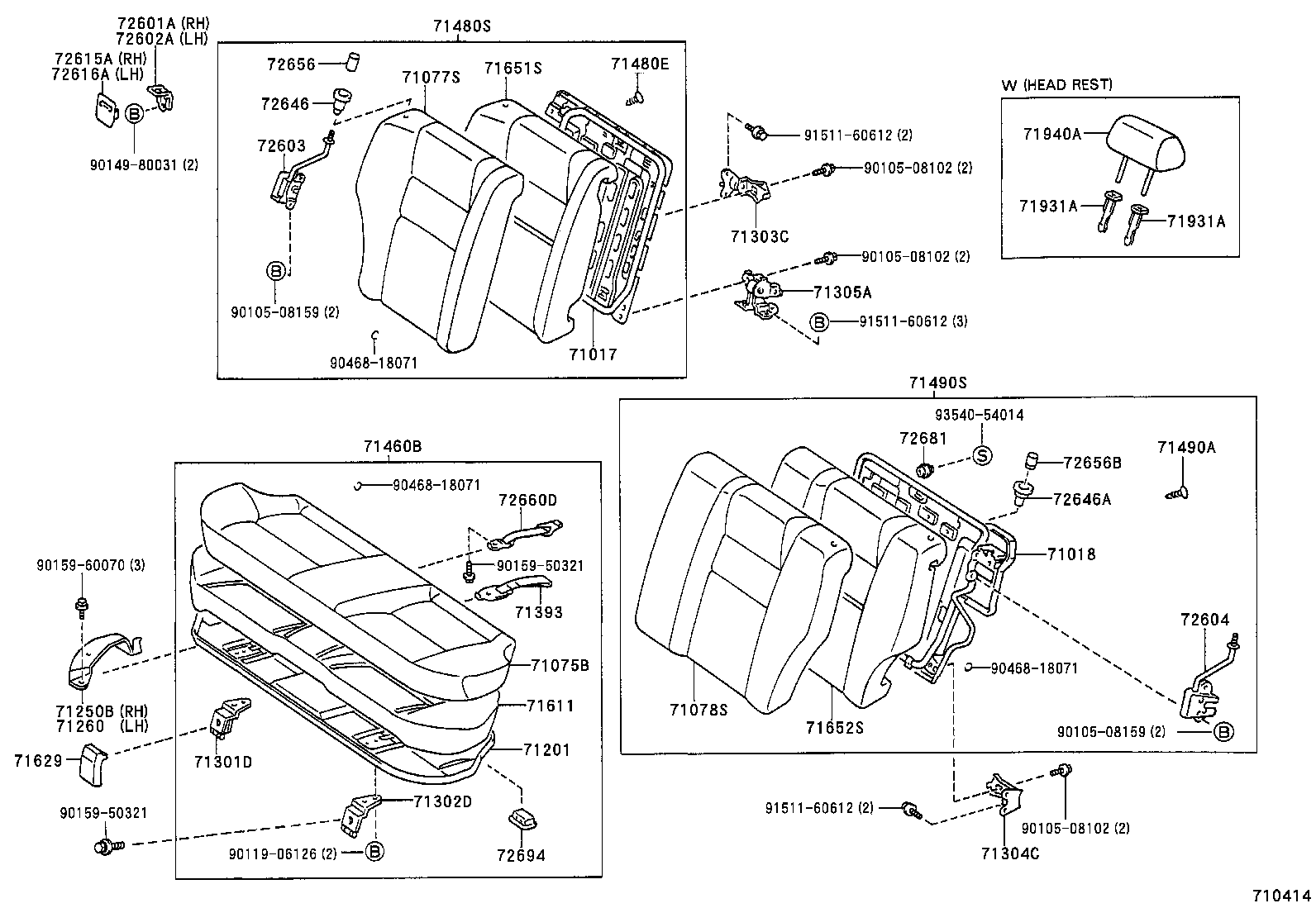

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-13160 |
AE10#,CE100,EE10# |
1 | ||
| 71017-13160 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-13020 |
AE10#,CE100,EE10# |
1 | ||
| 71018-13020 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-13460B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71065-1E370B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13460J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71075-13460B0 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13531B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71075-13531B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13460J0 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71075-13531B3 |
CE100,EE101..STD GRAY/BLUE,TRIM8# |
1 | ||
| 71075-13531B2 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1L030B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L030J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71077-1L031J1 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71077-1L031B1 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L031B1 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L031J1 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71077-1L280B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L032J1 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71077-1L032B1 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L232B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71077-1L232B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L232B2 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1L232B3 |
CE100,EE101..STD GRAY/BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1E150J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71078-1E150B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E151B1 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E151J1 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71078-1E151B1 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E151J1 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71078-1E152B1 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E340B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E152J1 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71078-1E312B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71078-1E312B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E312B3 |
CE100,EE101..STD GRAY/BLUE,TRIM8# |
1 | ||
| 71078-1E312B2 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-13150 |
AE10#,CE100,EE10# |
1 | ||
| 71250B - BRACKET ASSY, SEAT, OUTER RH | ||||
| 71250-13010 |
AE10#,CE100,EE10# |
1 | ||
| 71260 - BRACKET ASSY, SEAT, OUTER LH | ||||
| 71260-13010 |
AE10#,CE100,EE10# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-13070 |
AE10#,CE100,EE10# |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-13030 |
AE10#,CE100,EE10# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12110 |
AE10#,CE100,EE10# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-12110 |
AE10#,CE100,EE10# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE10#,CE100,EE10# |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-13080B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-13670J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71460-13670B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71460-13670B0 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71460-13751B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71460-13751B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71460-13670J0 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71460-13751B3 |
CE100,EE101..STD GRAY/BLUE,TRIM8# |
1 | ||
| 71460-13751B2 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-0704213 |
EE101..HB;AE101..HB..GLI;EE101..LB..XLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI SHADOW GRAY,TRIM1# |
5 | ||
| 90467-07049C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
5 | ||
| 90467-07042J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
5 | ||
| 90467-07042B1 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
5 | ||
| 90467-0704901 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
6 | ||
| 90467-07049C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
6 | ||
| 90467-07042J0 |
EE101..HB;AE101..HB..GLI;EE101..LB..XLI;AE101,CE100,EE100..STD,XL,XLI DARK BLUE,TRIM8# |
5 | ||
| 90467-0704213 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
5 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1L090B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1L090J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71480-1L090B0 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1L090J0 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71480-1L091J0 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71480-1L091B0 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1L292B4 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1L292B5 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71480-1L292B5 |
CE100,EE101..STD GRAY/BLUE,TRIM8# |
1 | ||
| 71480-1L292B4 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-0704901 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
7 | ||
| 90467-07049C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
6 | ||
| 90467-0704213 |
EE101..HB;AE101..HB..GLI;EE101..LB..XLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI SHADOW GRAY,TRIM1# |
6 | ||
| 90467-07042J0 |
EE101..HB;AE101..HB..GLI;EE101..LB..XLI;AE101,CE100,EE100..STD,XL,XLI DARK BLUE,TRIM8# |
6 | ||
| 90467-07049C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
7 | ||
| 90467-07042J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
6 | ||
| 90467-0704213 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
6 | ||
| 90467-07042B1 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
6 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1E220B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1E220J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71490-1E220B0 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1E221B0 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1E220J0 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71490-1E221J0 |
CE100,EE101..STD DARK BLUE,TRIM8# |
1 | ||
| 71490-1E392B4 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1E392B5 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71490-1E392B5 |
CE100,EE101..STD GRAY/BLUE,TRIM8# |
1 | ||
| 71490-1E392B4 |
CE100,EE101..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-13150 |
AE101,CE100,EE10#..STD,XL,XLI |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13010B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
2 | ||
| 71629-13010J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13161 |
AE10#,CE100,EE10# |
1 | ||
| 71651-13161 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13081 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71652-13081 |
AE10#,CE100,EE10# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12120C0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,BLACK,TRIM1# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-13080 |
AE10#,CE100,EE10# |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-13080 |
AE10#,CE100,EE10# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-13120 |
AE10#,CE100,EE10# |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-13120 |
AE10#,CE100,EE10# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-12060B0 |
AE10#,CE100,EE10#..HB SHADOW GRAY,TRIM1# |
1 | ||
| 72615-12060J0 |
AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72616-12040B0 |
AE10#,CE100,EE10#..HB SHADOW GRAY,TRIM1# |
1 | ||
| 72616-12040J0 |
AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-13010B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72646-13010J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-13010B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72646-13010J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72661-13030J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72661-13030J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-13010 |
AE10#,CE100,EE10# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-16010B2 |
AE101,EE101..RHD;AE102,CE100,EE100;AE101..HB..LHD..GLI;AE101,EE101..LHD..(SI,STD,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 72681-16010W3 |
AE101..HB..LHD..GLI;EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72681-16010W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72681-16010B2 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-13010 |
AE10#,CE100,EE10# |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06126 | ||||
| 90149-80031 | ||||
| 90159-50321 | ||||
| 90159-60070 | ||||
| 90468-18071 | ||||
| 91511-60612 | ||||
| 93540-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
