CE100L-AGMRSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )HB

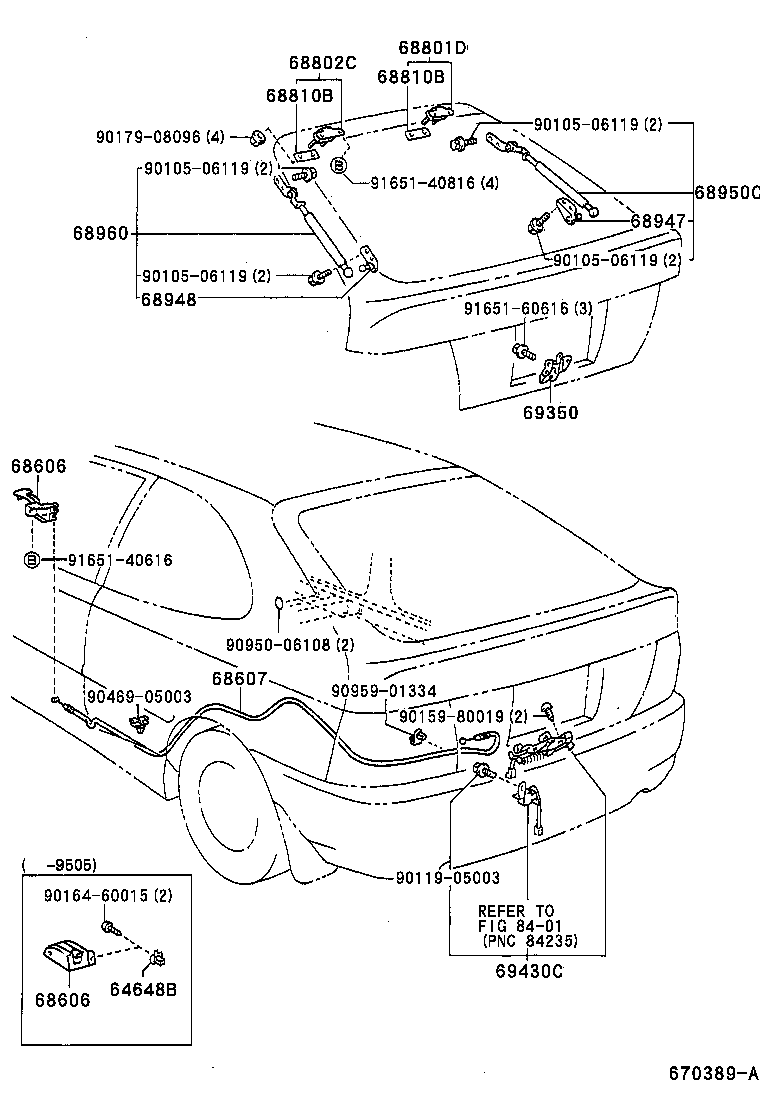

Click highlighted areas on diagram

diagram 64648B 68606 68606 68607 68801D 68802C 68810B 68810B 68947 68948 68950C 68960 69350 69430C 8401 9010506119 9010506119 9010506119 9010506119 9011905003 9015980019 9016460015 9017908096 9046905003 9095006108 9095901334 9165140616 9165140816 9165160616
Part # Description Qty Price
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-12070

AE10#,CE100,EE10#..HB

T=1.6(PAD)

 1
68801-12090

AE10#,CE100,EE10#..HB

T=1.1(PAD)

 1
68802C - HINGE SUB-ASSY, BACK DOOR, LH
68801-12070

AE10#,CE100,EE10#..HB

T=1.6(PAD)

 1
68801-12090

AE10#,CE100,EE10#..HB

T=1.1(PAD)

 1
68810B - PAD, BACK DOOR HINGE
68838-12010

AE10#,CE100,EE10#..HB

T=1.6

 2
68838-14022

AE10#,CE100,EE10#..HB

T=1.1

 2
68810B - PAD, BACK DOOR HINGE
68838-12010

AE10#,CE100,EE10#..HB

T=1.6

 2
68838-14022

AE10#,CE100,EE10#..HB

T=1.1

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-12030

AE10#,CE100,EE10#..HB

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-12030

AE10#,CE100,EE10#..HB

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-19835

CE100,EE101..STD

W(*PW)

 1
68950-19825

CE100,EE101..STD

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-19515

CE100,EE101..STD

 1
68960-19525

CE100,EE101..STD

W(*PW)

 1
69350 - LOCK ASSY, BACK DOOR
69350-12120

AE10#,CE100,EE10#..HB

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12311

AE10#,CE100,EE10#..HB

 1
69430-12310

AE10#,CE100,EE10#..HB

 1
Common parts
90105-06119
90119-05003
90159-80019
90164-60015
90179-08096
90469-05003
90950-06108
90959-01334
91651-40616
91651-40816
91651-60616
Linked diagrams
8401
