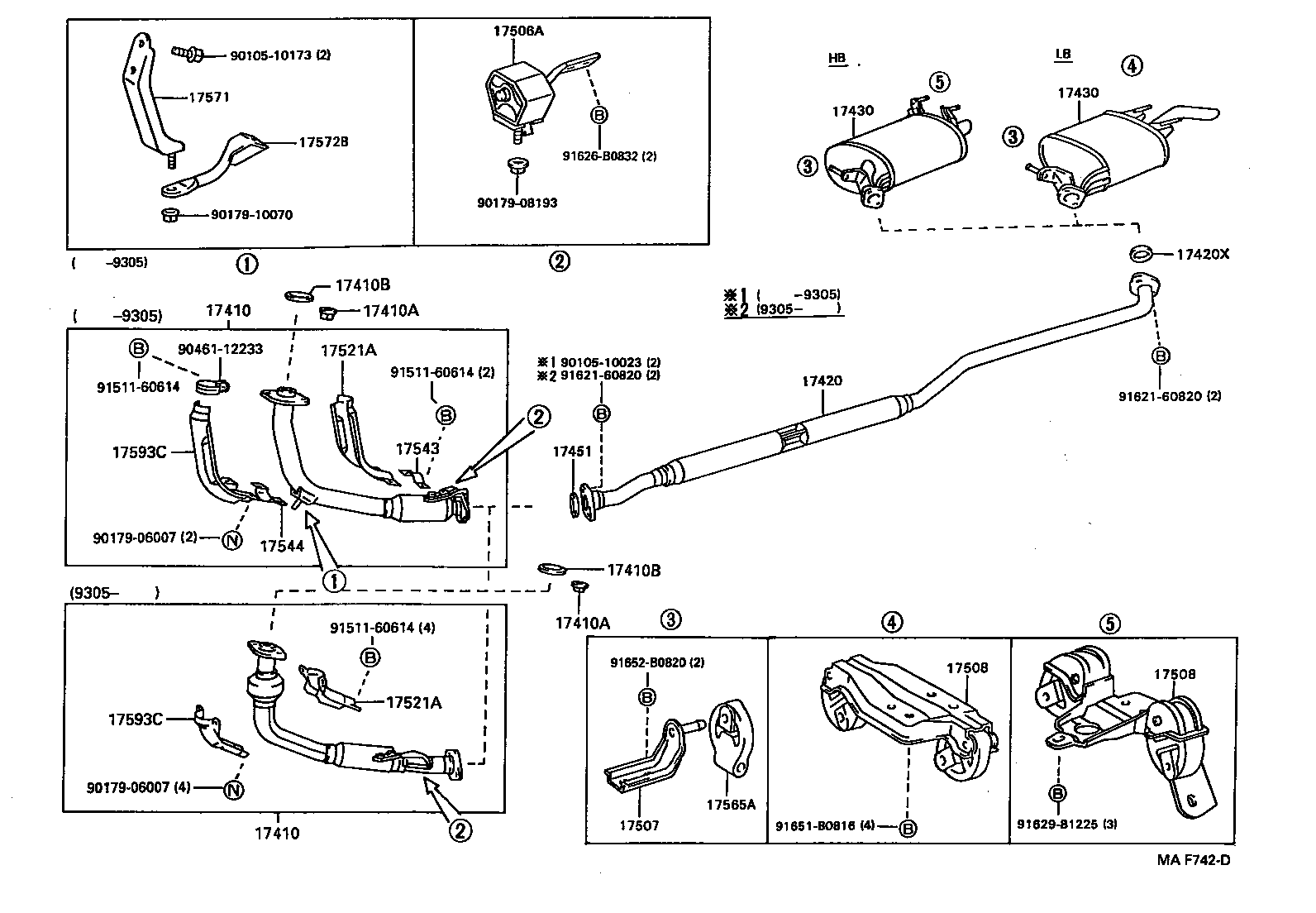

CE100L-AGMRSW (1992)
Toyota Corolla Hb/Lb
(9305- )2C
W(CONVERTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-64010 |
2C..CE100 |
1 | ||
| 18450-64010 |
2C..CE100..LHD |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64532 |
2C..CE100 |
1 | ||
| 17410-64601 |
2C..CE100 |
1 | ||
| 17410-64600 |
2C..CE100 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C..CE100;4AFE..AE101..4FC |
2 | ||
| 90179-10070 |
2C..CE100 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
2C..CE100 |
1 | ||
| 90917-06077 |
2C..CE100 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-64210 |
2C..CE100..LHD W(CONVERTER) |
1 | ||
| 17420-64200 |
2C..CE100..LHD W/O(CONVERTER) |
1 | ||
| 17420-64200 |
2C..CE100 W/O(CONVERTER) |
1 | ||
| 17420-64131 |
2C..CE100 |
1 | ||
| 17420-64210 |
2C..CE100 W(CONVERTER) |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06074 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-64770 |
2C..CE100..HB |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-64770 |
2C..CE100..HB |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06074 |
2C,2E..CE100,EE100 |
1 | ||
| 90917-06045 |
2C..CE100..LHD W(CONVERTER) |
2 | ||
| 90917-06045 |
2C..CE100 W/O(CONVERTER) |
1 | ||
| 90917-06045 |
2C..CE100 W(CONVERTER) |
2 | ||
| 90917-06045 |
2C..CE100..LHD W/O(CONVERTER) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06074 |
2C,2E..CE100,EE100 |
1 | ||
| 90917-06045 |
2C..CE100..LHD W(CONVERTER) |
2 | ||
| 90917-06045 |
2C..CE100 W/O(CONVERTER) |
1 | ||
| 90917-06045 |
2C..CE100 W(CONVERTER) |
2 | ||
| 90917-06045 |
2C..CE100..LHD W/O(CONVERTER) |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17582-41030 |
2C..CE100 |
1 | ||
| 17582-41030 |
2C..CE100..LHD |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-16090 |
4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
1 | ||
| 17506-16140 |
4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
1 | ||
| 17506-16140 |
4AFE,2C..AE101,CE100 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15040 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-16080 |
4AFE,2C,4EFE..AE101,CE100,EE101 |
1 | ||
| 17508-16070 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..HB |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-16080 |
4AFE,2C,4EFE..AE101,CE100,EE101 |
1 | ||
| 17508-16070 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..HB |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-64040 |
2C..CE100 |
1 | ||
| 17521-64100 |
2C..CE100 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-16230 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-64040 |
2C..CE100 |
1 | ||
| 17593-64090 |
2C..CE100 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90179-06007 | ||||
| 90179-08193 | ||||
| 91511-60614 | ||||
| 91621-60820 | ||||
| 91626-B0832 | ||||
| 91629-B1225 | ||||
| 91651-B0816 | ||||
| 91652-B0820 | ||||
| 94185-61000 | ||||
(9205- )2C
W/O(CONVERTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64532 |
2C..CE100 |
1 | ||
| 17410-64601 |
2C..CE100 |
1 | ||
| 17410-64600 |
2C..CE100 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64532 |
2C..CE100 |
1 | ||
| 17410-64601 |
2C..CE100 |
1 | ||
| 17410-64600 |
2C..CE100 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C..CE100;4AFE..AE101..4FC |
2 | ||
| 90179-10070 |
2C..CE100 |
2 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C..CE100;4AFE..AE101..4FC |
2 | ||
| 90179-10070 |
2C..CE100 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
2C..CE100 |
1 | ||
| 90917-06077 |
2C..CE100 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
2C..CE100 |
1 | ||
| 90917-06077 |
2C..CE100 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-64210 |
2C..CE100..LHD W(CONVERTER) |
1 | ||
| 17420-64200 |
2C..CE100..LHD W/O(CONVERTER) |
1 | ||
| 17420-64200 |
2C..CE100 W/O(CONVERTER) |
1 | ||
| 17420-64131 |
2C..CE100 |
1 | ||
| 17420-64210 |
2C..CE100 W(CONVERTER) |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06074 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-64770 |
2C..CE100..HB |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-64770 |
2C..CE100..HB |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06074 |
2C,2E..CE100,EE100 |
1 | ||
| 90917-06045 |
2C..CE100..LHD W(CONVERTER) |
2 | ||
| 90917-06045 |
2C..CE100 W/O(CONVERTER) |
1 | ||
| 90917-06045 |
2C..CE100 W(CONVERTER) |
2 | ||
| 90917-06045 |
2C..CE100..LHD W/O(CONVERTER) |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-16090 |
4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
1 | ||
| 17506-16140 |
4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
1 | ||
| 17506-16140 |
4AFE,2C..AE101,CE100 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15040 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-16080 |
4AFE,2C,4EFE..AE101,CE100,EE101 |
1 | ||
| 17508-16070 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..HB |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-16080 |
4AFE,2C,4EFE..AE101,CE100,EE101 |
1 | ||
| 17508-16070 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..HB |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-64040 |
2C..CE100 |
1 | ||
| 17521-64100 |
2C..CE100 |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-64040 |
2C..CE100 |
1 | ||
| 17521-64100 |
2C..CE100 |
1 | ||
| 17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3 | ||||
| 17543-64010 |
2C..CE100 |
1 | ||
| 17544 - STAY, EXHAUST PIPE PROTECTOR, NO.4 | ||||
| 17544-64010 |
2C..CE100 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-16230 |
4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-64130 |
2C..CE100 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-64120 |
2C..CE100 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-64040 |
2C..CE100 |
1 | ||
| 17593-64090 |
2C..CE100 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-64040 |
2C..CE100 |
1 | ||
| 17593-64090 |
2C..CE100 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90105-10173 | ||||
| 90179-06007 | ||||
| 90179-08193 | ||||
| 90179-10070 | ||||
| 90461-12233 | ||||
| 91511-60614 | ||||
| 91621-60820 | ||||
| 91626-B0832 | ||||
| 91629-B1225 | ||||
| 91651-B0816 | ||||
| 91652-B0820 | ||||
