CE100L-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )CE100

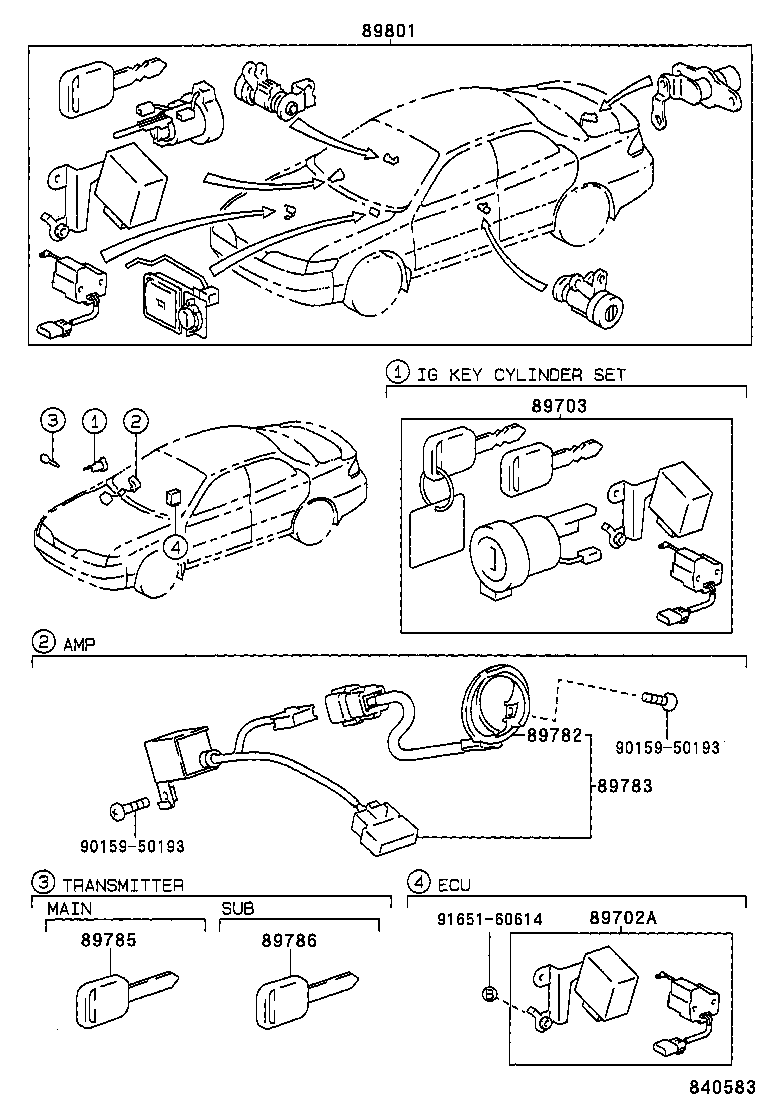

Click highlighted areas on diagram

diagram 89702A 89703 89782 89783 89785 89786 89801 9015950193 9015950193 9165160614
Part # Description Qty Price
89702A - COMPUTER SET, TRANSPONDER W/VALVE CONTROL
89702-12020

CE100..LHD

 1
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-12090

CE100..LHD

 1
89782 - COIL, TRANSPONDER KEY
89782-12010

AE101,CE100,EE101

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-12010

AE101,CE100,EE101

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-12020

AE101,CE100,EE101

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-12020

AE101,CE100,EE101

 1
89801 - COMPUTER SET, TRANSPONDER KEY DIESEL
89801-12060

CE100..LHD..XL

 1
Common parts
90159-50193
91651-60614
