CE100L-AGMDSW (1992)
Toyota Corolla Hb/Lb

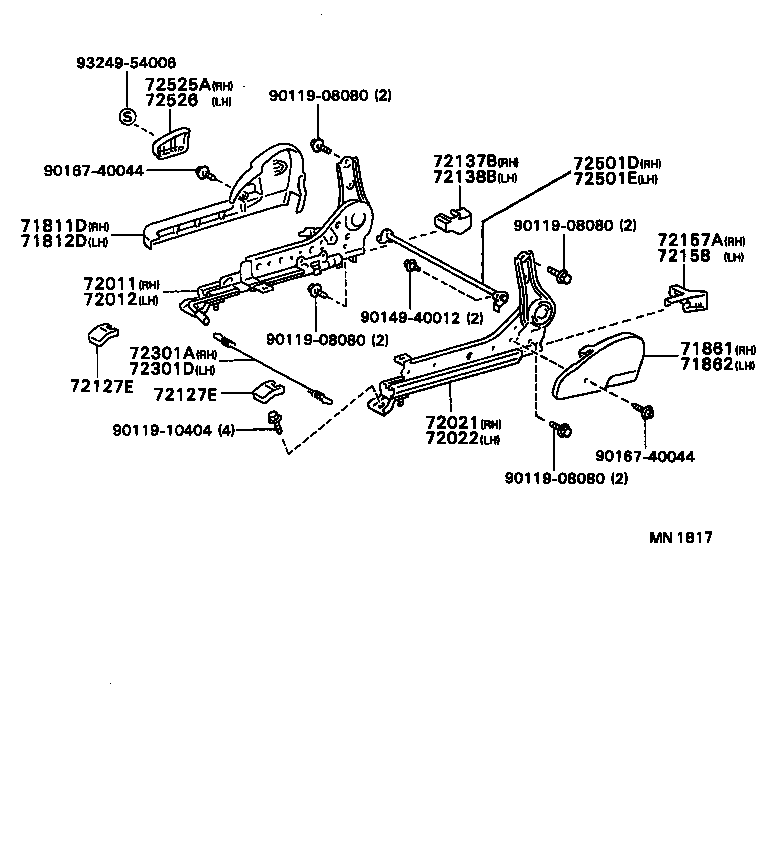

ILLUST NO. 2 OF 2(9205- )LHD..GLI,GTI,SI,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12320B0 |
AE10#,CE100,EE10#..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12320J0 |
AE101,CE100,EE10#..3D..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12270B0 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12270B0 |
AE101..XLI;AE101..RHD..GLI;CE100,EE101..5D;CE100,EE101..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12290B0 |
AE101,CE100,EE101..LHD..(GLI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12270J0 |
CE100..5D;CE100..3D..LHD;AE101,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812-12290J0 |
AE101,CE100,EE101..LHD..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812-12290B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12290J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71812-12270J0 |
AE101..XLI;AE101..RHD..GLI;CE100,EE101..5D;CE100,EE101..3D..LHD DARK BLUE,TRIM8# |
1 | ||
| 71812-12290J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71812-12290B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12230B0 |
AE101,CE100,EE101..RHD;AE101,CE100,EE101..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12230J0 |
AE101,CE100,EE101..RHD..(GLI,XL,XLI);AE101,CE100,EE101..3D..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71861-12230J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861-12230B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12230J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861-12230B0 |
AE10#,EE100;CE100,EE101..3D;CE100,EE101..LB;CE100,EE101..HB..5D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12230B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12220B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71862-12220B0 |
AE101..SI,XLI;EE101..5D..LHD;CE100,EE101..3D..(GLI,XL,XLI);AE101,CE100..5D..LHD..(GLI,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71862-12220J0 |
CE100,EE101..5D..LHD;AE101..LHD..(GLI,XLI);CE100,EE101..3D..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12240 |
AE10#,CE100,EE10#..3D..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12310 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 72012-12300 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12280 |
AE10#,CE100,EE10#..3D..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12350 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72022-12360 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127-12010C0 |
AE101,CE100,EE101..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127-12010C0 |
AE101,CE100,EE101..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127-12010C0 |
AE101,CE100,EE101..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127-12010C0 |
AE101,CE100,EE101..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72137-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72137-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72138-12040P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72157-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72158-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12140 |
AE101,CE100,EE101..RHD;AE101,CE100,EE101..3D..LHD |
1 | ||
| 72301-12140 |
AE10#,CE100,EE10#..3D..LHD;AE10#,EE101..RHD..(GLI,GTI,SI) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12140 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 72301-12160 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B1 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020B1 |
EE101..GLI;AE10#,EE100;CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020B1 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020J0 |
EE101..GLI;AE101,EE100..GLI,XL,XLI;CE100,EE101..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72457-22020J0 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72457-22020J0 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-12080 |
AE10#,CE100,EE10# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-12060 |
AE10#,CE100,EE10# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12110J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72525-12110J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72525-12110B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12110B0 |
AE101,CE100,EE101..RHD;AE101,CE100,EE101..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12110J0 |
AE101,CE100,EE101..RHD..(GLI,XL,XLI);AE101,CE100,EE101..3D..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72525-12110B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72526-12050B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050B0 |
AE101..SI,XLI;EE101..5D..LHD;CE100,EE101..3D..(GLI,XL,XLI);AE101,CE100..5D..LHD..(GLI,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72526-12050J0 |
CE100,EE101..5D..LHD;AE101..LHD..(GLI,XLI);CE100,EE101..3D..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||

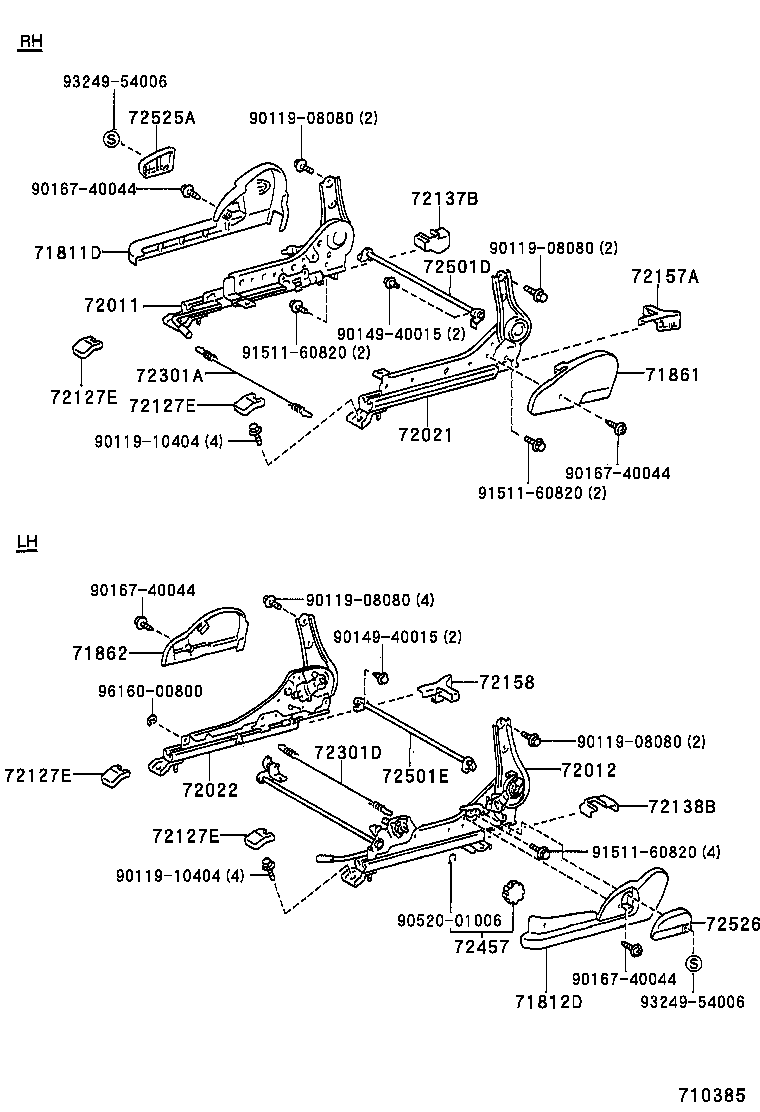

ILLUST NO. 1 OF 2(9205- )GLI ; (9605- )GLI,XL,XLI ; (9611-9704)RHD..5F..XLI ; (9611-9704)5D..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1K680J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K680B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K490J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K490J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71071-1K700J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K690J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K490B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K490B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K700B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K690B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K701B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71071-1K701B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L140B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L150B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L420B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L420B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1L420B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1L190B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71071-1L420B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L190B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71071-1K691J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K680J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K680B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K702B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71071-1K702B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K703B5 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1L421B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1K691B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L421B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K703B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L240B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K722B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1K722B2 |
AE101,CE100,EE101..3D..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K733B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L220B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K733B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1E580J0 |
CE100,EE101..3D..LHD..5F..(XL,XLI) W(FULL FABRIC SR & 2 WAY VERTICAL SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8# |
1 | ||
| 71072-1E570J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E580B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E420B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E420J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71072-1E570B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E560J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E580J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E560B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E830B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E820B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E571B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E581B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E571B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H180B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E581B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H180B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E870B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71072-1H190B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H190B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E640B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E870B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71072-1E640J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E630B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E630J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-1H181B4 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E572B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E582B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H181B3 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H191B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H191B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E582B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E572B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E612B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E612B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H010B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E592B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E592B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H050B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H020B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H030B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K250J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71073-1K250B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K280J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K520B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K400J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K280B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K530B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K250J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K250B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K400B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K410J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K410B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K410J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K410B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K281B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K281B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K710B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K710B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K282B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K790B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71073-1K790B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71073-1K710B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K711B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K401B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K401J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K411B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K711B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K711B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K282B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K710B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K711B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K261B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K261B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K291B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K291B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K411J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K810B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K800B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K800B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H190B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H210J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71074-1H190J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H210B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H600B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H210J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H210B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H270J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H200B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H610B0 |
AE101,CE100,EE101..LHD 95 SPRING GAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H270B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H200J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H271B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H271B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H190B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H190J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H560B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H560B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H560B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H561B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H720B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71074-1H191B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H201J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H272B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H191J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H561B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H201B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H272B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H560B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H561B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H561B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H720B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71074-1H161B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H161B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H281B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H750B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H740B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H740B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H281B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1K710B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K710J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71410-1K710B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L350J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L420J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K710J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L350B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L351B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L420B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L351B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71410-1L530B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L530B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L530B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L530B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L352B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71410-1L352B1 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L090J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L353B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L421J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L421B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L353B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L531B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L090B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L531B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1K892B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K892B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L331B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L510B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L331B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L570B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1H100B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H340J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H340B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H270J0 |
CE100,EE101..3D..LHD..5F..(XL,XLI) W/O(REAR SEAT) & W(2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H100J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71420-1E830B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H260J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H270B0 |
CE100,EE101..3D..LHD..5F..(XL,XLI) W/O(REAR SEAT) & W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H260B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E830J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420-1E610B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H270J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H270B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E610J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71420-1H271B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H271B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H261B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H460B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H262B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H470B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H100J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H261B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H460B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H100B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H340B0 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H262B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H470B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H461B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H340J0 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H272B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H471B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H471B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1E801B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H272B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H461B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H080B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H120B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H160B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H090B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E801B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H231B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H231B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K700J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K630J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71430-1K630B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L030J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K700B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L030B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K630B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K630J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L050B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L050J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L220B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1K700B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L031B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L220B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L220B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L031B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K701B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L032B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L221B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K701J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L220B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L051J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K700J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L032B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L051B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L221B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L221B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L160B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K461B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L221B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1K601B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L160B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K461B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K601B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L230B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K550B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K480B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K760J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K480J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K480J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71440-1K760B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K550J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K770B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K480B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K550B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K770J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K761B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1L030B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1L030B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K550J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K761B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L030B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L030B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1K762B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1K551J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K762B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K771B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K771J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-1L031B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L031B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K471B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1K551B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K471B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K581B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L130B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K581B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1L140B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12301 |
EE101..LHD..GLI;AE101..LHD..(GLI,XLI);CE100,EE10#..STD,XL,XLI |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-12301 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71506-12201 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12770 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 71511-12770 |
AE101,CE100,EE10#..STD,XL,XLI |
1 | ||
| 71511-12810 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12770 |
AE101,CE100,EE10#..STD,XL,XLI |
1 | ||
| 71511-12770 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 71511-12810 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),RH |
1 | ||
| 71553-12290 |
AE101,CE100,EE10#..SI,STD,XL,XLI |
2 | ||
| 71553-12330 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),LH |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE101,CE100,EE10#..SI,STD,XL,XLI |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12420 |
EE101..LHD..GLI;AE101,EE100..LHD;CE100,EE101..STD,XL,XLI |
1 | ||
| 71610-12420 |
AE101,CE100,EE101..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12280 |
AE101,EE101..RHD;EE101..LHD..(STD,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71620-12290 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A320B1 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A430B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A320J1 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910-1A590C0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,BLACK,TRIM1# |
1 | ||
| 71910-1A430J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A430J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A680B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A730C0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71910-1A570B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A430B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A680J0 |
AE101,CE100,EE10#..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910-1A730C0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
2 | ||
| 71910-1A580B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A750B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A580J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A570J0 |
AE101,CE100,EE101..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A320B1 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A430B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A320J1 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910-1A590C0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,BLACK,TRIM1# |
1 | ||
| 71910-1A430J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A430J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A680B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A730C0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71910-1A570B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A430B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A680J0 |
AE101,CE100,EE10#..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910-1A730C0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
2 | ||
| 71910-1A580B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A750B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A580J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A570J0 |
AE101,CE100,EE101..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-12100 |
AE101,CE100,EE101..LHD..(GLI,XL,XLI) |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-12030 |
AE101,CE100,EE101..LHD..(GLI,XL,XLI) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B0 |
EE101..GLI;AE101..GLI,XLI;CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 72791-12010J0 |
EE101..GLI;AE101..GLI,XLI;CE100,EE101..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-60618 | ||||
| 93540-14014 | ||||
ILLUST NO. 2 OF 2(9205- )STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12320B0 |
AE10#,CE100,EE10#..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12320J0 |
AE101,CE100,EE10#..3D..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12270B0 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12270B0 |
AE101..XLI;AE101..RHD..GLI;CE100,EE101..5D;CE100,EE101..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12290B0 |
AE101,CE100,EE101..LHD..(GLI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12270J0 |
CE100..5D;CE100..3D..LHD;AE101,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812-12290J0 |
AE101,CE100,EE101..LHD..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812-12290B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12290J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71812-12270J0 |
AE101..XLI;AE101..RHD..GLI;CE100,EE101..5D;CE100,EE101..3D..LHD DARK BLUE,TRIM8# |
1 | ||
| 71812-12290J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71812-12290B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12230B0 |
AE101,CE100,EE101..RHD;AE101,CE100,EE101..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12230J0 |
AE101,CE100,EE101..RHD..(GLI,XL,XLI);AE101,CE100,EE101..3D..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71861-12230J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861-12230B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12230J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861-12230B0 |
AE10#,EE100;CE100,EE101..3D;CE100,EE101..LB;CE100,EE101..HB..5D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12230B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12220B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71862-12220B0 |
AE101..SI,XLI;EE101..5D..LHD;CE100,EE101..3D..(GLI,XL,XLI);AE101,CE100..5D..LHD..(GLI,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71862-12220J0 |
CE100,EE101..5D..LHD;AE101..LHD..(GLI,XLI);CE100,EE101..3D..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12240 |
AE10#,CE100,EE10#..3D..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12310 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 72012-12300 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12280 |
AE10#,CE100,EE10#..3D..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12350 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72022-12360 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127-12010C0 |
AE101,CE100,EE101..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127-12010C0 |
AE101,CE100,EE101..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72137-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72137-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72138-12040P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72157-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72158-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030C0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12140 |
AE101,CE100,EE101..RHD;AE101,CE100,EE101..3D..LHD |
1 | ||
| 72301-12140 |
AE10#,CE100,EE10#..3D..LHD;AE10#,EE101..RHD..(GLI,GTI,SI) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12140 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 72301-12160 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-12080 |
AE10#,CE100,EE10# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-12060 |
AE10#,CE100,EE10# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12110J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72525-12110J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72525-12110B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12110B0 |
AE101,CE100,EE101..RHD;AE101,CE100,EE101..3D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12110J0 |
AE101,CE100,EE101..RHD..(GLI,XL,XLI);AE101,CE100,EE101..3D..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72525-12110B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72526-12050B0 |
AE101,CE100,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050B0 |
AE101..SI,XLI;EE101..5D..LHD;CE100,EE101..3D..(GLI,XL,XLI);AE101,CE100..5D..LHD..(GLI,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72526-12050J0 |
CE100,EE101..5D..LHD;AE101..LHD..(GLI,XLI);CE100,EE101..3D..(GLI,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 93249-54006 | ||||
ILLUST NO. 1 OF 2(9205- )STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1K680J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K680B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K490J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K490J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71071-1K700J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K690J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K490B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K490B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K700B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K690B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K701B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71071-1K701B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L140B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L150B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L420B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L420B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1L420B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1L190B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71071-1L420B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L190B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71071-1K691J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K680J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71071-1K680B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K702B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71071-1K702B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K703B5 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1L421B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1K691B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L421B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K703B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L240B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K722B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71071-1K722B2 |
AE101,CE100,EE101..3D..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K733B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L220B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K733B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1E580J0 |
CE100,EE101..3D..LHD..5F..(XL,XLI) W(FULL FABRIC SR & 2 WAY VERTICAL SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8# |
1 | ||
| 71072-1E570J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E580B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E420B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E420J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71072-1E570B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E560J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E580J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E560B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E830B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E820B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E571B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E581B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E571B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H180B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E581B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H180B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E870B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71072-1H190B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H190B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E640B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E870B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71072-1E640J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-1E630B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E630J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-1H181B4 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E572B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E582B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H181B3 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H191B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1H191B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E582B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E572B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E612B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E612B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H010B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E592B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71072-1E592B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H050B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H020B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H030B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K250J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71073-1K250B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K280J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K520B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K400J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K280B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K530B0 |
AE101,CE100,EE101..LHD 95 SPRING CAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K250J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K250B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K400B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K410J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K410B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K410J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K410B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K281B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K281B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K710B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K710B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K282B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K790B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71073-1K790B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71073-1K710B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K711B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K401B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K401J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K411B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K711B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K711B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K282B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K710B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K711B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K261B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K261B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K291B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K291B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71073-1K411J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71073-1K810B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K800B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K800B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H190B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H210J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71074-1H190J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H210B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H600B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H210J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H210B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H270J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H200B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H610B0 |
AE101,CE100,EE101..LHD 95 SPRING GAMPAIGN,W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H270B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H200J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H271B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H271B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H190B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H190J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H560B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H560B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H560B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H561B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H720B0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
1 | ||
| 71074-1H191B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H201J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H272B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H191J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71074-1H561B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H201B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H272B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H560B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H561B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H561B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H720B0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71074-1H161B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H161B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H281B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71074-1H750B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H740B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H740B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H281B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1K710B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K710J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71410-1K710B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L350J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L420J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K710J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L350B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L351B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L420B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L351B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71410-1L530B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L530B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L530B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L530B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L352B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),BLUE/GRAY,TRIM8# |
1 | ||
| 71410-1L352B1 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L090J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L353B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L421J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71410-1L421B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L353B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L531B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L090B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L531B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1K892B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K892B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L331B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L510B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L331B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71410-1L570B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1H100B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H340J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H340B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H270J0 |
CE100,EE101..3D..LHD..5F..(XL,XLI) W/O(REAR SEAT) & W(2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H100J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71420-1E830B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H260J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H270B0 |
CE100,EE101..3D..LHD..5F..(XL,XLI) W/O(REAR SEAT) & W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H260B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E830J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420-1E610B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H270J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H270B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E610J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71420-1H271B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H271B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H261B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H460B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H262B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H470B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H100J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H261B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H460B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H100B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H340B0 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H262B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H470B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H461B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H340J0 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & 2 WAY VERTICAL SEAT & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71420-1H272B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H471B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H471B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1E801B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H272B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H461B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H080B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H120B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H160B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H090B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E801B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H231B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71420-1H231B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K700J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K630J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71430-1K630B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L030J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K700B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L030B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K630B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K630J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L050B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L050J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L220B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1K700B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L031B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L220B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L220B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L031B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K701B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L032B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L221B2 |
AE101,CE100,EE101..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K701J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L220B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L051J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K700J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71430-1L032B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L051B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L221B3 |
AE101,CE100,EE101..STD,XL,XLI GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L221B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L160B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K461B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L221B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1K601B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1L160B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K461B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K601B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71430-1L230B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K550B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K480B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K760J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K480J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K480J0 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71440-1K760B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K550J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K770B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K480B0 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K550B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K770J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K761B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1L030B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1L030B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K550J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K761B2 |
AE101,CE100,EE101..HB..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L030B1 |
AE101,CE100,EE10#..HB..(XL,XLI) GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L030B1 |
AE101,CE100,EE10#..HB..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1K762B4 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1K551J0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
1 | ||
| 71440-1K762B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K771B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K771J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**) & SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71440-1L031B3 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L031B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K471B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1K551B0 |
AE101,CE100,EE101..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K471B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K581B1 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),GRAY/BLUE,TRIM8# |
1 | ||
| 71440-1L130B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K581B2 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1L140B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12301 |
EE101..LHD..GLI;AE101..LHD..(GLI,XLI);CE100,EE10#..STD,XL,XLI |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-12301 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71506-12201 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12770 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 71511-12770 |
AE101,CE100,EE10#..STD,XL,XLI |
1 | ||
| 71511-12810 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12770 |
AE101,CE100,EE10#..STD,XL,XLI |
1 | ||
| 71511-12770 |
AE101,CE100,EE101..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 71511-12810 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),RH |
1 | ||
| 71553-12290 |
AE101,CE100,EE10#..SI,STD,XL,XLI |
2 | ||
| 71553-12330 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**) & 2 WAY VERTICAL SEAT),LH |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE101,CE100,EE10#..SI,STD,XL,XLI |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12420 |
EE101..LHD..GLI;AE101,EE100..LHD;CE100,EE101..STD,XL,XLI |
1 | ||
| 71610-12420 |
AE101,CE100,EE101..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12280 |
AE101,EE101..RHD;EE101..LHD..(STD,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71620-12290 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(2 WAY VERTICAL SEAT) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A320B1 |
AE101,CE100,EE10#..STD,XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A430B0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A320J1 |
AE101,CE100,EE10#..STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910-1A590C0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,BLACK,TRIM1# |
1 | ||
| 71910-1A430J0 |
AE101,CE100,EE10#..LHD..(XL,XLI) W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A430J0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A680B0 |
AE101,CE100,EE10#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A730C0 |
CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SHADOW GRAY,TRIM1 |
1 | ||
| 71910-1A570B0 |
AE101,CE100,EE101..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A430B0 |
AE101,CE100,EE10#..XL,XLI W(FULL FABRIC SR(BC**/BD**/YK**/YS**/YR**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A680J0 |
AE101,CE100,EE10#..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71910-1A730C0 |
AE101..5D..4FC..XLI;EE101..3D..LHD..XLI;AE101,CE100..LHD..5F..(XL,XLI) '96 SPRING CAMPAIGN(HOLLAND),SHADOW GRAY,TRIM1 |
2 | ||
| 71910-1A580B0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A750B0 |
AE101,CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A580J0 |
AE101,CE100,EE101..LHD..(XL,XLI) W(FULL FABRIC GL(BA**/BB**)),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A570J0 |
AE101,CE100,EE101..XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AE101,CE100,EE101..GLI,STD,XL,XLI W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
