CE100L-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )HB

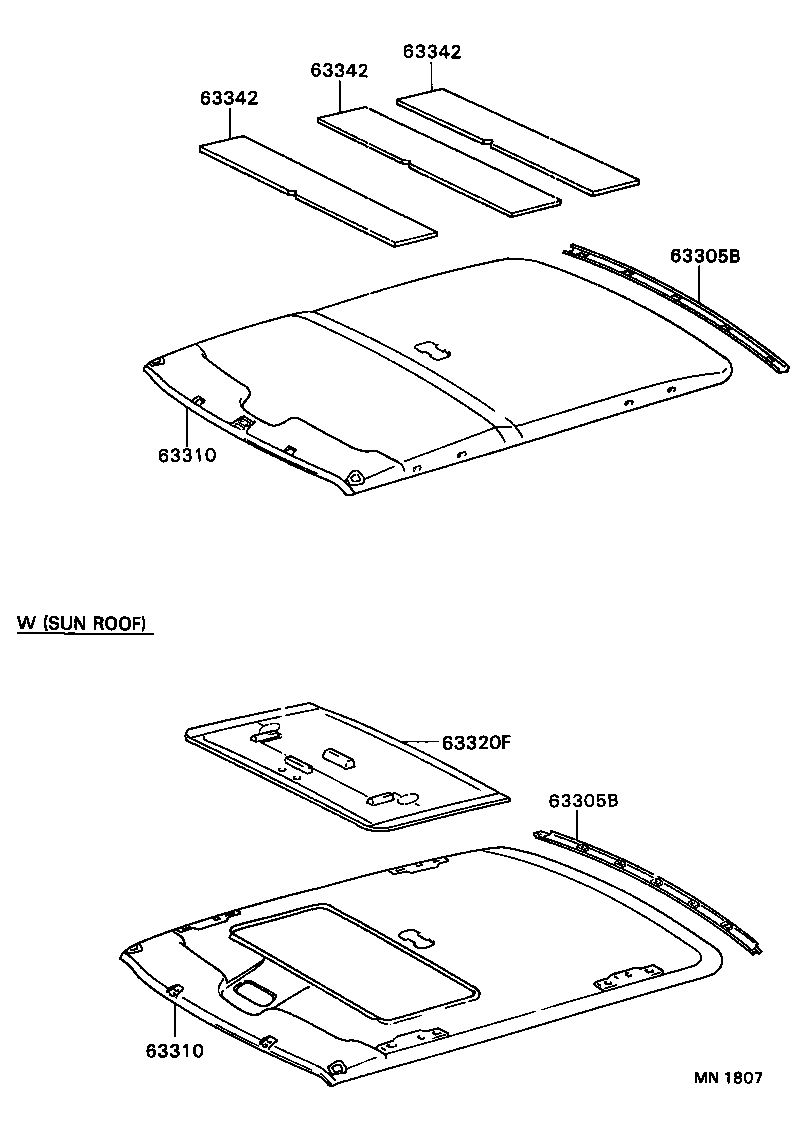

Click highlighted areas on diagram

diagram 63305B 63305B 63310 63310 63320F 63342 63342 63342
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-12160J0

AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)

DARK BLUE,TRIM8#

 1
63305-12160B0

AE10#,CE100,EE10#..HB

SHADOW GRAY,TRIM1#

 1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-12160J0

AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)

DARK BLUE,TRIM8#

 1
63305-12160B0

AE10#,CE100,EE10#..HB

SHADOW GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-1A370B0

AE10#,CE100,EE10#..HB..LHD..(GLI,GTI,SI,XL,XLI)

W(SUN ROOF),LIGHT GRAY,TRIM1#

 1
63310-1A370J0

AE101,CE100,EE10#..HB..LHD..(GLI,XL,XLI)

W(SUN ROOF),LIGHT BLUE,TRIM8#

 1
63310-1A350B1

AE10#,CE100,EE10#..HB

LIGHT GRAY,TRIM1#

 1
63310-1A350J1

AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)

LIGHT BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1A370B0

AE10#,CE100,EE10#..HB..LHD..(GLI,GTI,SI,XL,XLI)

W(SUN ROOF),LIGHT GRAY,TRIM1#

 1
63310-1A370J0

AE101,CE100,EE10#..HB..LHD..(GLI,XL,XLI)

W(SUN ROOF),LIGHT BLUE,TRIM8#

 1
63310-1A350B1

AE10#,CE100,EE10#..HB

LIGHT GRAY,TRIM1#

 1
63310-1A350J1

AE101,CE100,EE10#..HB..(GLI,STD,XL,XLI)

LIGHT BLUE,TRIM8#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-12110S3

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

LIGHT GRAY,TRIM1#

 1
63320-12110W5

AE101,CE100,EE10#..GLI,XL,XLI

LIGHT BLUE,TRIM8#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,EE10#..HB

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,EE10#..HB

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,EE10#..HB

 3
