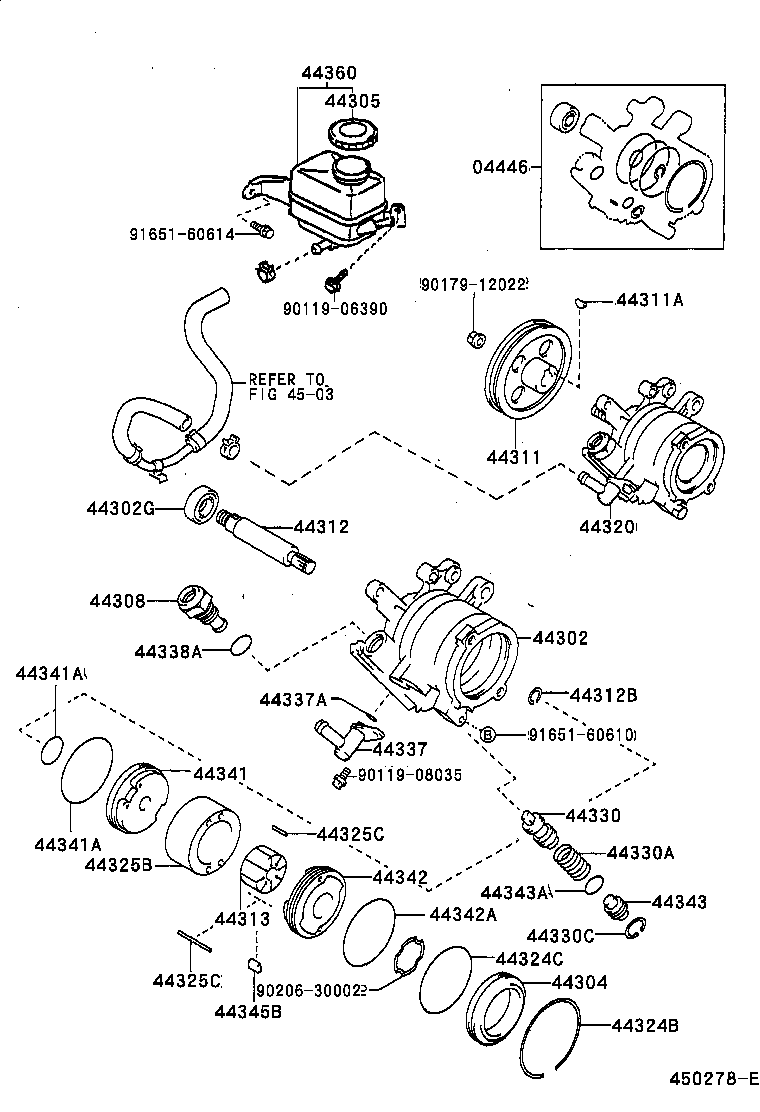

CE100L-AGMDSW (1992)
Toyota Corolla Hb/Lb
(9205- )CE100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-20030 |
CE100,EE10# |
1 | ||
| 04446-27011 |
CE100 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12041 |
CE100 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
CE100,EE10# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-12031 |
CE100,EE10# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12030 |
CE100,EE10# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-12022 |
CE100 |
1 | ||
| 44308-12042 |
CE100,EE101 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12030 |
CE100 |
1 | ||
| 44311-12130 |
CE100 |
1 | ||
| 44311-12030 |
CE100 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CE100,EE10# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
CE100,EE10# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AE10#,CE100,EE10# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
CE100,EE10# NO MARK |
1 | ||
| 44313-22050 |
CE100,EE10# MARK 1 |
1 | ||
| 44313-22070 |
CE100,EE10# MARK 3 |
1 | ||
| 44313-22080 |
CE100,EE10# MARK 4 |
1 | ||
| 44313-22060 |
CE100,EE10# MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-12270 |
CE100 |
1 | ||
| 44320-12271 |
CE100 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
CE100,EE10# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
CE100,EE10# |
1 | ||
| 90301-52001 |
CE100,EE10# |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-12120 |
CE100,EE10# MARK 1 |
1 | ||
| 44325-12140 |
CE100,EE10# MARK 3 |
1 | ||
| 44325-12150 |
CE100,EE10# MARK 4 |
1 | ||
| 44325-12130 |
CE100,EE10# MARK 2 |
1 | ||
| 44325-12110 |
CE100,EE10# NO MARK |
1 | ||
| 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CE100,EE10# L=28,OD=4.0 |
1 | ||
| 90250-04049 |
CE100,EE10# L=43,OD=4.0 |
1 | ||
| 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CE100,EE10# L=28,OD=4.0 |
1 | ||
| 90250-04049 |
CE100,EE10# L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12131 |
CE100 MARK A |
1 | ||
| 44330-12161 |
CE100 MARK D |
1 | ||
| 44330-12181 |
CE100 MARK F |
1 | ||
| 44330-12151 |
CE100 MARK C |
1 | ||
| 44330-12171 |
CE100 MARK E |
1 | ||
| 44330-12141 |
CE100 MARK B |
1 | ||
| 44330-20120 |
CE100 MARK F |
1 | ||
| 44330-20070 |
CE100 MARK A |
1 | ||
| 44330-20080 |
CE100 MARK B |
1 | ||
| 44330-20110 |
CE100 MARK E |
1 | ||
| 44330-20100 |
CE100 MARK D |
1 | ||
| 44330-20090 |
CE100 MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CE100,EE10# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
CE100 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12091 |
CE100 |
1 | ||
| 44337-12090 |
CE100 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
CE100,EE10# |
1 | ||
| 90301-11016 |
AE101,CE100,EE101 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
AE101,CE100,EE101 ID=19.2,OD=22.3 |
1 | ||
| 90301-19003 |
AE10#,CE100,EE10# ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
CE100,EE10# |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
CE100,EE10# OUTER |
1 | ||
| 90301-25001 |
CE100,EE10# INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
CE100,EE10# OUTER |
1 | ||
| 90301-25001 |
CE100,EE10# INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
CE100,EE10# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
CE100,EE10# |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
CE100 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
CE100 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
CE100,EE10# L=14.997 |
10 | ||
| 44345-12020 |
CE100,EE10# L=14.995 |
10 | ||
| 44345-12030 |
CE100,EE10# L=14.993 |
10 | ||
| 44345-12050 |
CE100,EE10# L=14.989 |
10 | ||
| 44345-12040 |
CE100,EE10# L=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-12050 |
CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08035 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 91651-60610 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 4503 | ||||
