CDE110R-AGMDYW (2000)

Toyota Corolla Hb/Lb

Production Aug 2000 - Jul 2001
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

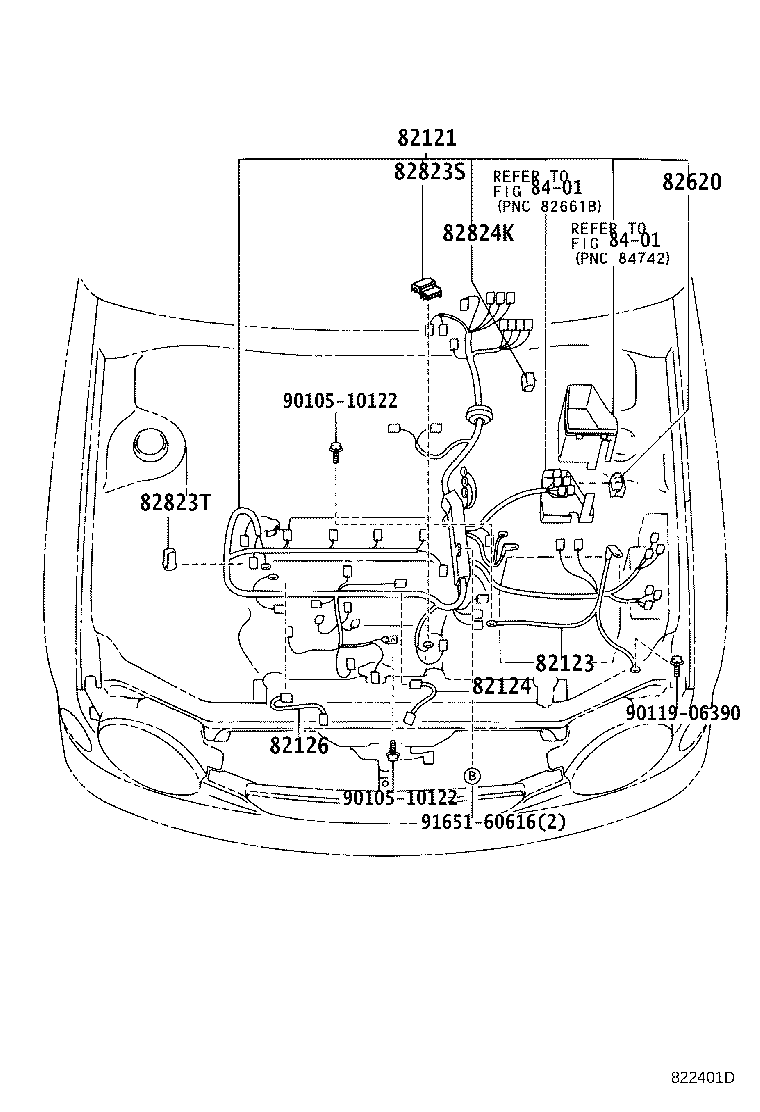

ILLUST NO. 1 OF 7(0008- )CDE110..RHD

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82124 82126 82620 82823S 82823T 82824K 8401 8401 9010510122 9010510122 9011906390 9165160616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-1T620

CDE110..RHD

 1
Common parts
90105-10122
90119-06390
91651-60616
Linked diagrams
8401
