CDE110R-AGMDYW (2000)

Toyota Corolla Hb/Lb

Production Aug 2000 - Jul 2001
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )CDE110..RHD

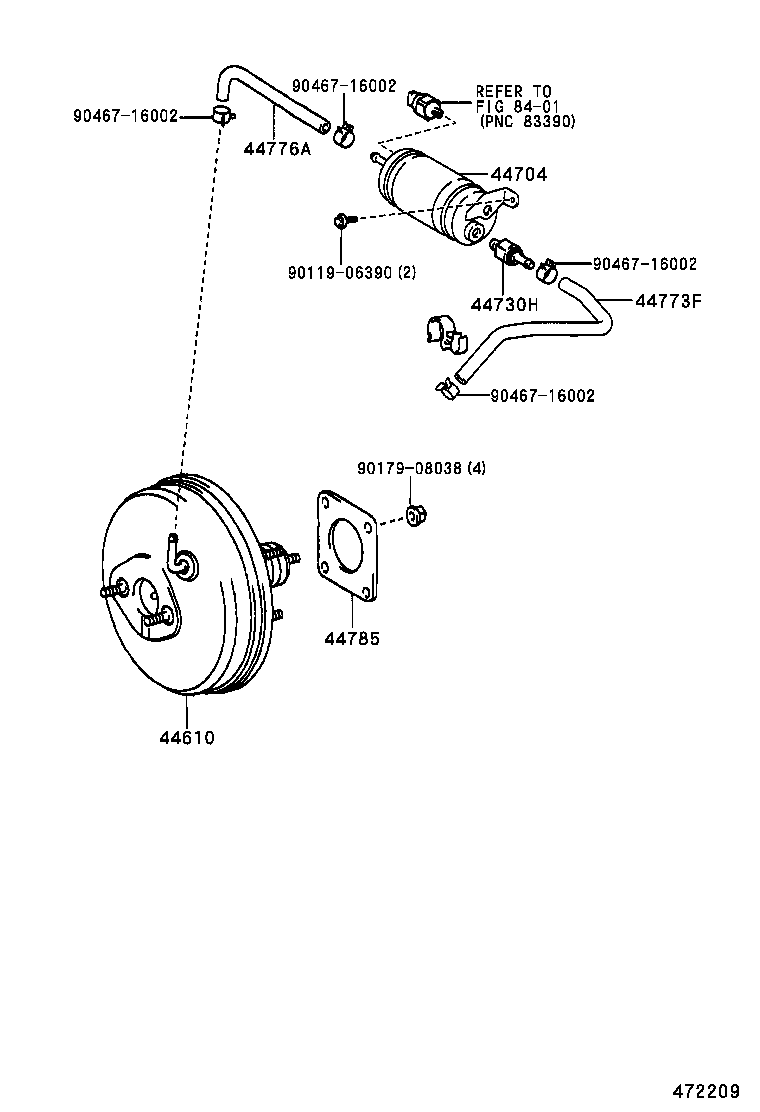

Click highlighted areas on diagram

diagram 44610 44704 44730H 44773F 44776A 44785 8401 9011906390 9017908038 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-12120

CDE110..RHD

 1
Common parts
90119-06390
90179-08038
90467-16002
Linked diagrams
8401
