CDE110R-AGMDYW (2000)

Toyota Corolla Hb/Lb

Production Aug 2000 - Jul 2001
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )CDE110..RHD

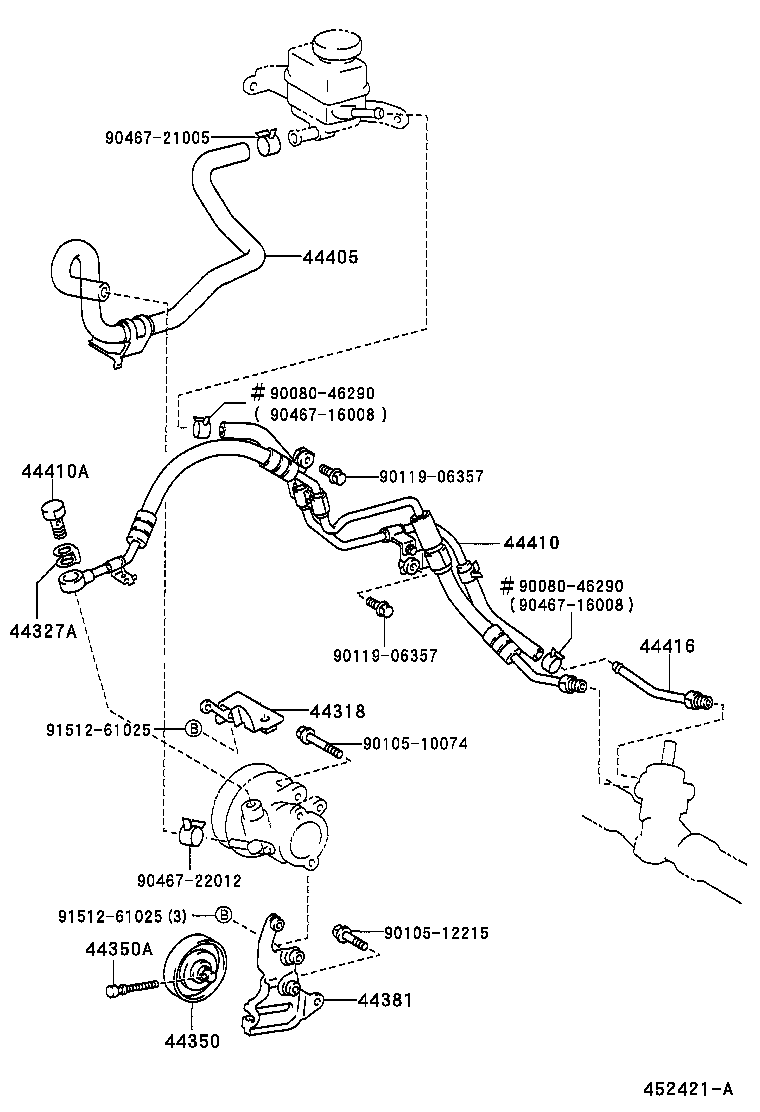

Click highlighted areas on diagram

diagram 44318 44327A 44350 44350A 44381 44405 44410 44410A 44416 9008046290 9008046290 9010510074 9010512215 9011906357 9011906357 9046716008 9046716008 9046721005 9046722012 9151261025 9151261025
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44040-12240

CDE110..RHD

 1
Common parts
90080-46290
90105-10074
90105-12215
90119-06357
90467-16008
90467-21005
90467-22012
91512-61025
