CDE110R-AGMDYW (2000)

Toyota Corolla Hb/Lb

Production Aug 2000 - Jul 2001
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0008- )CDE110

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31356F 31356J 31359 31453A 31453B 31453B 31453B 55107A 55107A 9011906421 9046816142 9165160816 9411051000 9451201000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-12030

CDE110..RHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-26023

CDE110..RHD

 1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356-12010

CDE110..RHD

 1
31359 - PIN, CLUTCH PEDAL OVER CENTER SPRING
31359-12010

CDE110..RHD

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12180

CDE110..RHD

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12180

CDE110..RHD

 1
Common parts
90119-06421
90468-16142
91651-60816
94110-51000
94512-01000
96160-00600

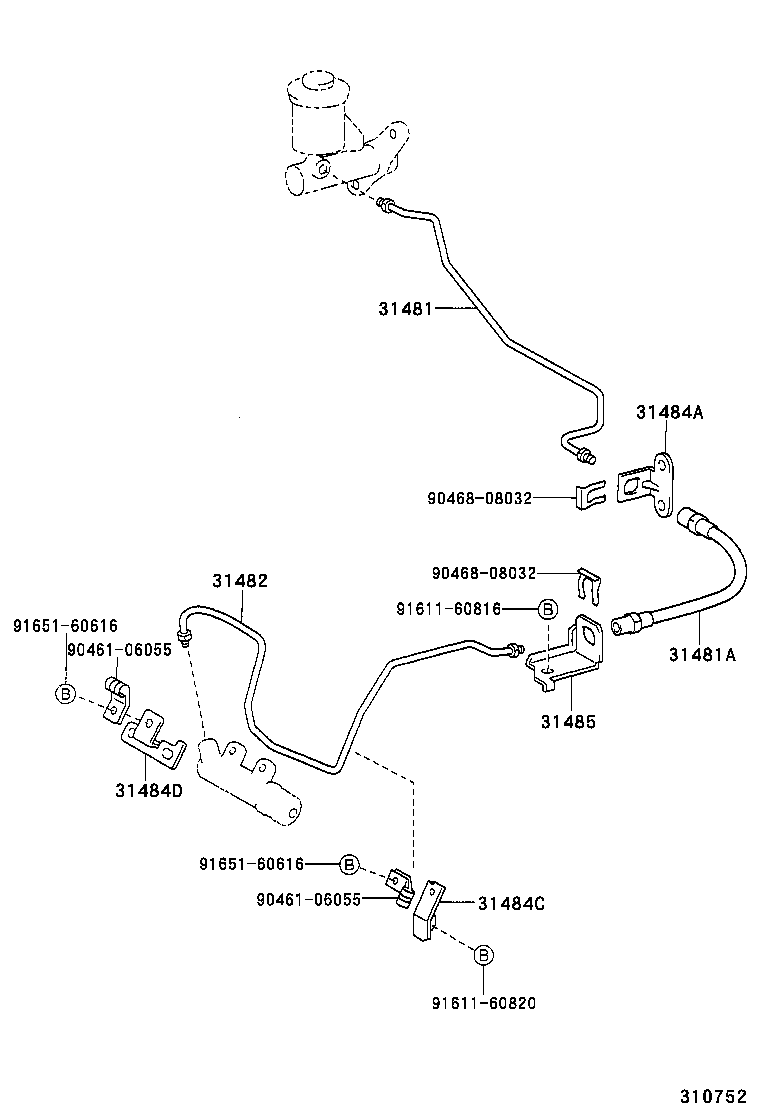

ILLUST NO. 2 OF 2(0008- )CDE110..RHD

Click highlighted areas on diagram

diagram 31481 31481A 31482 31484A 31484C 31484D 31485 9046106055 9046106055 9046808032 9046808032 9161160816 9161160820 9165160616 9165160616
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12210

CDE110..RHD

 1
31481A - HOSE, CLUTCH, NO.1
90931-01124

CDE110..RHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20570

CDE110..RHD

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-20460

CDE110..RHD

 1
Common parts
90461-06055
90468-08032
91611-60816
91611-60820
91651-60616
