CDE110L-AGMDYW (2000)
Toyota Corolla Hb/Lb
Production
Aug 2000
-
Jul 2001
Engine
1CDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )1CDFTV

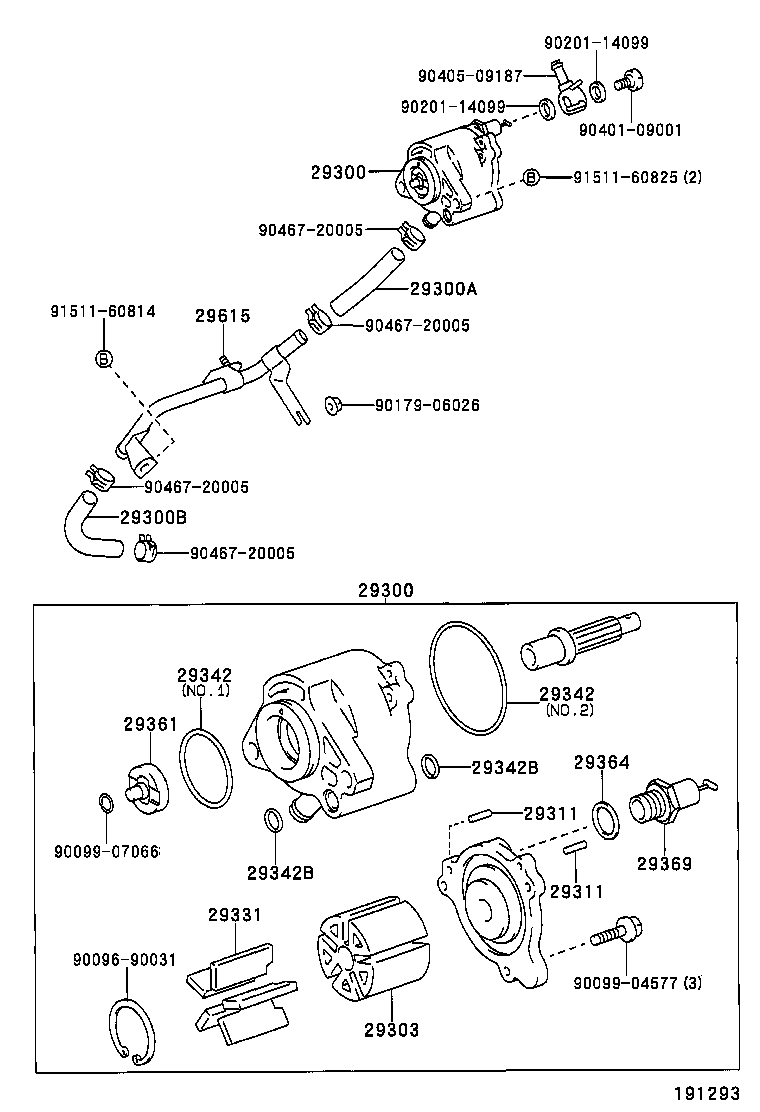

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90096-90031 | ||||
| 90099-04577 | ||||
| 90099-07066 | ||||
| 90179-06026 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90405-09187 | ||||
| 90467-20005 | ||||
| 91511-60814 | ||||
| 91511-60825 | ||||
