CDE110L-AGMDYW (2000)

Toyota Corolla Hb/Lb

Production Aug 2000 - Jul 2001
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

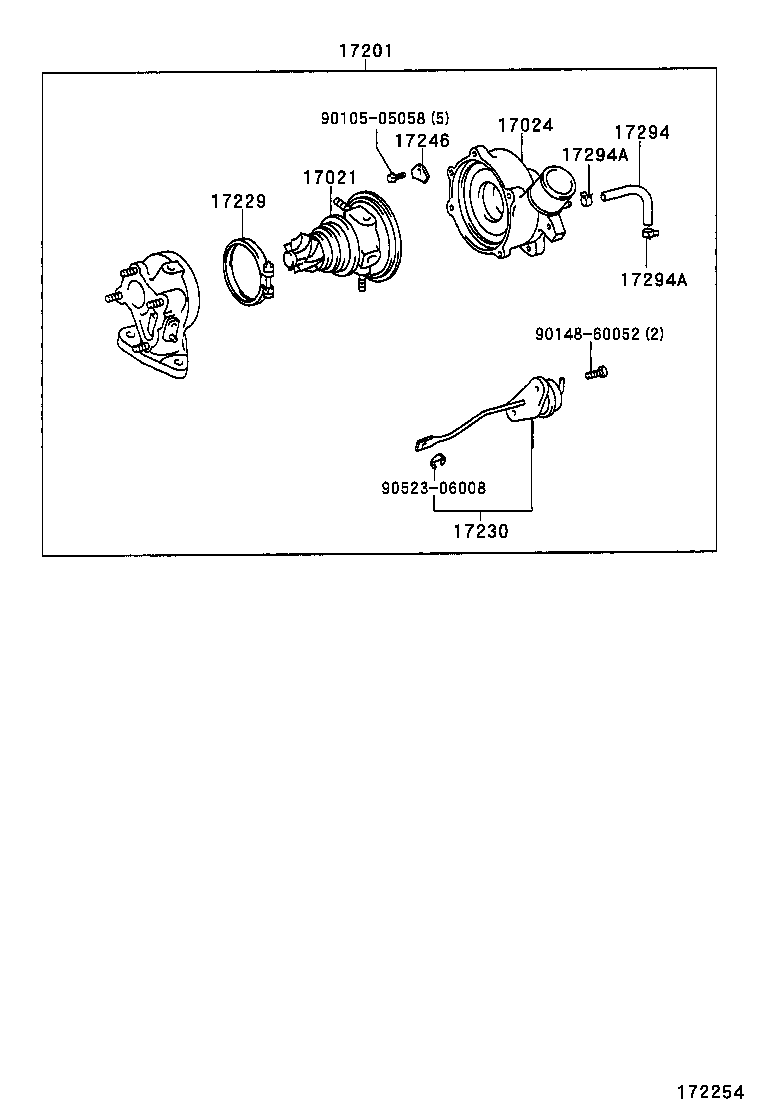

ILLUST NO. 2 OF 2(0008- )1CDFTV

Click highlighted areas on diagram

diagram 17021 17024 17201 17229 17230 17246 17294 17294A 17294A 9010505058 9014860052 9052306008
Part # Description Qty Price
Common parts
90105-05058
90148-60052
90523-06008

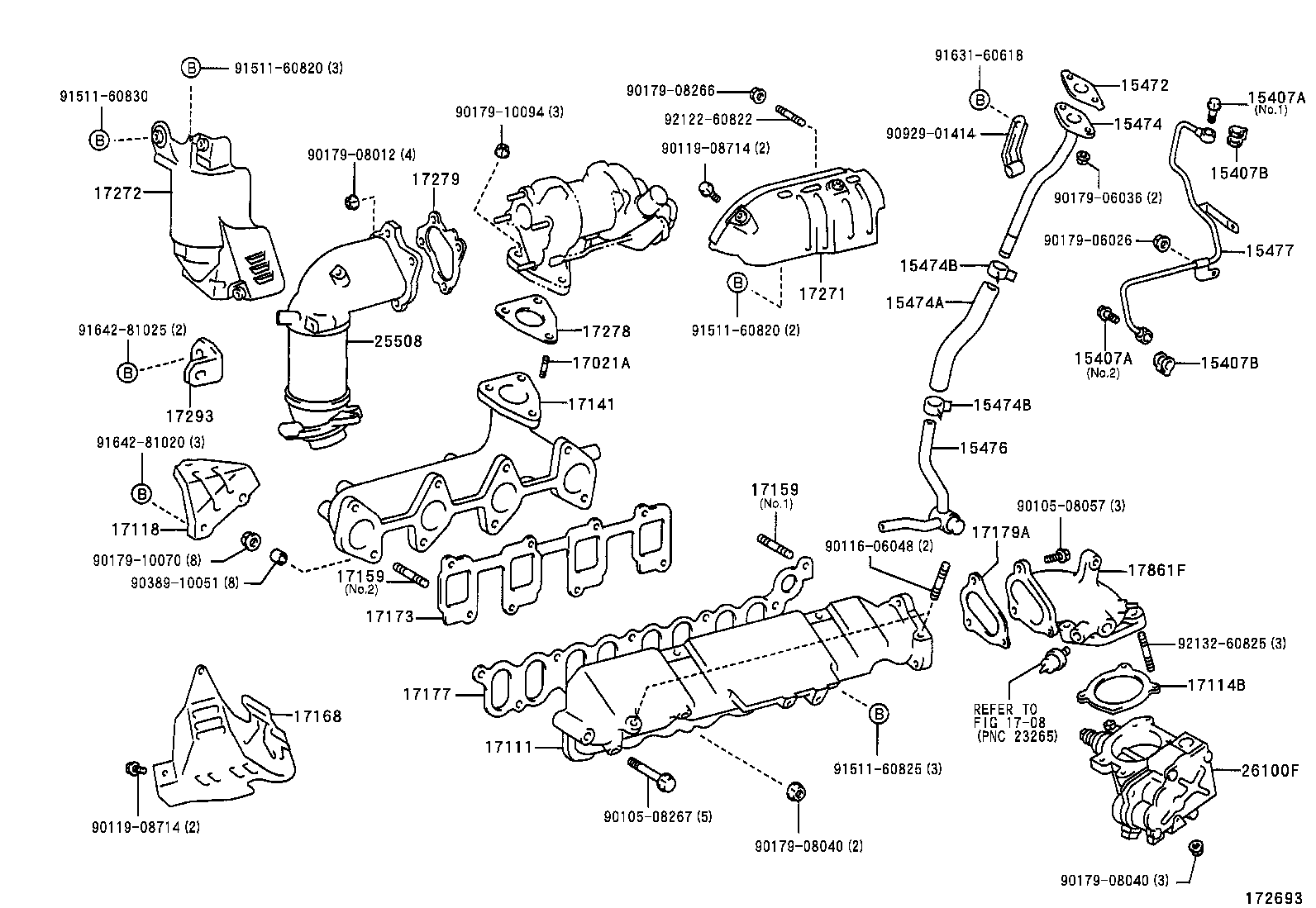

ILLUST NO. 1 OF 2(0008- )1CDFTV

Click highlighted areas on diagram

diagram 15407A 15407A 15407B 15407B 15472 15474 15474A 15474B 15474B 15476 15477 17021A 1708 17111 17114B 17118 17141 17159 17159 17168 17173 17177 17179A 17271 17272 17278 17279 17293 17861F 25508 26100F 9010508057 9010508267 9011606048 9011908714 9011908714 9017906026 9017906036 9017908012 9017908040 9017908040 9017908266 9017910070 9017910094 9038910051 9092901414 9151160820 9151160820 9151160825 9151160830 9163160618 9164281020 9164281025 9212260822 9213260825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-27010

1CDFTV..CDE110

 1
26100F - SHUTTER ASSY, INTAKE
26100-27010

1CDFTV..CDE110

 1
Common parts
90105-08057
90105-08267
90116-06048
90119-08714
90179-06026
90179-06036
90179-08012
90179-08040
90179-08266
90179-10070
90179-10094
90389-10051
90929-01414
91511-60820
91511-60825
91511-60830
91631-60618
91642-81020
91642-81025
92122-60822
92132-60825
Linked diagrams
1708
