CDE110L-AGMDYW (2000)

Toyota Corolla Hb/Lb

Production Aug 2000 - Jul 2001
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1CDFTV

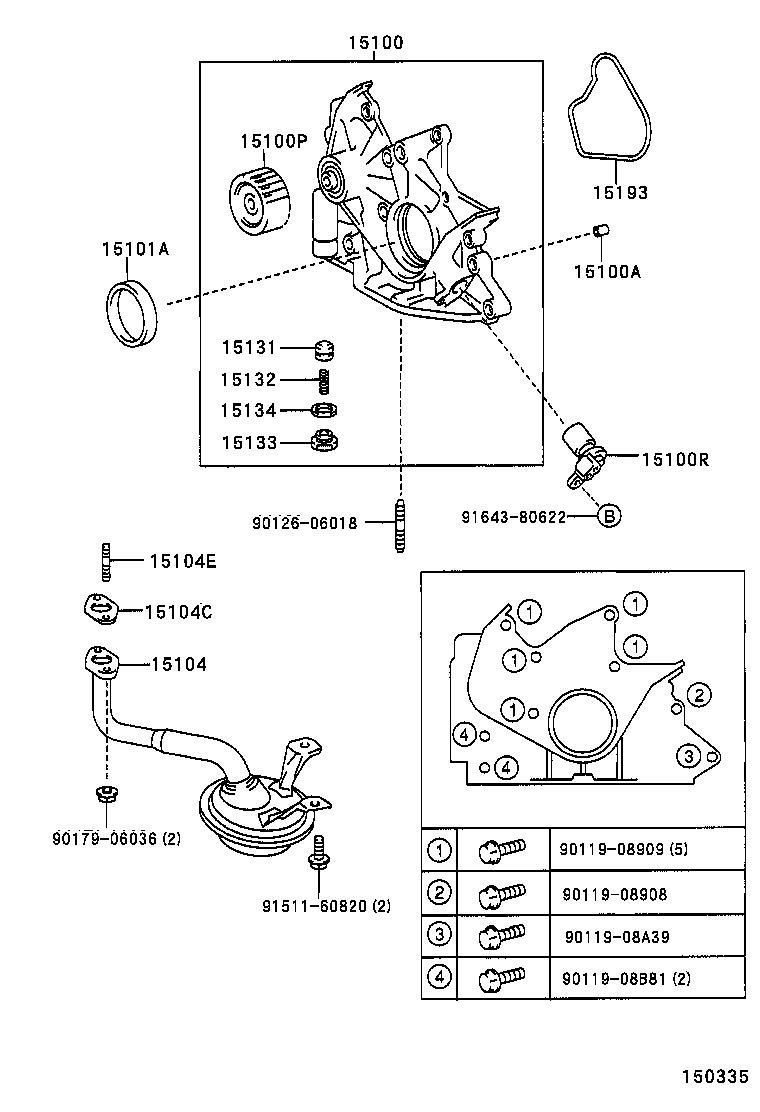

Click highlighted areas on diagram

diagram 15100 15100A 15100P 15100R 15101A 15104 15104C 15104E 15131 15132 15133 15134 15193 9011908908 9011908909 9011908A39 9011908B81 9012606018 9017906036 9151160820 9164380622
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-27010

1CDFTV..CDE110

 1
Common parts
90119-08908
90119-08909
90119-08A39
90119-08B81
90126-06018
90179-06036
91511-60820
91643-80622
