AE111R-DLPNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )UKP

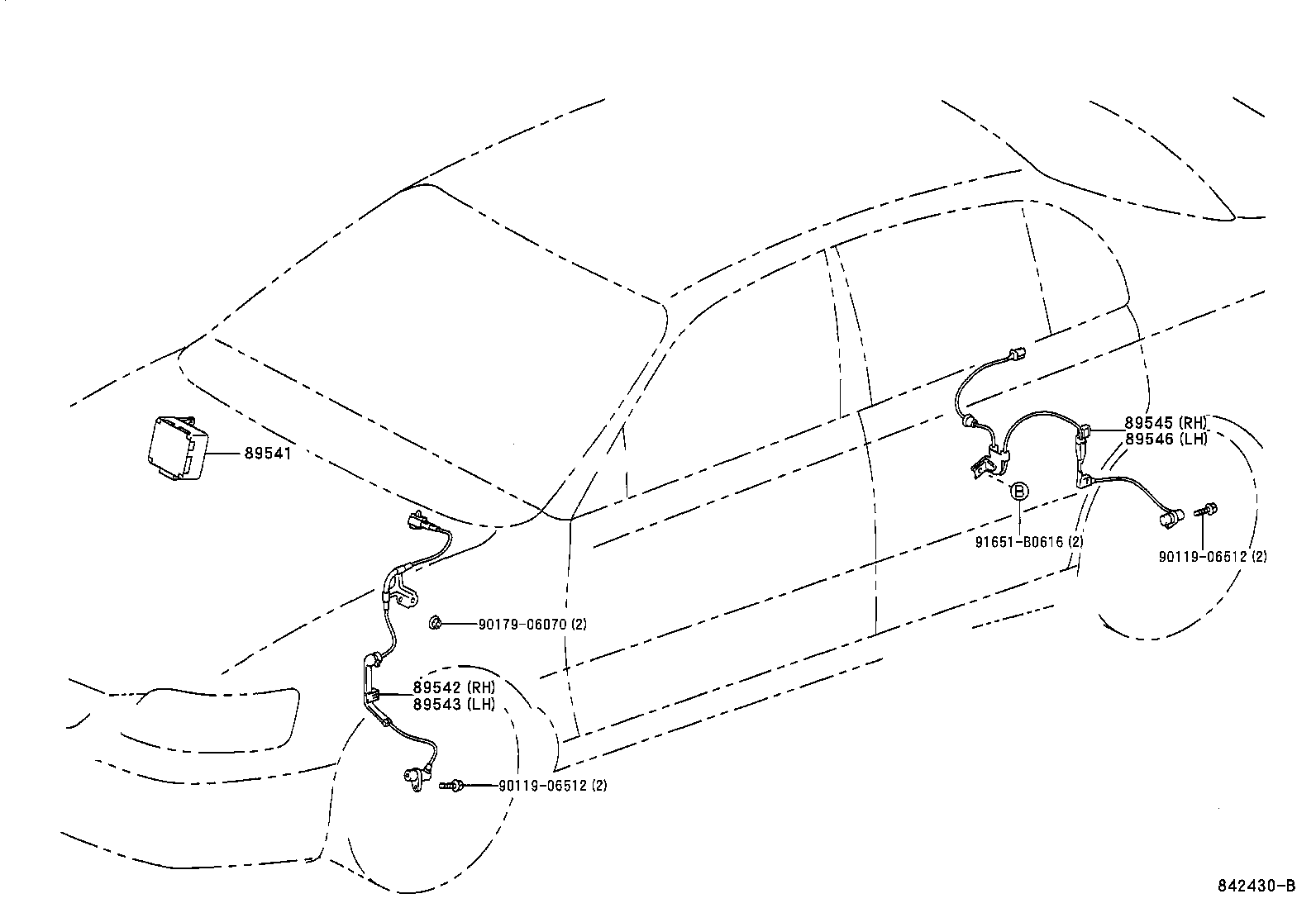

Click highlighted areas on diagram

diagram 89541 89542 89543 89545 89546 9011906512 9011906512 9017906070 91651B0616
Part # Description Qty Price
89541 - COMPUTER, SKID CONTROL
89541-02010

AE111,EE111..UKP

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12060

AE111,EE111..UKP

(J)

 1
89542-02020

AE111,EE111..UKP

(L)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12060

AE111,EE111..UKP

(J)

 1
89543-02020

AE111,EE111..UKP

(L)

 1
89545 - SENSOR, SPEED, REAR RH
89545-12040

AE111,EE111..UKP

(J)

 1
89545-02010

AE111,EE111..UKP

(L)

 1
89546 - SENSOR, SPEED, REAR LH
89546-02010

AE111,EE111..UKP

(L)

 1
89546-12040

AE111,EE111..UKP

(J)

 1
Common parts
90119-06512
90179-06070
91651-B0616
