AE111R-DLMNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-9911)UKP..RHD

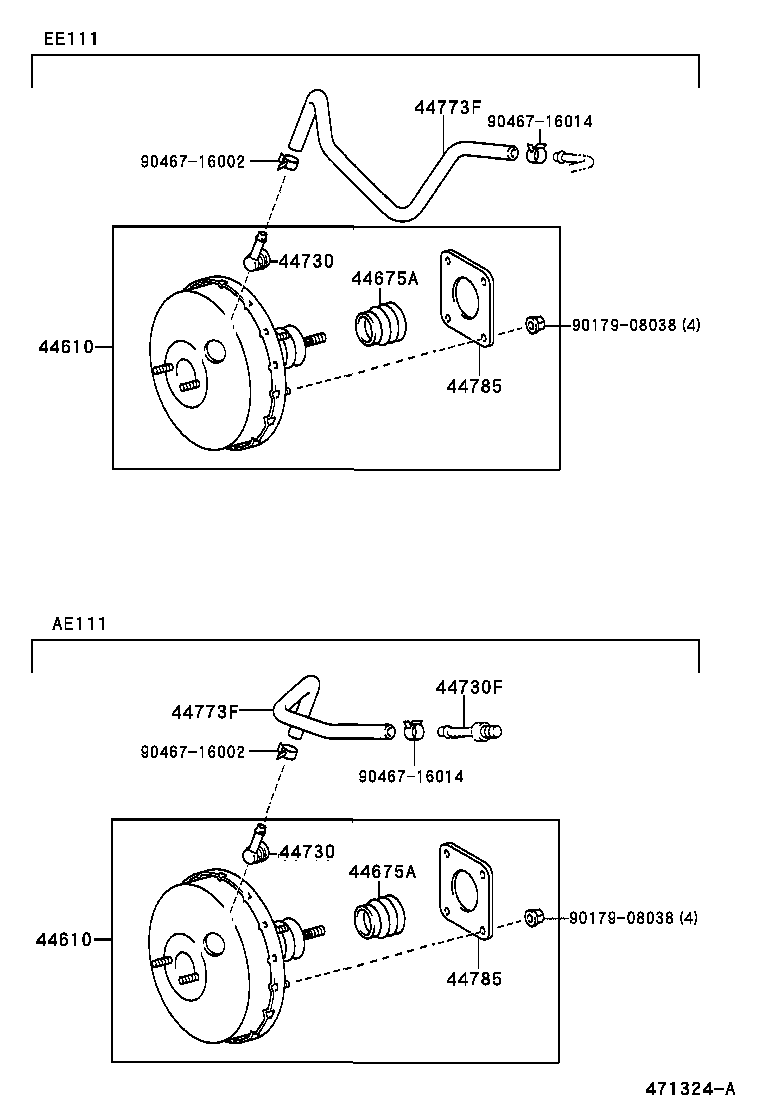

Click highlighted areas on diagram

diagram 44610 44610 44675A 44675A 44730 44730 44730F 44773F 44773F 44785 44785 9017908038 9017908038 9046716002 9046716002 9046716014 9046716014
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02040

AE111,EE111..UKP..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-02040

AE111,EE111..UKP..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AE111..UKP

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12660

AE111..UKP..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12660

AE111..UKP..RHD

 1
Common parts
90179-08038
90467-16002
90467-16014
