AE111R-DLMDKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )4AFE,4EFE,3ZZFE,4ZZFE..UKP

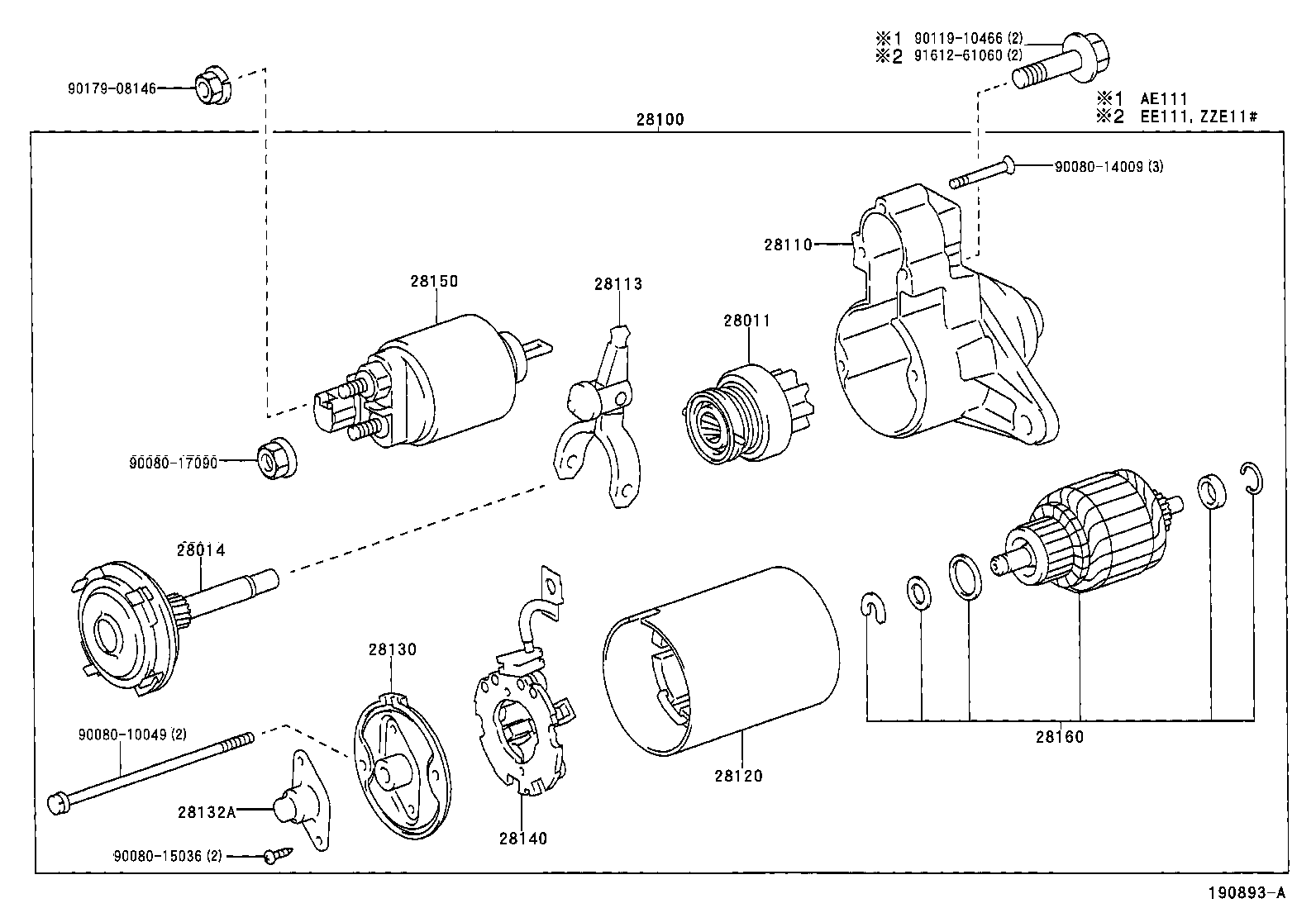

Click highlighted areas on diagram

12V 1.1KW

diagram 28011 28014 28100 28110 28113 28120 28130 28132A 28140 28150 28160 9008010049 9008014009 9008015036 9008017090 9011910466 9017908146 9161261060
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-02010

4AFE,4EFE..AE111,EE111..UKP

 1
28100 - STARTER ASSY
28100-02080

4AFE..AE111..UKP

12V 1.1KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-02080

4AFE..AE111..UKP

 1
28113 - LEVER, STARTER PINION DRIVE
28113-02010

4AFE,4EFE..AE111,EE111..UKP

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-02080

4AFE,4EFE..AE111,EE111..UKP

 1
Common parts
90080-10049
90080-14009
90080-15036
90080-17090
90119-10466
90179-08146
91612-61060
